Impact Wrench, 1/2 in. square drive, 780 ft lbs, Hog Ring
The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135TiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFWarrantyOpen
- JPGInfographicsOpen
- TIFFEnvironmentOpen
- PDFIngersoll Rand 2135QXPA Series Air Impact Wrench Product Information (PDF)Open
- PDFIngersoll Rand 2135QXPA Series Air Impact Wrench Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Impact Wrench Safety Information (PDF)Open
- PDFIngersoll Rand 2135QXPA Series Air Impact Wrench Flyer (PDF)Open
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 2135-TK22135-TK2 | Tune-Up Kit$77.00 | Ingersoll Rand | 0.02 | $77.00 | 1 | View details |
 C38331-811C38331-811 | 3-piece combo FRL, 3/8'' NPT, Metal bowl w/sight glass, Automatic drain$438.30 | ARO | — | $438.30 | 1 | View details |
| C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | ARO | — | $362.70 | 1 | View details |
| C383D1-810C383D1-810 | 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80 | ARO | 4.54 | $424.80 | 1 | View details |
Details
Product information
Overview

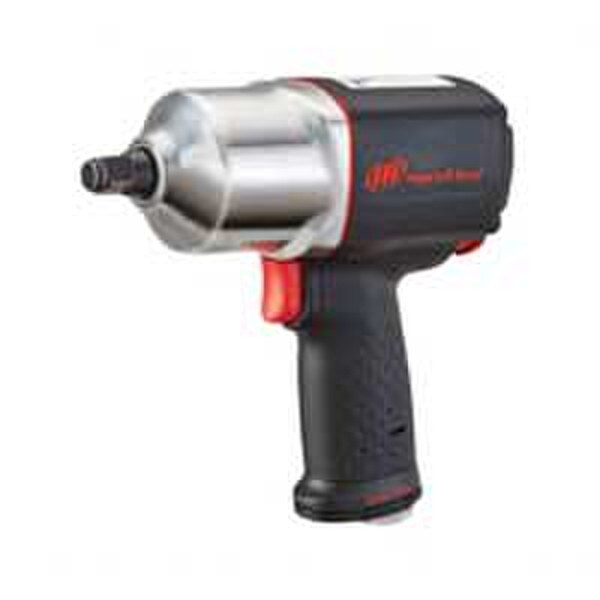

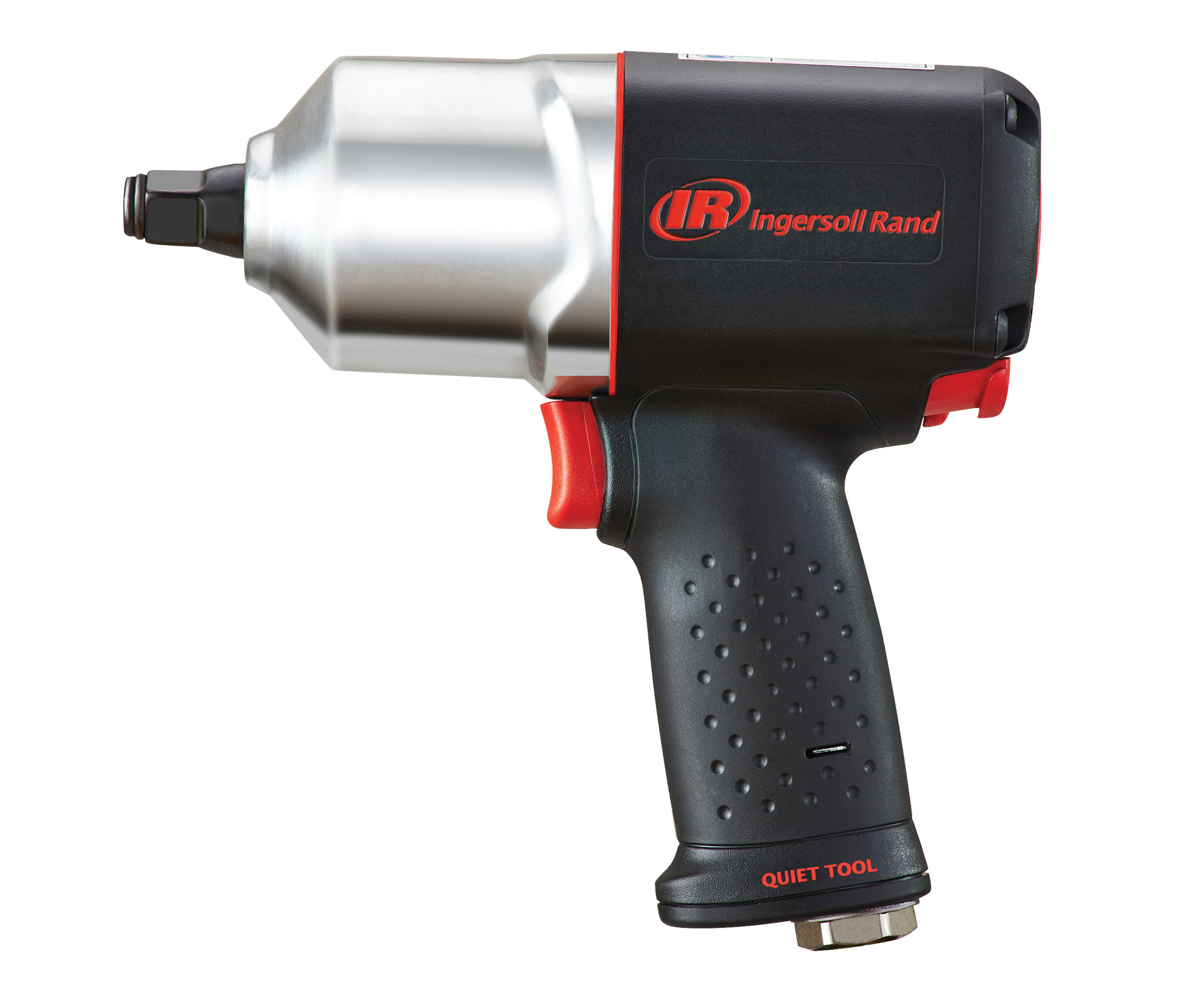

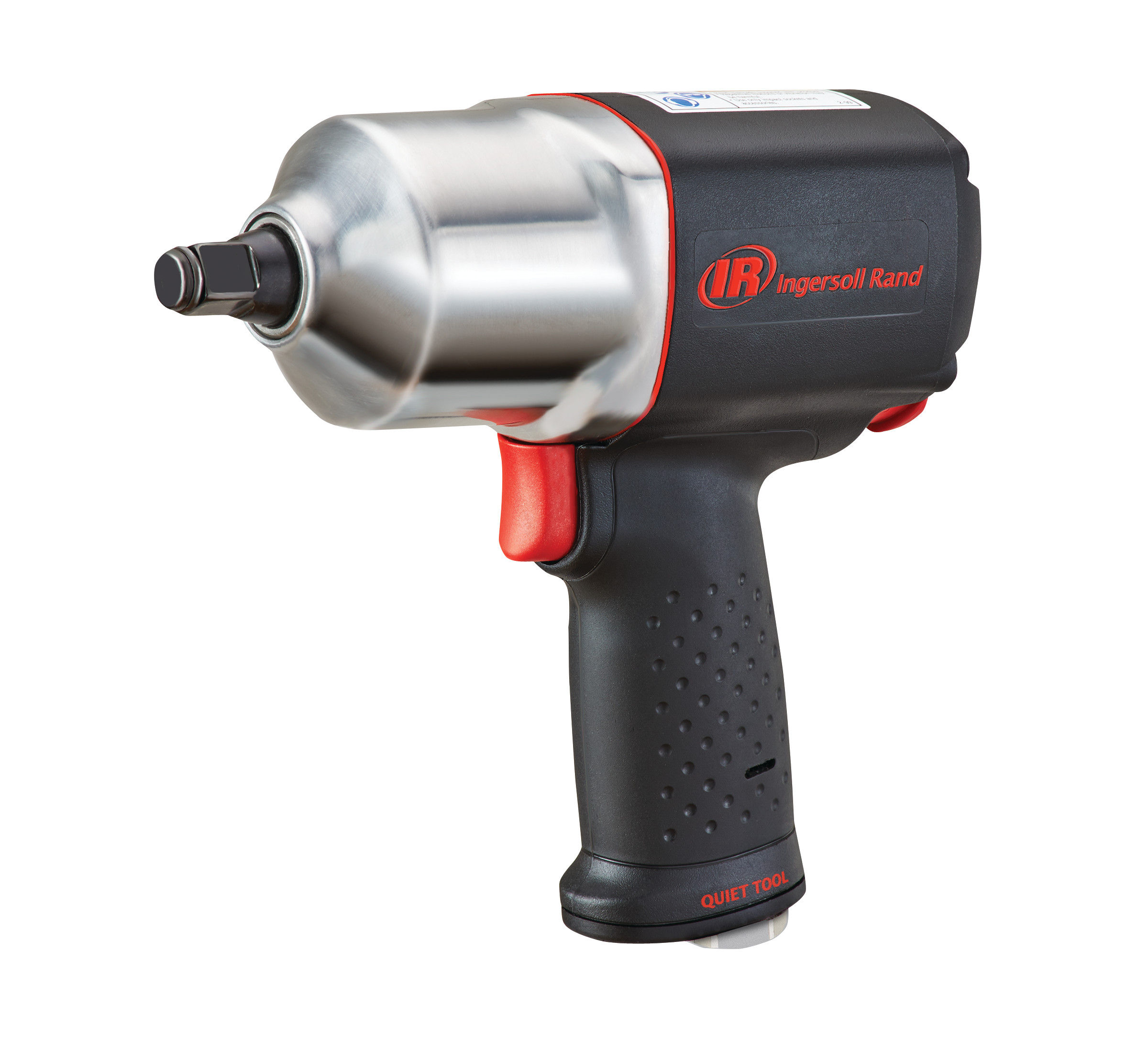

Ingersoll Rand Impact Wrench, 1/2 in. square drive, 780 ft lbs, Hog Ring
Impact Wrench, 1/2 in. square drive, 780 ft lbs, Hog Ring, model 2135QXPA by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2135QXPA by Ingersoll Rand
The 2135QXPA Impact Wrench has a 1/2 in. square drive and a free speed of 11000 rpm.
With the ability to go up to 1250 bpm, The Ingersoll Rand 2135QXPA can go up to a maximum torque of 780 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 13.3 |
| Duty Rating | General Duty |
| Air Inlet Size | 1/4" NPT |
| Min Hose Size | 3/8" |
| Air Pressure (PSI) | 90 |
| Avg Air Consumption | 5 |
| Retainer | Friction Ring |
| Drive Size | 1/2" |
| Max Torque (ft-lb) | 780 |
| Max Torque (in-lb) | 9364 |
| Max Torque (Nm) | 1058 |
| Free Speed (RPM) | 11000 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Reverse Bias |
| Breakaway Torque (ft-lb) | 1100 |
| Breakaway Torque (Nm) | 1491 |
| Weight (lbs) | 4 |
| Weight (kg) | 1.81 |
| Length (in) | 7.5 |
| Length (mm) | 191 |
| Width (in) | 2.7 |
| Width (mm) | 69 |
| Height (in) | 7.2 |
| Height (mm) | 183 |
| Color | Black |
| Handle Material | Composite |
| Configuration | Pistol Grip |
| MPN | 2135QXPA |
| Features & Benefits | |
| Hog-Ring | |
