Impact Wrench, 1/2 in. square drive, 780 ft lbs, Pin
The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135TiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFWarrantyOpen
- PDFIngersoll Rand 2135QXPA Series Air Impact Wrench Product Information (PDF)Open
- PDFIngersoll Rand 2135QXPA Series Air Impact Wrench Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Impact Wrench Safety Information (PDF)Open
- PDFIngersoll Rand 2135QXPA Series Air Impact Wrench Flyer (PDF)Open
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 2135-TK22135-TK2 | Tune-Up Kit$77.00 | Ingersoll Rand | 0.02 | $77.00 | 1 | View details |
 C38331-811C38331-811 | 3-piece combo FRL, 3/8'' NPT, Metal bowl w/sight glass, Automatic drain$438.30 | ARO | — | $438.30 | 1 | View details |
| C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | ARO | — | $362.70 | 1 | View details |
| C383D1-810C383D1-810 | 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80 | ARO | 4.54 | $424.80 | 1 | View details |
Details
Product information
Overview

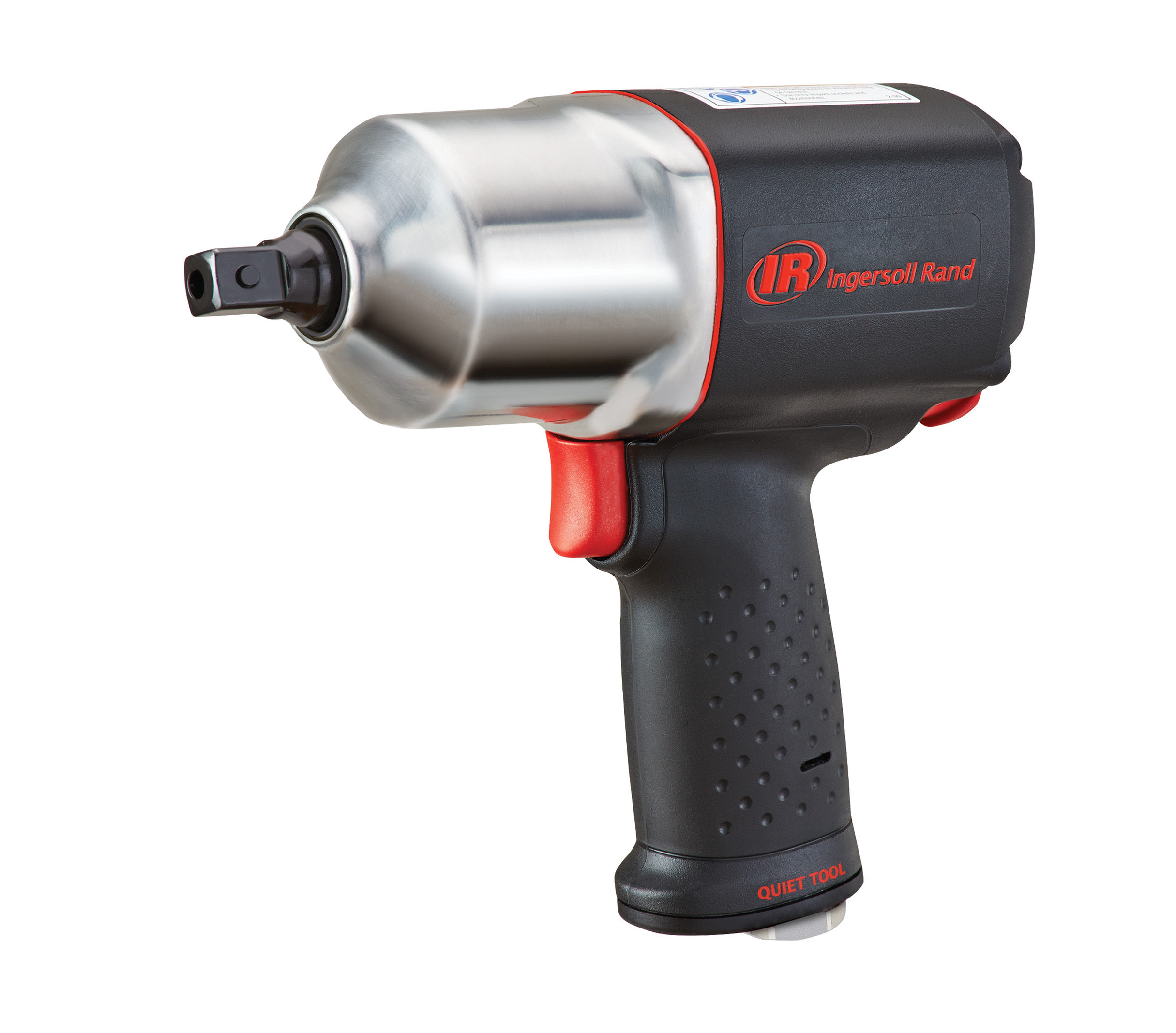

Ingersoll Rand Impact Wrench, 1/2 in. square drive, 780 ft lbs, Pin
Impact Wrench, 1/2 in. square drive, 780 ft lbs, Pin, model 2135PQXPA by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2135PQXPA by Ingersoll Rand
The 2135PQXPA Impact Wrench has a 1/2 in. square drive and a free speed of 11000 rpm.
With the ability to go up to 1250 bpm, The Ingersoll Rand 2135PQXPA can go up to a maximum torque of 780 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 13.3 |
| Air Inlet Size | 1/4" NPT |
| Min Hose Size | 3/8" |
| Air Pressure (PSI) | 90 |
| Avg Air Consumption | 5 |
| Retainer | Pin Detent |
| Drive Size | 1/2" |
| Max Torque (ft-lb) | 780 |
| Max Torque (in-lb) | 9355 |
| Max Torque (Nm) | 1057 |
| Free Speed (RPM) | 11000 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Reverse Bias |
| Vibration Uncertainty | 4.6 |
| Breakaway Torque (ft-lb) | 1100 |
| Breakaway Torque (Nm) | 1491 |
| Weight (lbs) | 4 |
| Weight (kg) | 1.81 |
| Length (in) | 7.5 |
| Length (mm) | 191 |
| Height (in) | 7.2 |
| Height (mm) | 183 |
| Color | Black |
| Handle Material | Composite |
| Configuration | Pistol Grip |
| MPN | 2135PQXPA |
| Features & Benefits | |
| Pin retainer | |
