Impact Wrench, 1/2 in. square drive, 930 ft lbs

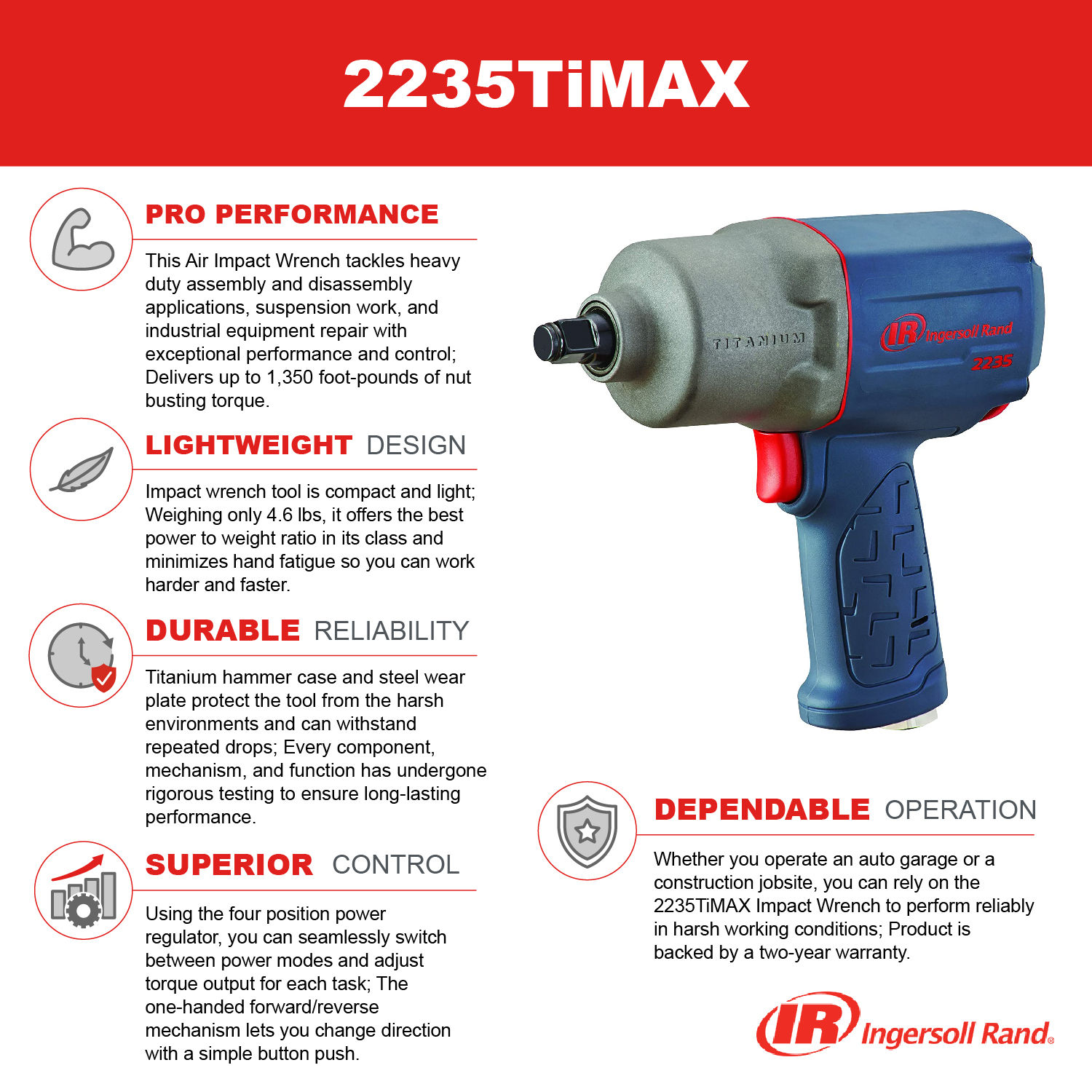

The powerful 2235TiMAX Series impact wrench is lightweight, durable and versatile. It’ll withstand anything you throw at it and still deliver the same quality output every time.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
28 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview

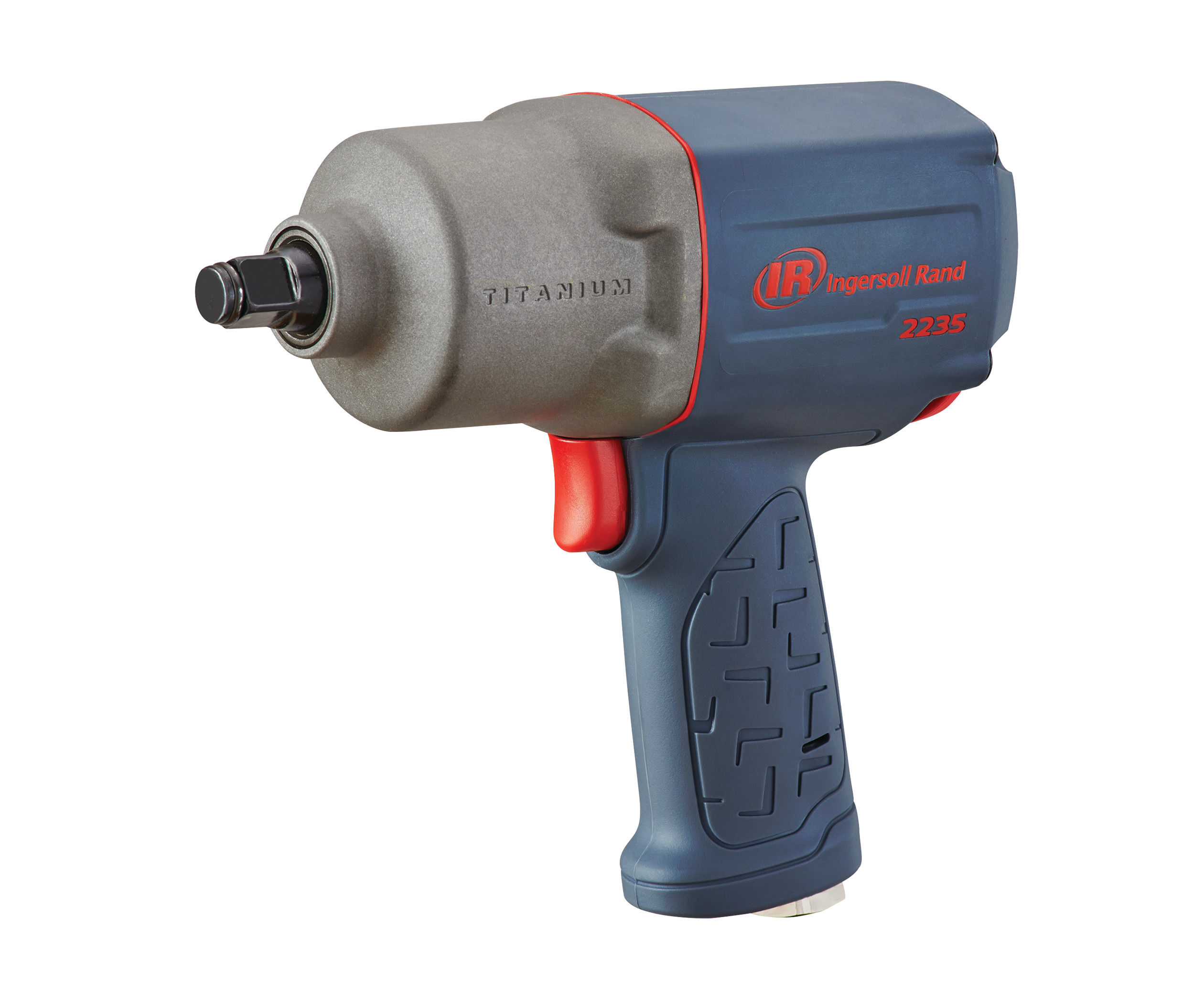

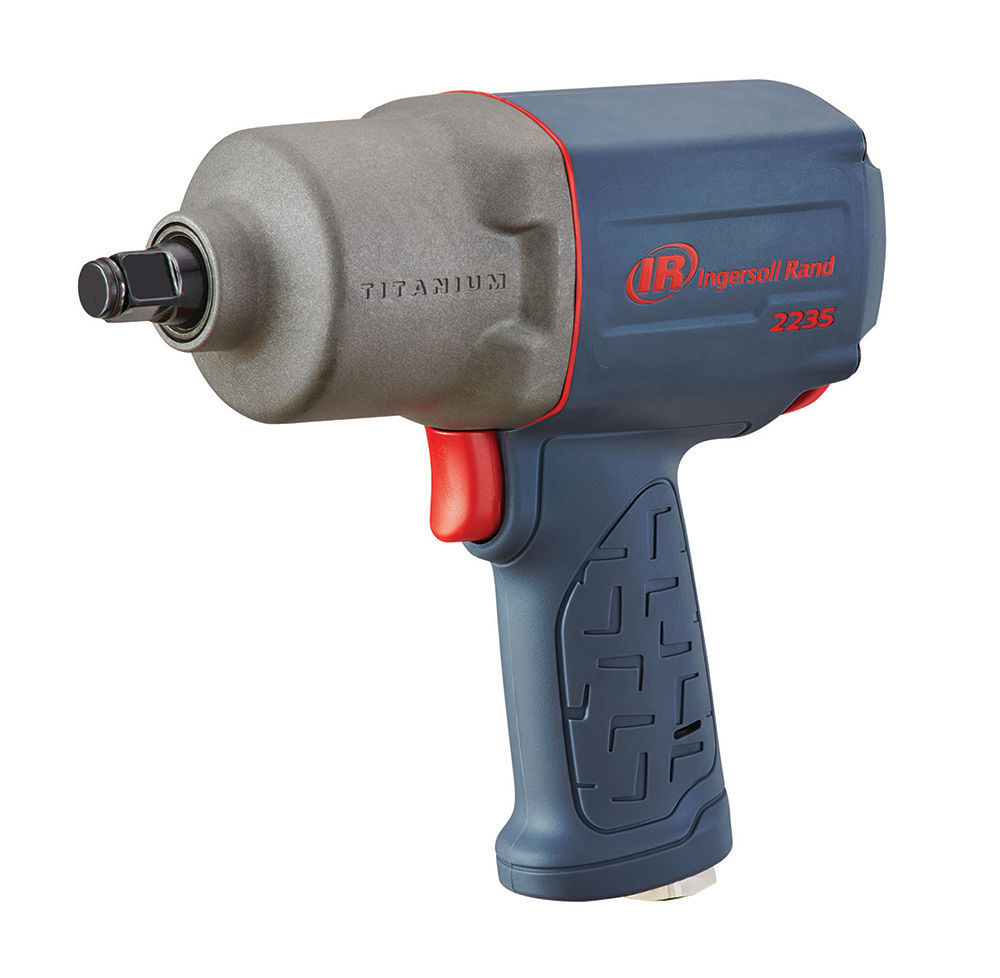

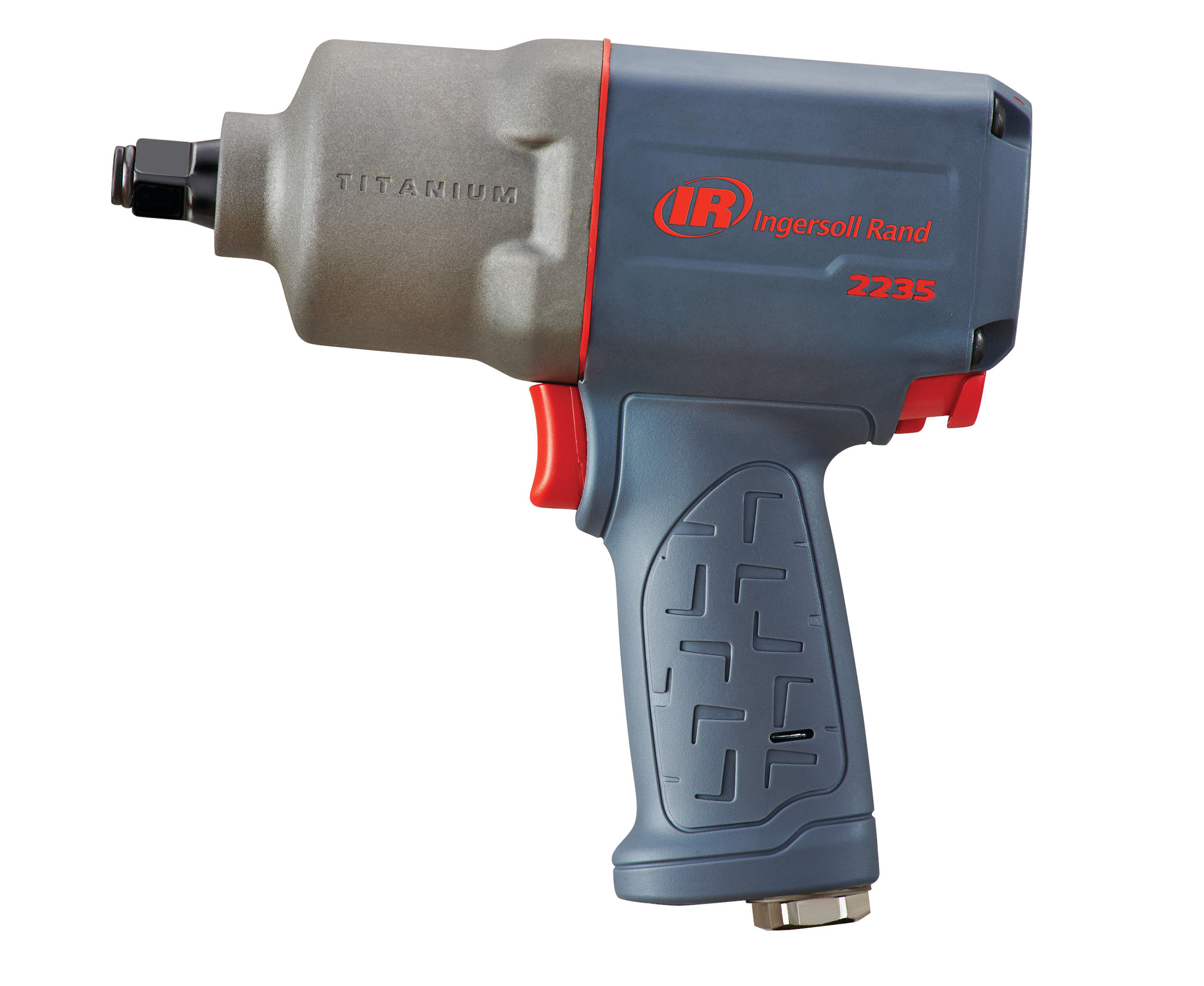

Ingersoll Rand Impact Wrench, 1/2 in. square drive, 930 ft lbs
Impact Wrench, 1/2 in. square drive, 930 ft lbs, model 2235TiMAX by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2235TiMAX by Ingersoll Rand
The 2235TiMAX Impact Wrench has a 1/2 in. square drive and a free speed of 8500 rpm.
With the ability to go up to 1220 bpm, The Ingersoll Rand 2235TiMAX can go up to a maximum torque of 930 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 9 |
| Duty Rating | Maintenance Duty |
| Air Inlet Size | 1/4" NPT |
| Min Hose Size | 3/8" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 24 |
| Avg Air Consumption | 6 |
| Retainer | Friction Ring |
| Drive Size | 1/2" |
| Max Torque (ft-lb) | 930 |
| Max Torque (in-lb) | 11161 |
| Max Torque (Nm) | 1261 |
| Free Speed (RPM) | 8500 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Reverse Bias |
| Breakaway Torque (ft-lb) | 1350 |
| Breakaway Torque (Nm) | 1830 |
| Weight (lbs) | 4.6 |
| Weight (kg) | 2.09 |
| Length (in) | 7.61 |
| Length (mm) | 193 |
| Width (in) | 2.9 |
| Width (mm) | 74 |
| Height (in) | 7.21 |
| Height (mm) | 183 |
| Housing Material | Impact and chemical-resistant composite housing and patented steel reinforced frame |
| Color | Grey |
| Handle Material | Composite |
| Configuration | Pistol Grip |
| MPN | 2235TiMAX |
| Features & Benefits | |
| 1350 ft-lb nut-busting torque | |
| Finely tuned impact mechanism and motor deliver more torque, durability, and efficiency | |
| Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction | |
| Hog-Ring | |
| Finely tuned impact mechanism and motor deliver more torque | |
| durability | |
| and efficiency | |
| Optimized for the vehicle repair industry | |
| heavy trucks | |
| tire lanes | |
| fleet maintenance | |
| body shops | |
| general industrial use | |
| MRO | |
| rail | |
| heavy machinery | |
| oil and gas | |
| shipbuilding | |
| and construction | |
