Impact Wrench, 3/4 in. square 3 in. Extended drive, 1350 ft lbs
3/4'' Impact Wrench delivers incredible performance and industrial-grade durability in an impact wrench. Plus, its efficient air motor reduces air consumption to save you money.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFFlyersOpen
- PDFWarrantyOpen
- PDFIngersoll Rand 2145QiMAX 2155QiMAX Series Air Impact Wrench Product Information (PDF)Open
- PDFIngersoll Rand 2145QiMAX 2155QiMAX Series Air Impact Wrench Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Impact Wrench Safety Information (PDF)Open
- PDFIngersoll Rand 2145QiMAX Series Air Impact Wrench Brochure (PDF)Open
Recommended Accessories
4 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | 0.27 | $9.43 | 1 | View details |
Details
Product information
Overview

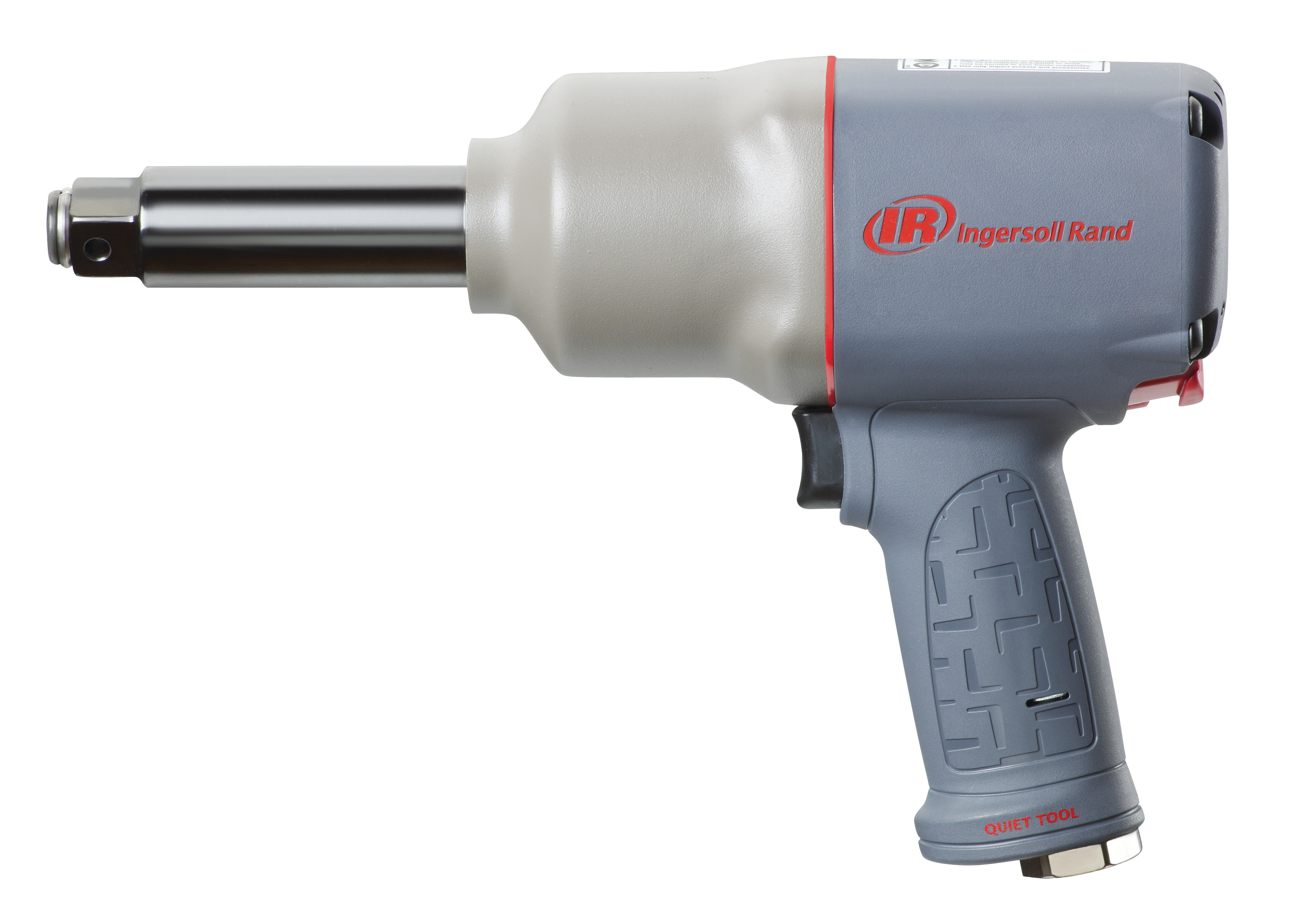

Ingersoll Rand Impact Wrench, 3/4 in. square 3 in. Extended drive, 1350 ft lbs
Impact Wrench, 3/4 in. square 3 in. Extended drive, 1350 ft lbs, model 2145QiMAX-3 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2145QiMAX-3 by Ingersoll Rand
The 2145QiMAX-3 Impact Wrench has a 3/4 in. square drive and a free speed of 7000 rpm.
With the ability to go up to 1150 bpm, The Ingersoll Rand 2145QiMAX-3 can go up to a maximum torque of 1350 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 8.1 |
| Duty Rating | Maintenance Duty |
| Air Inlet Size | 3/8" NPT |
| Min Hose Size | 1/2" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 32 |
| Avg Air Consumption | 8.5 |
| Retainer | Friction Ring and Thru-hole |
| Drive Size | 3/4" |
| Max Torque (ft-lb) | 1350 |
| Max Torque (in-lb) | 16197 |
| Max Torque (Nm) | 1830 |
| Free Speed (RPM) | 7000 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Reverse Bias |
| Breakaway Torque (ft-lb) | 1700 |
| Breakaway Torque (Nm) | 2305 |
| Weight (lbs) | 8.4 |
| Weight (kg) | 3.81 |
| Length (in) | 11.5 |
| Length (mm) | 292 |
| Width (in) | 3.3 |
| Width (mm) | 84 |
| Height (in) | 8.1 |
| Height (mm) | 206 |
| Color | Grey |
| Handle Material | Composite |
| Configuration | Pistol Grip |
| MPN | 2145QiMAX-3 |
| Features & Benefits | |
| Built to last and designed to withstand tough use in rugged environments | |
| Compact to access tight spaces | |
| Hog-Ring and Thru-Hole, 3'' extension | |
| Hog-Ring and Thru-Hole | |
| 3'' extension | |
