Impact Wrench, 3/4 in. square drive, 1050 ft lbs
The 259 Series impact wrench is great for jobs in vehicle repair and heavy truck markets. Backed by Ingersoll Rand’s strong reputation of developing industry-leading tools, the 259 Series can be counted on for durable and consistent power at a great value.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFWarrantyOpen
- JPGInfographicsOpen
- TIFFEnvironmentOpen
- PDFIngersoll Rand 259 Series Air Impact Wrench Product Information (PDF)Open
- PDFIngersoll Rand 259 Series Air Impact Wrench Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Impact Wrench Safety Information (PDF)Open
- PDFIngersoll Rand 259 Series Air Impact Wrench Brochure (PDF)Open
Recommended Accessories
6 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | ARO | — | $362.70 | 1 | View details |
| C383D1-810C383D1-810 | 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80 | ARO | 4.54 | $424.80 | 1 | View details |
Details
Product information
Overview

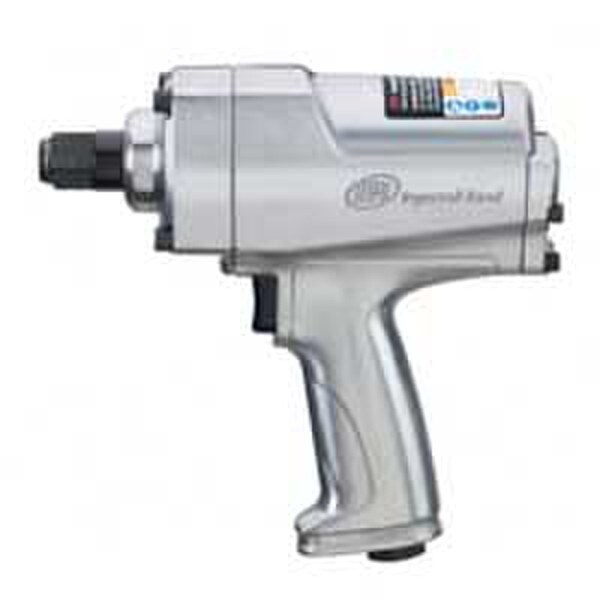

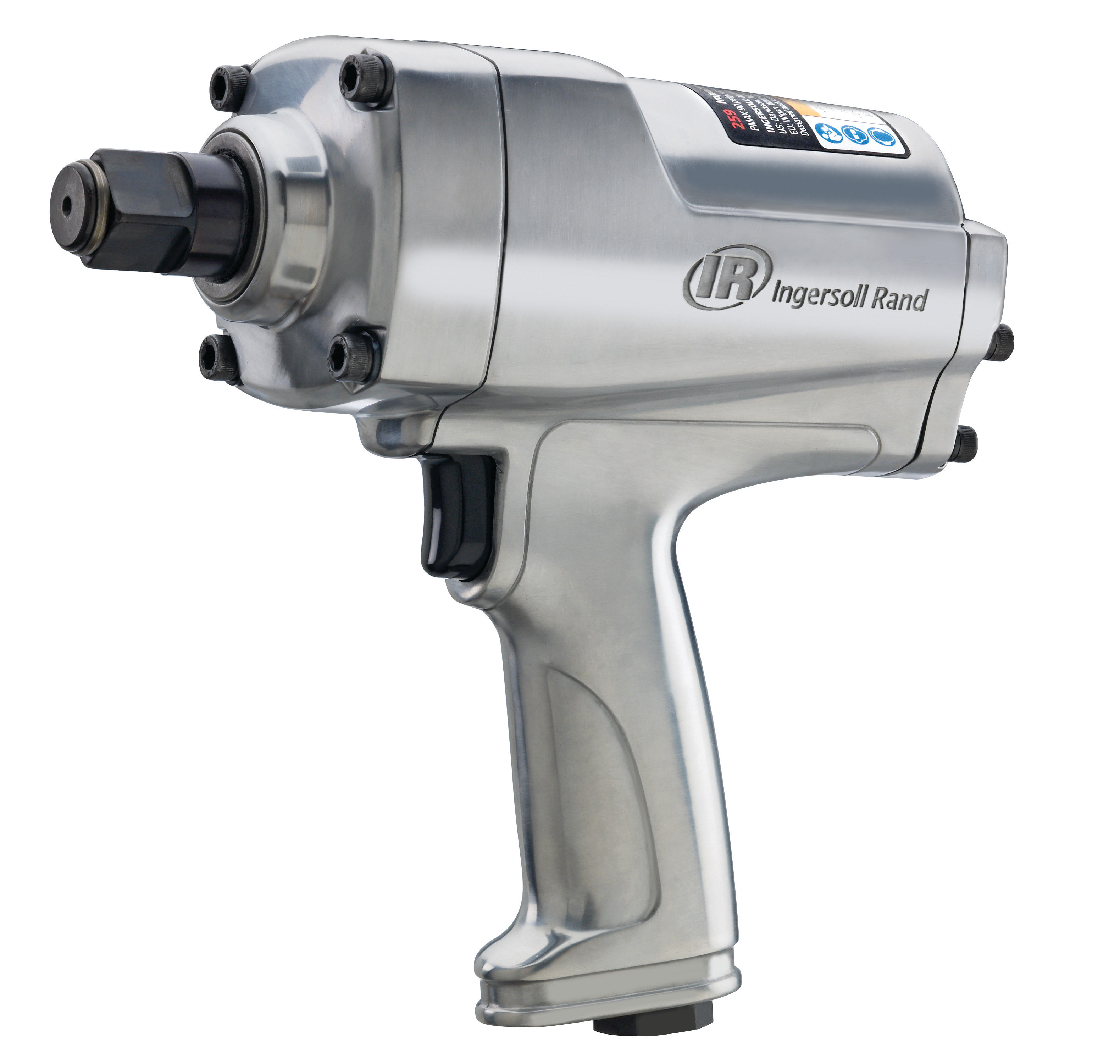

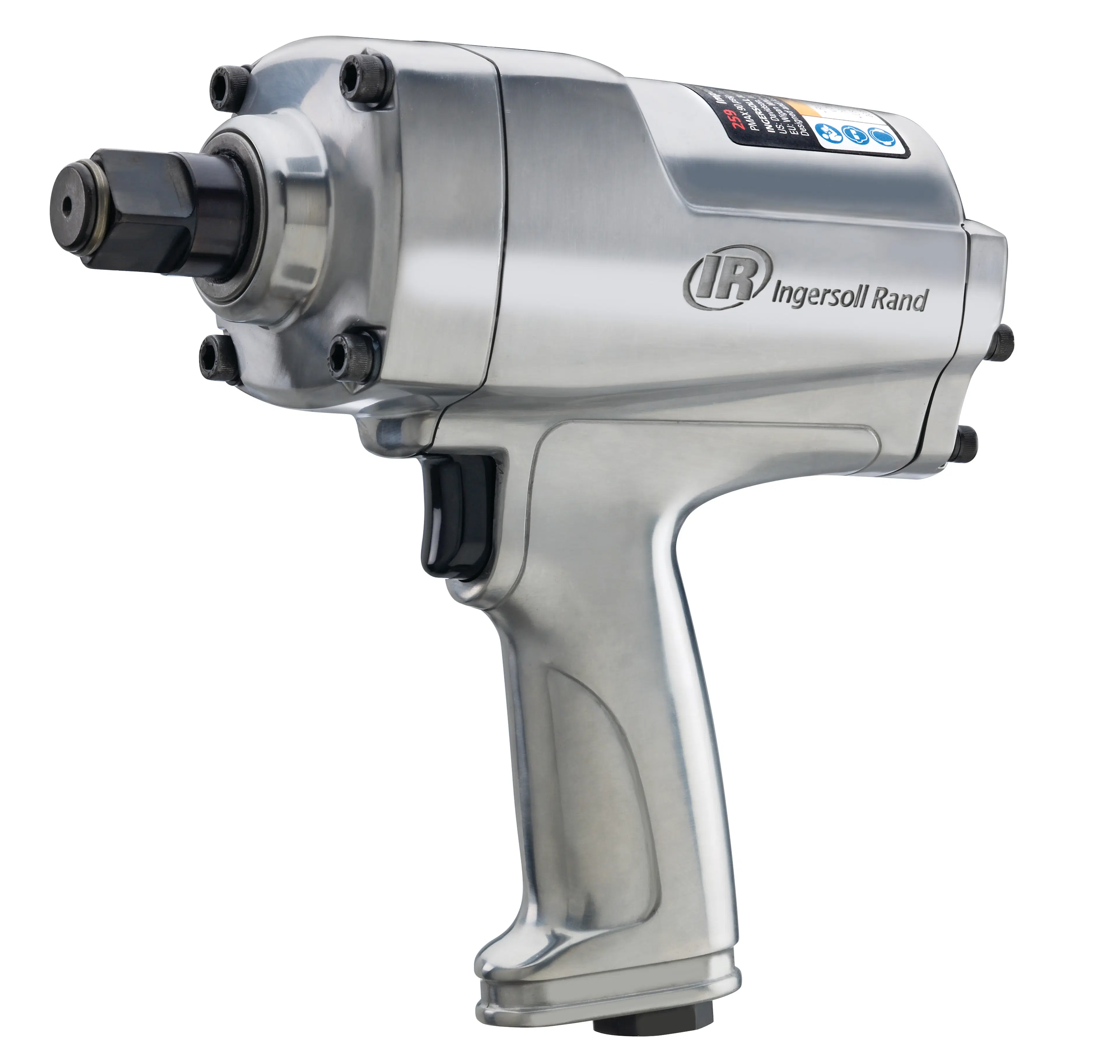

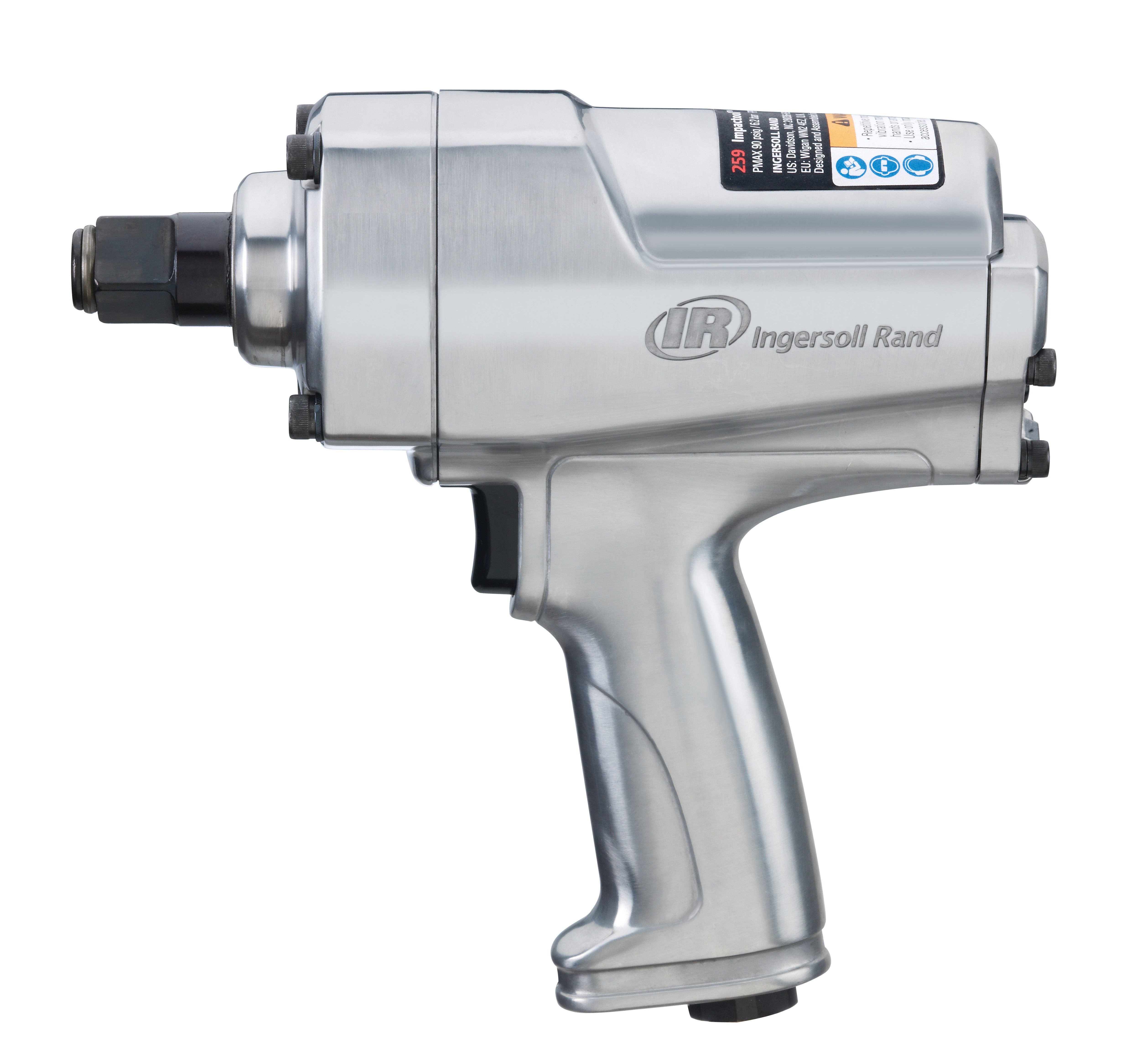

Ingersoll Rand Impact Wrench, 3/4 in. square drive, 1050 ft lbs
Impact Wrench, 3/4 in. square drive, 1050 ft lbs, model 259 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
259 by Ingersoll Rand
The 259 Impact Wrench has a 3/4 in. square drive and a free speed of 6000 rpm.
With the ability to go up to 1000 bpm, The Ingersoll Rand 259 can go up to a maximum torque of 1050 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 6.4 |
| Duty Rating | General Duty |
| Air Inlet Size | 3/8" NPT |
| Min Hose Size | 3/8" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 30 |
| Avg Air Consumption | 8 |
| Retainer | Friction Ring |
| Drive Size | 3/4" |
| Max Torque (ft-lb) | 1050 |
| Max Torque (in-lb) | 12603 |
| Max Torque (Nm) | 1424 |
| Free Speed (RPM) | 6000 |
| Drive Type | Square |
| Mechanism | Rocking Dog |
| Exhaust Direction | Bottom |
| Motor Type | Non-Biased |
| Weight (lbs) | 8.8 |
| Weight (kg) | 3.99 |
| Length (in) | 8.6 |
| Length (mm) | 218 |
| Width (in) | 3.2 |
| Width (mm) | 81 |
| Height (in) | 8.5 |
| Height (mm) | 216 |
| Housing Material | Aluminum |
| Color | Silver |
| Handle Material | Aluminum |
| Configuration | Pistol Grip |
| MPN | 259 |
| Features & Benefits | |
| Lightweight | |
| Patent-pending soft-mount system reduces vibration for extended motor and switch life | |
| Handle-vented exhaust | |
| Hog-Ring | |
