Impact Wrench, 3/4 in. square drive, 1100 ft lbs
The 2920 Series's finely tuned motor and power regulator make this wrench one to beat. Reliable, durable and variable, it can get any job done.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFWarrantyOpen
- PDFManualsOpen
- PDFIngersoll Rand 2920B Series Air Impact Wrench Product Information (PDF)Open
- PDFIngersoll Rand 2920B Series Air Impact Wrench Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Impact Wrench Safety Information (PDF)Open
- PDFIngersoll Rand 2920B Series Air Impact Wrench Maintenance Information (PDF)Open
Recommended Accessories
5 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | ARO | — | $362.70 | 1 | View details |
Details
Product information
Overview

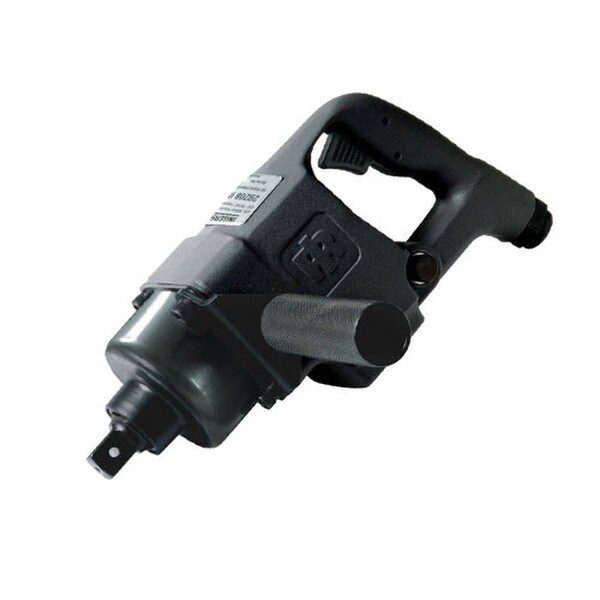

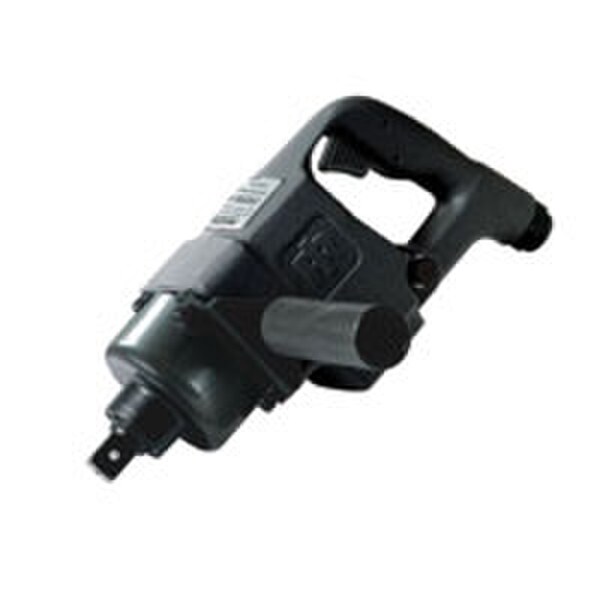

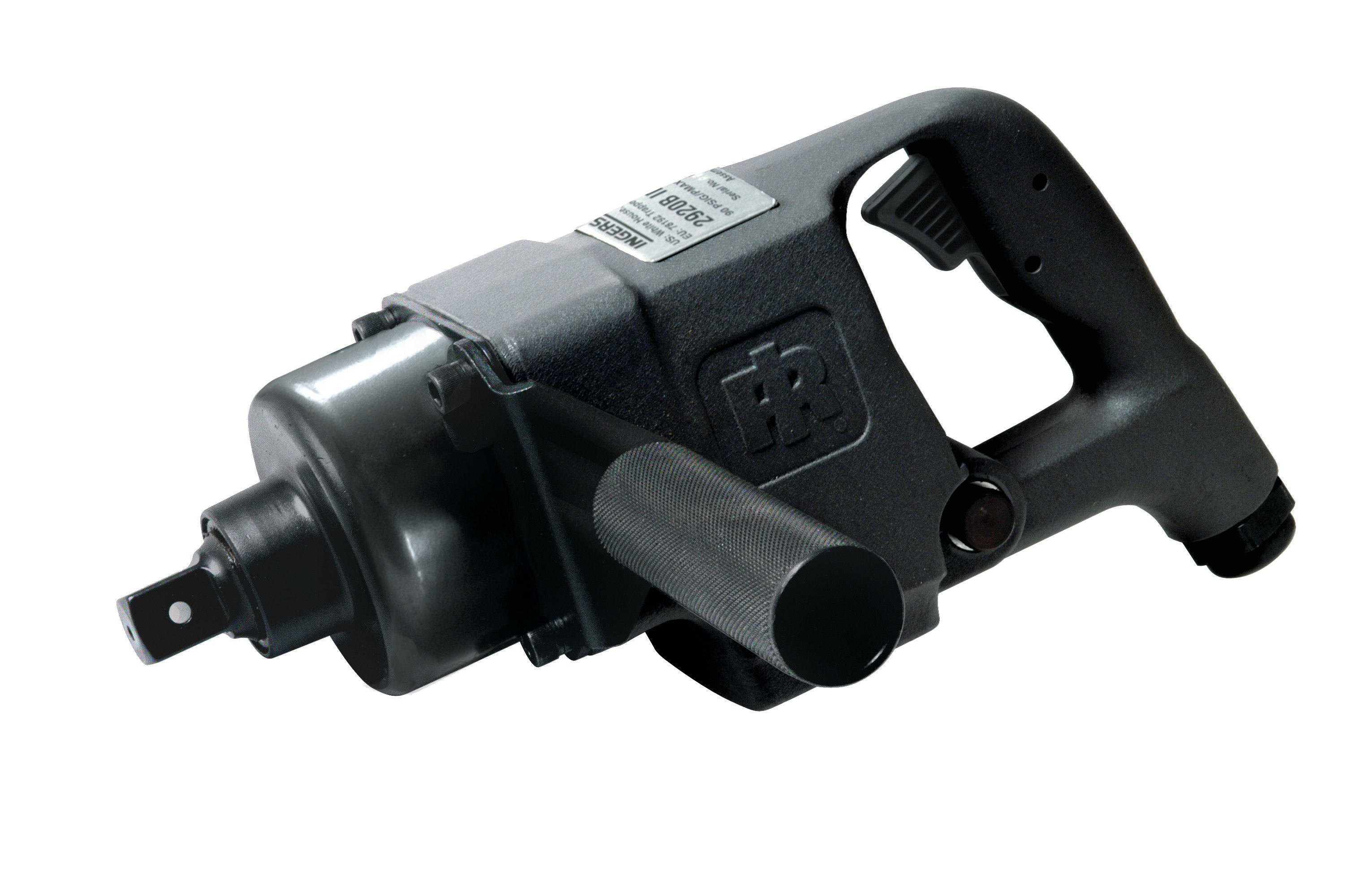

Ingersoll Rand Impact Wrench, 3/4 in. square drive, 1100 ft lbs
Impact Wrench, 3/4 in. square drive, 1100 ft lbs, model 2920B1 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2920B1 by Ingersoll Rand
The 2920B1 Impact Wrench has a 3/4 in. square drive and a free speed of 5000 rpm.
With the ability to go up to 950 bpm, The Ingersoll Rand 2920B1 can go up to a maximum torque of 1100 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 19.9 |
| Duty Rating | Super Duty |
| Air Inlet Size | 3/8" NPT |
| Min Hose Size | 1/2" |
| Air Pressure (PSI) | 90 |
| Avg Air Consumption | 36 |
| Retainer | Thru-hole |
| Drive Size | 3/4" |
| Max Torque (ft-lb) | 1100 |
| Max Torque (in-lb) | 13196 |
| Max Torque (Nm) | 1491 |
| Free Speed (RPM) | 5000 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Non-Biased |
| Weight (lbs) | 13.19 |
| Weight (kg) | 5.98 |
| Length (in) | 12.5 |
| Length (mm) | 318 |
| Housing Material | Aluminum core with composite sleeve |
| Color | Grey |
| Handle Material | Composite |
| Configuration | D-Handle |
| MPN | 2920B1 |
| Features & Benefits | |
| Withstand drops and harsh conditions | |
| Thru-Hole | |
