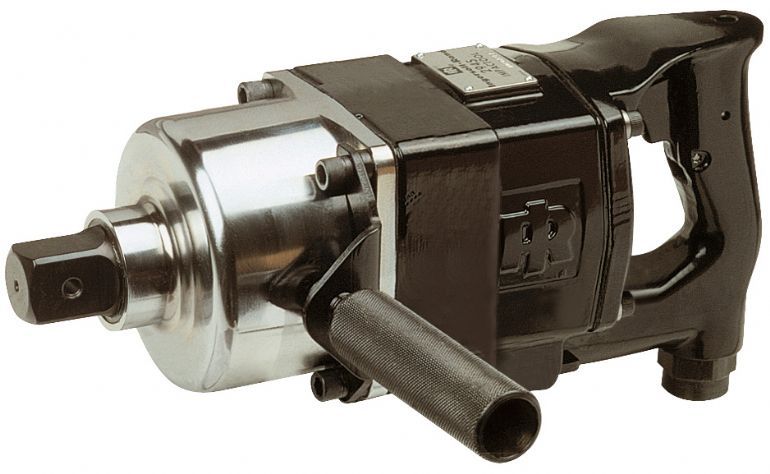

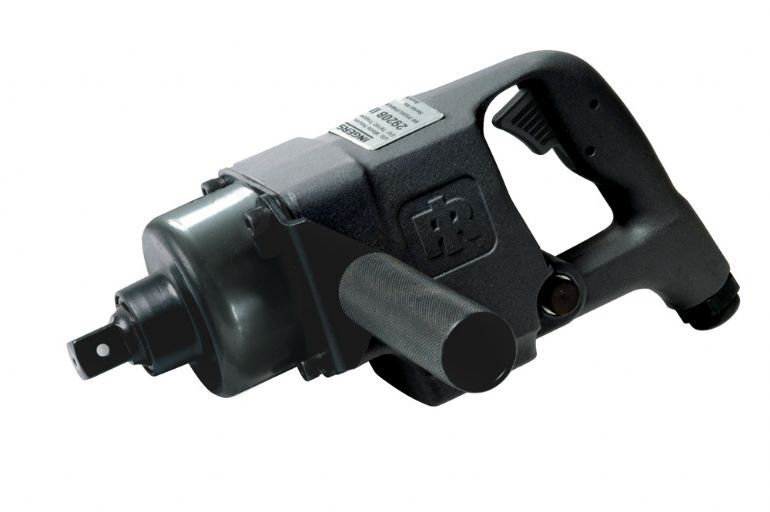

Impact Wrench, 3/4 in. square drive, 550 ft lbs
The 2920 Series's finely tuned motor and power regulator make this wrench one to beat. Reliable, durable and variable, it can get any job done.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFWarrantyOpen
- PDFManualsOpen
- PDFProductInfoOpen
- PDFPartInfoOpen
- PDFMaintenanceInfoOpen
- PDFIngersoll Rand 2920B Series Air Impact Wrench Product Information (PDF)Open
- PDFIngersoll Rand 2920B Series Air Impact Wrench Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Impact Wrench Safety Information (PDF)Open
- PDFIngersoll Rand 2920B Series Air Impact Wrench Maintenance Information (PDF)Open
Recommended Accessories
6 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | ARO | — | $362.70 | 1 | View details |
| C383D1-810C383D1-810 | 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80 | ARO | 4.54 | $424.80 | 1 | View details |
Details
Product information
Overview
Ingersoll Rand Impact Wrench, 3/4 in. square drive, 550 ft lbs
Impact Wrench, 3/4 in. square drive, 550 ft lbs, model 2920B9 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2920B9 by Ingersoll Rand
The 2920B9 Impact Wrench has a 3/4 in. square drive and a free speed of 5000 rpm.
With the ability to go up to 950 bpm, The Ingersoll Rand 2920B9 can go up to a maximum torque of 550 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 19.9 |
| Duty Rating | Super Duty |
| Air Inlet Size | 3/8" NPT |
| Min Hose Size | 1/2" |
| Air Pressure (PSI) | 90 |
| Avg Air Consumption | 36 |
| Retainer | Thru-hole |
| Drive Size | 3/4" |
| Max Torque (ft-lb) | 550 |
| Max Torque (in-lb) | 6603 |
| Max Torque (Nm) | 746 |
| Free Speed (RPM) | 5000 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Non-Biased |
| Weight (lbs) | 23.69 |
| Weight (kg) | 10.75 |
| Length (in) | 17.5 |
| Length (mm) | 445 |
| Housing Material | Aluminum core with composite sleeve |
| Color | Grey |
| Handle Material | Composite |
| Configuration | D-Handle |
| MPN | 2920B9 |
| Features & Benefits | |
| Withstand drops and harsh conditions | |
| Thru-Hole at 90 deg | |
