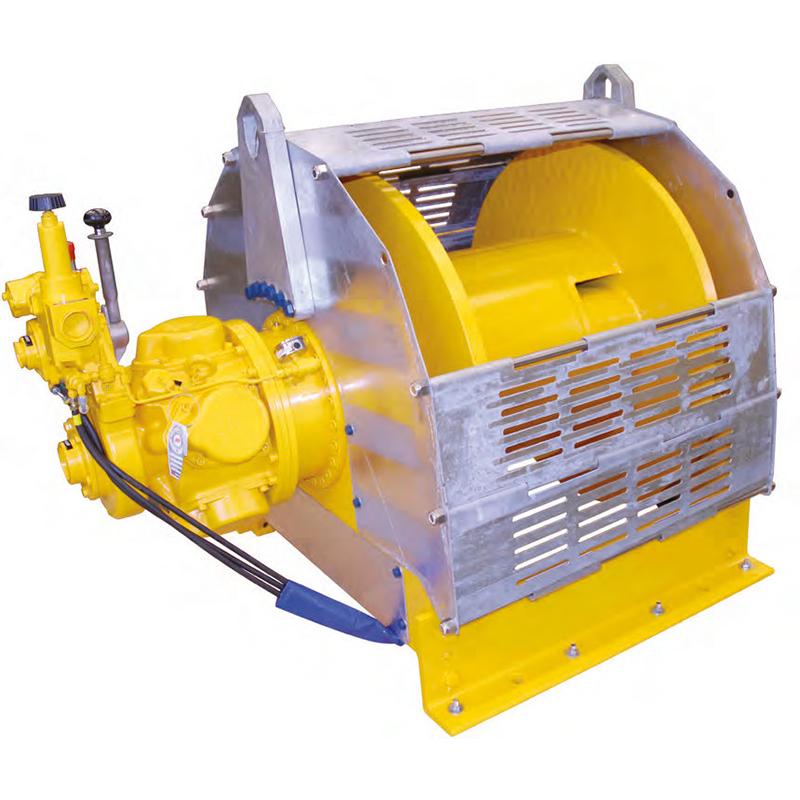

Infinity Air Winch, 12600 lb capacity, 48 fpm, 1786 ft. Rope length

Ingersoll Rand Infinity Air Winch, 12600 lb capacity, 48 fpm, 1786 ft. Rope length

FA7Ti-20xx1

When you need more wire rope capacity, Ingersoll Rand Infinity FA7Ti winches are ready for the challenge. Featuring the same high power, radial piston air motor as our standard FA7i winch, the Ti model allows up to 662 meters (2,160 feet) of wire rope on our standard 24" drum for deeper operations. With a high strength steel frame and offshore tested features, Ingersoll Rand FA7Ti winches are more than tough enough to meet your needs.

Features:

Durability
• Rugged all steel construction and fabricated steel frames for longer life
• Powerful radial piston air motor provides reliable power and adjustable speed
• Self-cleaning KSC2 control valve improves flow and performance

Safety
• 5:1 design factor for safe working load
• Lift-to-Shift variable speed lever provides precise control and built-in safety
• ATEX Zone 1 and Zone 2 compliance standard

Performance
• Minimum 18:1 drum diameter to wire rope diameter reduces wire rope wear
• Integrated gearbox-in-drum design for use in compact applications
• Built-in lifting lugs designed for lifting the weight of the winch plus wire rope
• Guideline/Podline deep water models are designed for offshore applications
