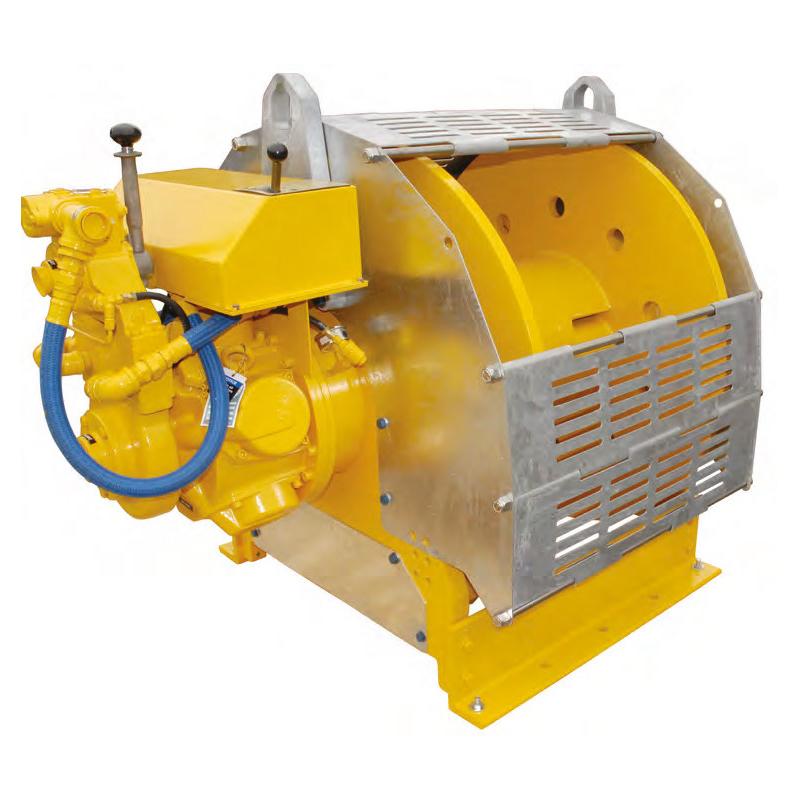

Infinity Guideline Air Winch, 3400 lb capacity, 159 fpm, 7480 ft. Rope length

Ingersoll Rand Infinity Guideline Air Winch, 3400 lb capacity, 159 fpm, 7480 ft. Rope length

FA7Ti-GL42XK1

Ingersoll Rand Infinity Guideline/Podline winches are designed for deep water operations. With longer drums and taller flanges these winches hold more wire rope to reach further. Guideline/ Podline winches include a winch mounted throttle for precise control. They can be used for unmanned lowering and allow rapid rope overhaul to save time. Built tough for the offshore market, Ingersoll Rand Infinity Podline/Guideline winches are the solution for reliable deepwater operations.

Features:

Durability
• Rugged all steel construction and fabricated steel frames for longer life
• Powerful radial piston air motor provides reliable power and adjustable speed
• Self-cleaning KSC2 control valve improves flow and performance

Safety
• 5:1 design factor for safe working load
• Lift-to-Shift variable speed lever provides precise control and built-in safety
• ATEX Zone 1 and Zone 2 compliance standard

Performance
• Minimum 18:1 drum diameter to wire rope diameter reduces wire rope wear
• Integrated gearbox-in-drum design for use in compact applications
• Built-in lifting lugs designed for lifting the weight of the winch plus wire rope
• Guideline/Podline deep water models are designed for offshore applications
