KK5B Series Air Motors

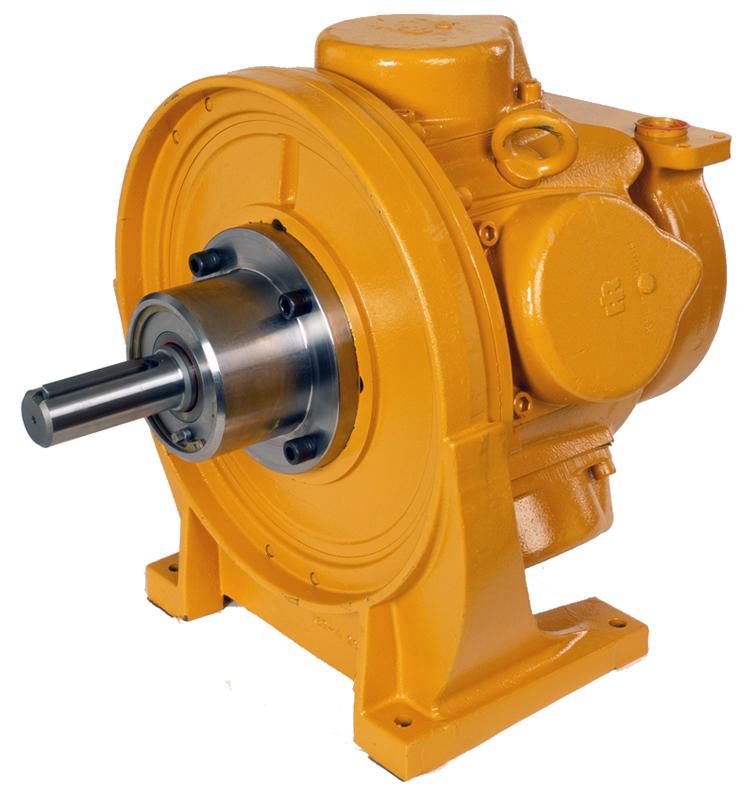

KK5B Series, Direct drive, Radial piston Air Motors. 29.00 hp to 30.00 hp (21.6 to 22.3 Kw). 900 rpm motors with adjustability through air controls. Piston motors are ideal for constantly varying loads such as winch and hoist applications.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
13 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 KK5B550-B1A0CKK5B550-B1A0C | MOTOR, AIR$21,061.33 | $21,061.33 | 1 | View details |
Details
Product information
Overview
KK5B Series, Direct drive, Radial piston Air Motors. 29.00 hp to 30.00 hp (21.6 to 22.3 Kw). 900 rpm motors with adjustability through air controls. Piston motors are ideal for constantly varying loads such as winch and hoist applications.
Features:- Up to 30 hp at 90 PSI air supply
- NEMA, SAE and Foot mount models available
- Manual and Remote control options available
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
| Features & Benefits | |
|---|---|
| Max Free Speed: up to 1,800 rpm | |
| Stall Torque: Up to 325 ft lbs | |
| 1 Year Warranty | |
| Max Free Speed: up to 1 | |
| 800 rpm |
