Ingersoll RandKX050-10

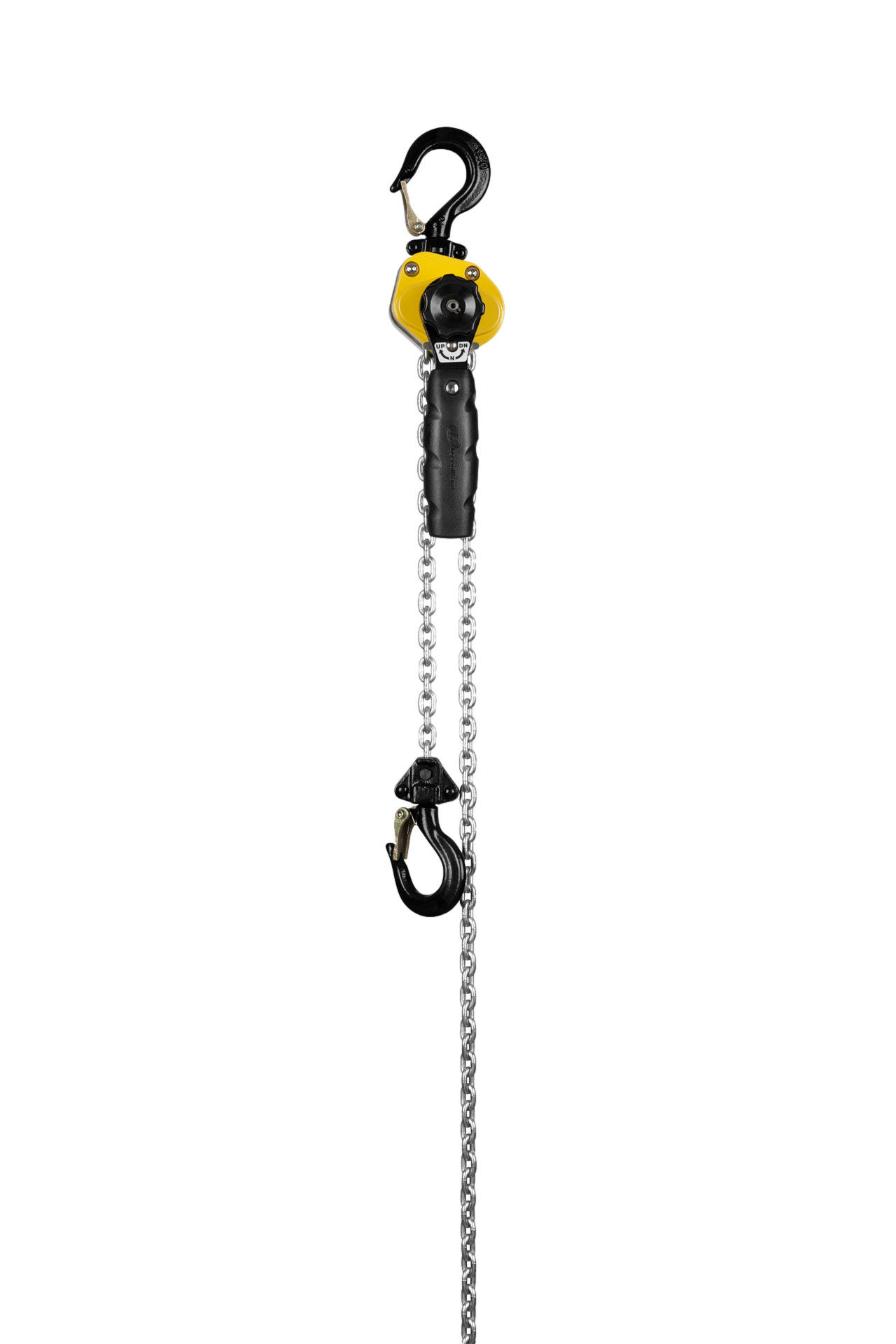

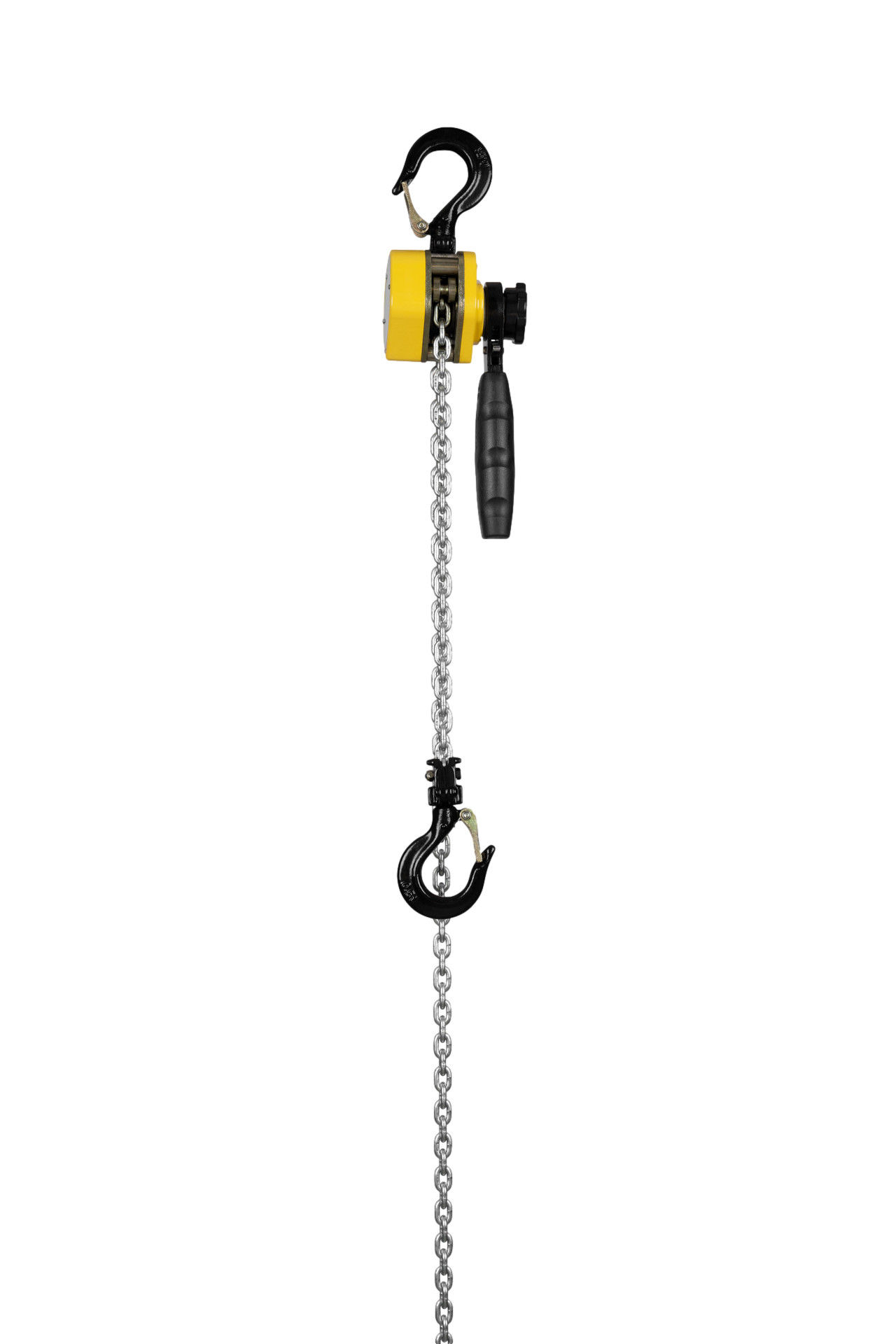

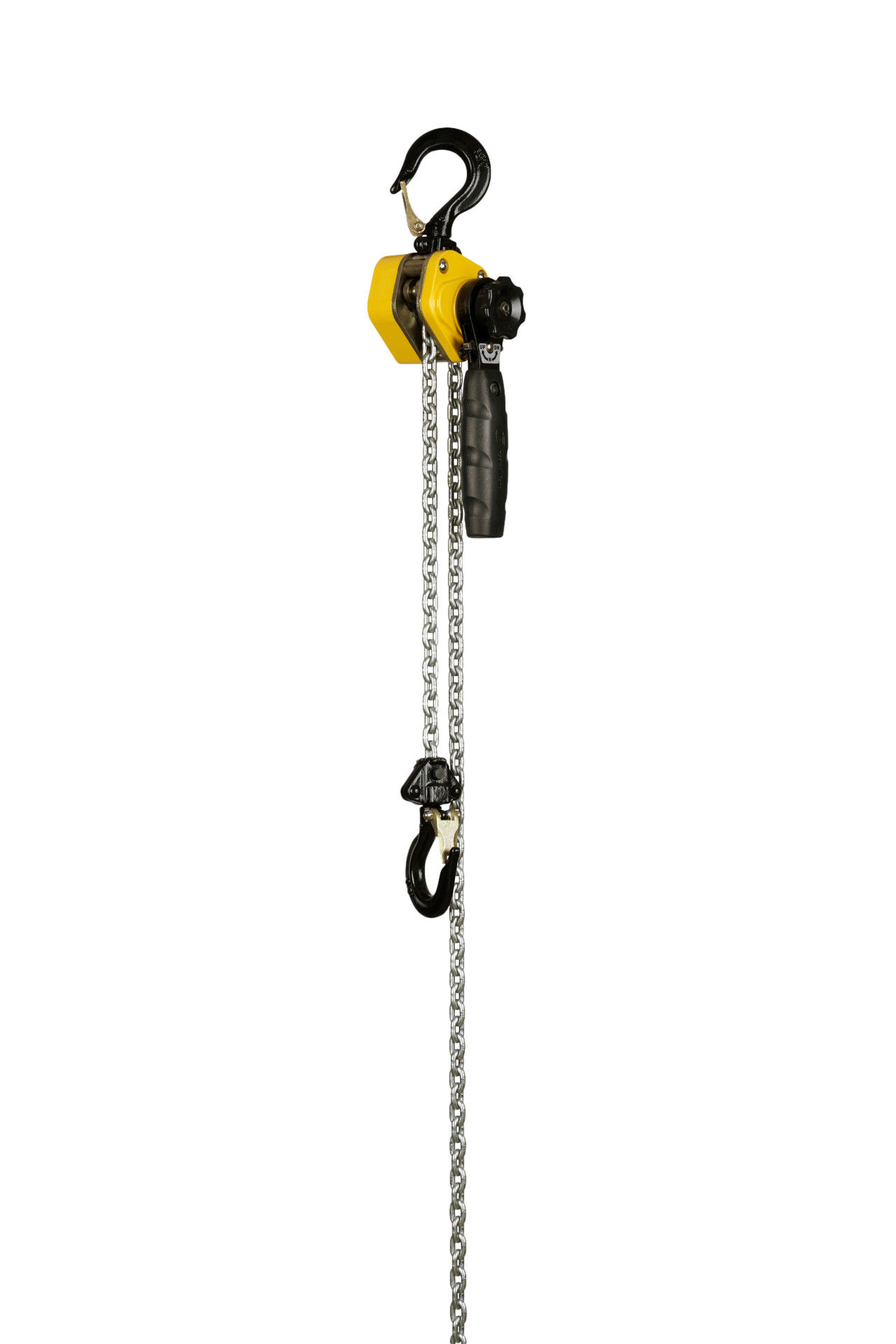

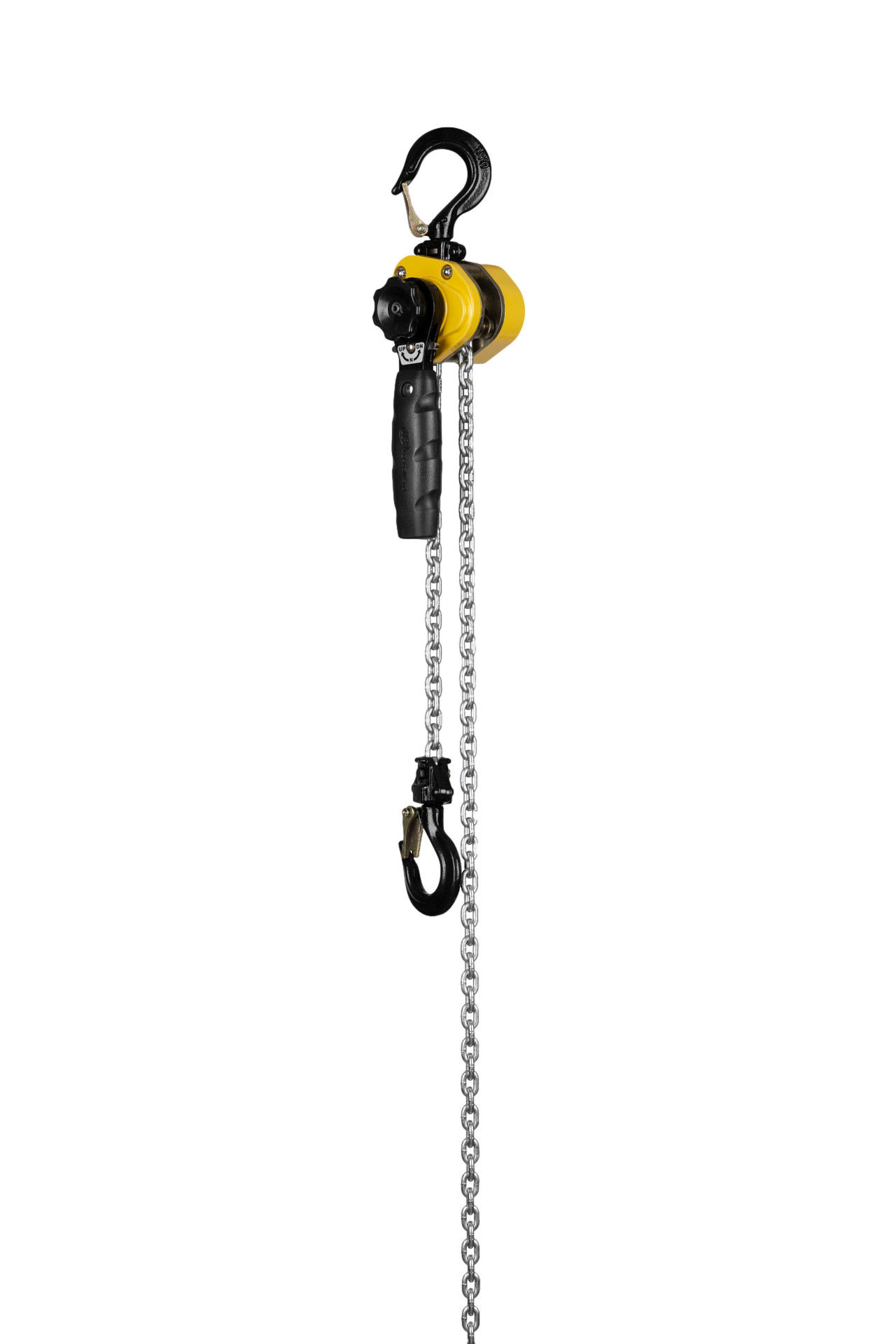

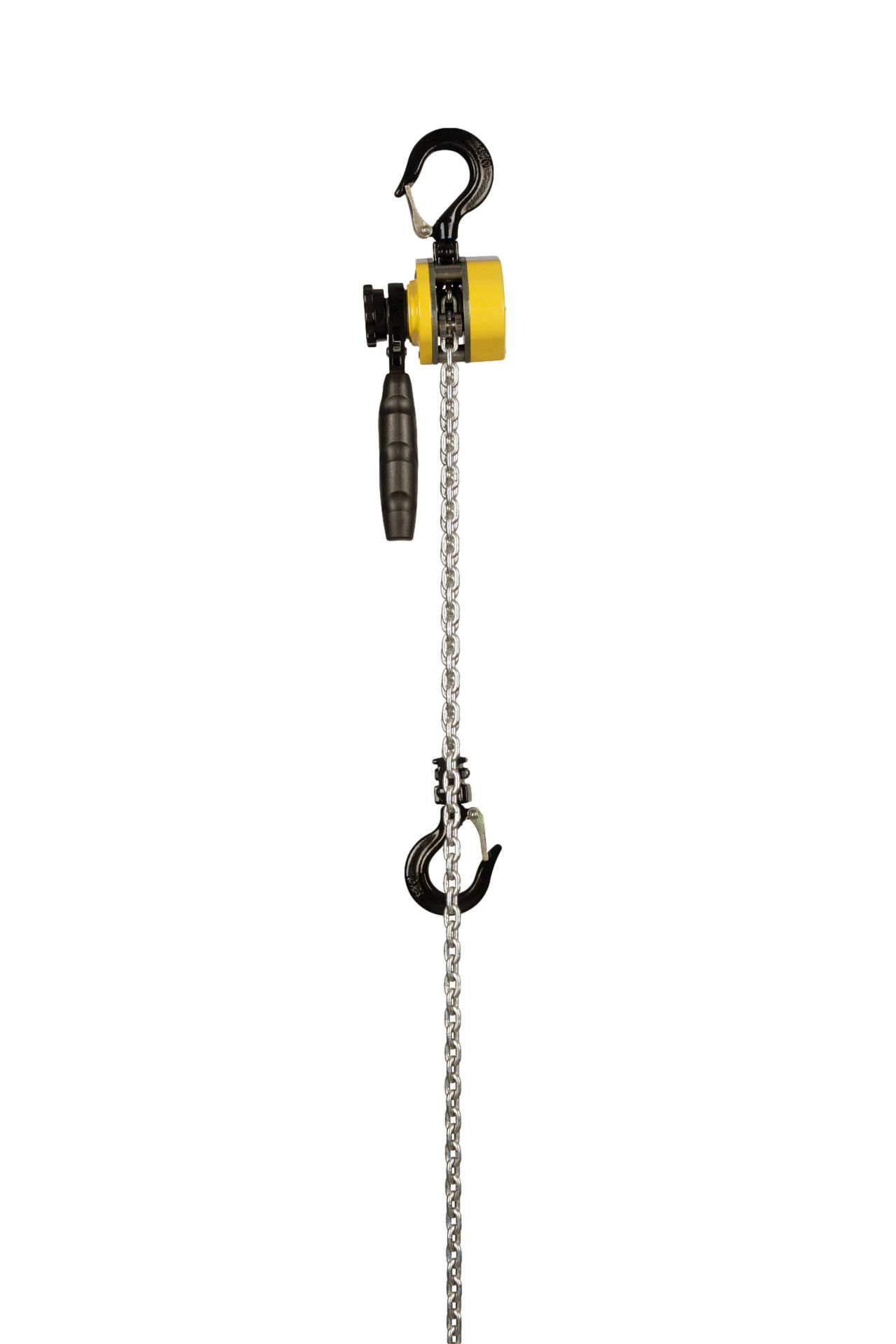

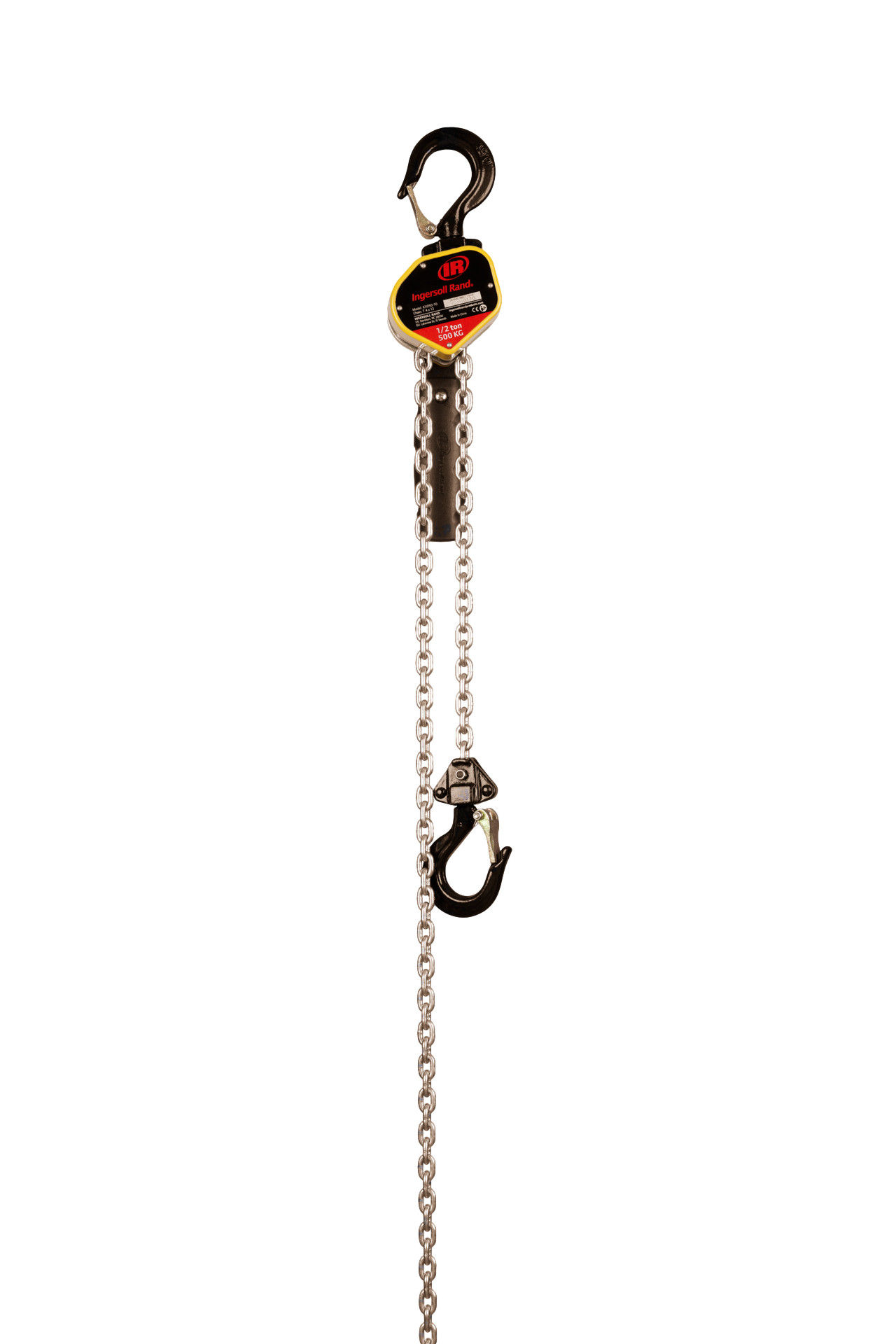

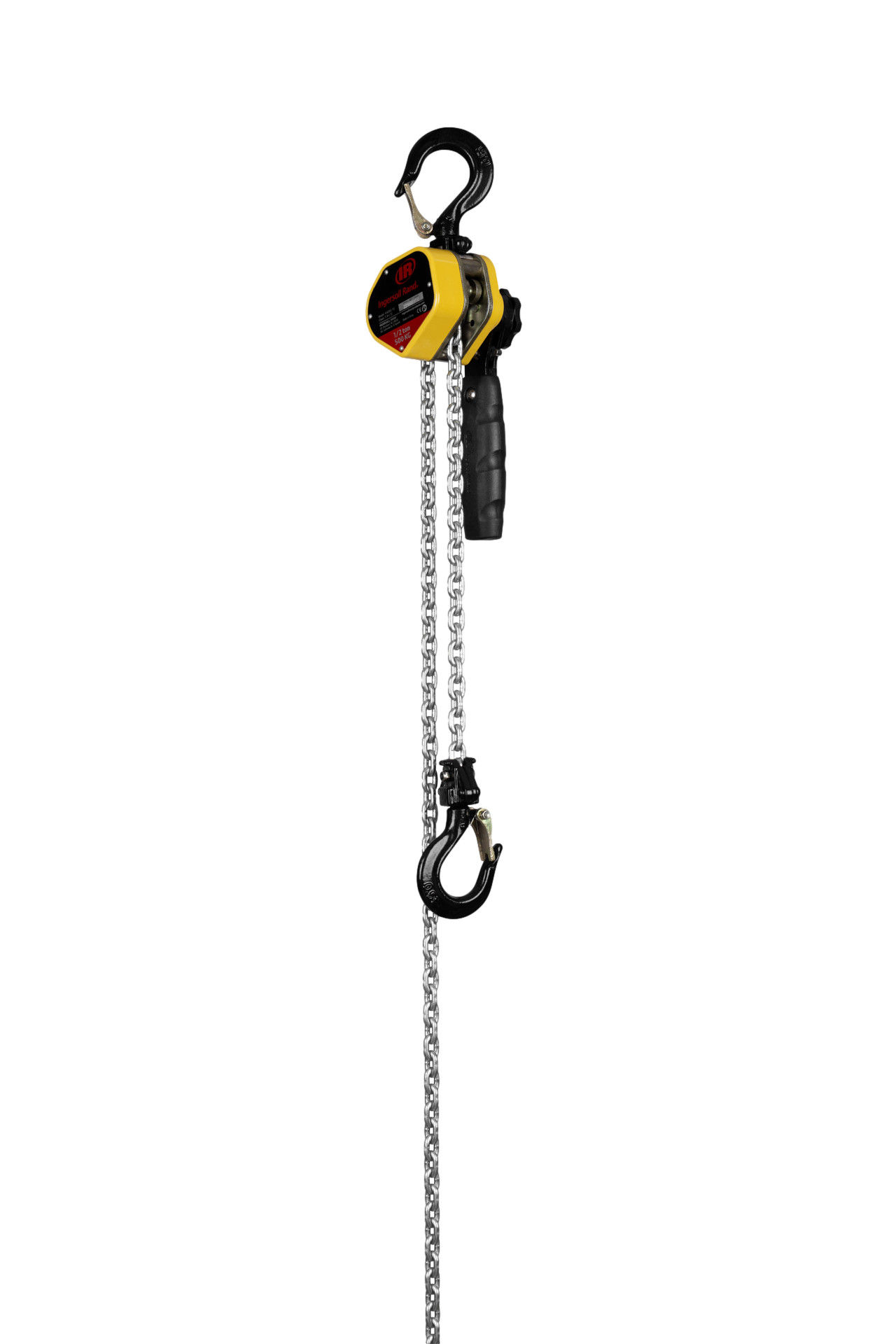

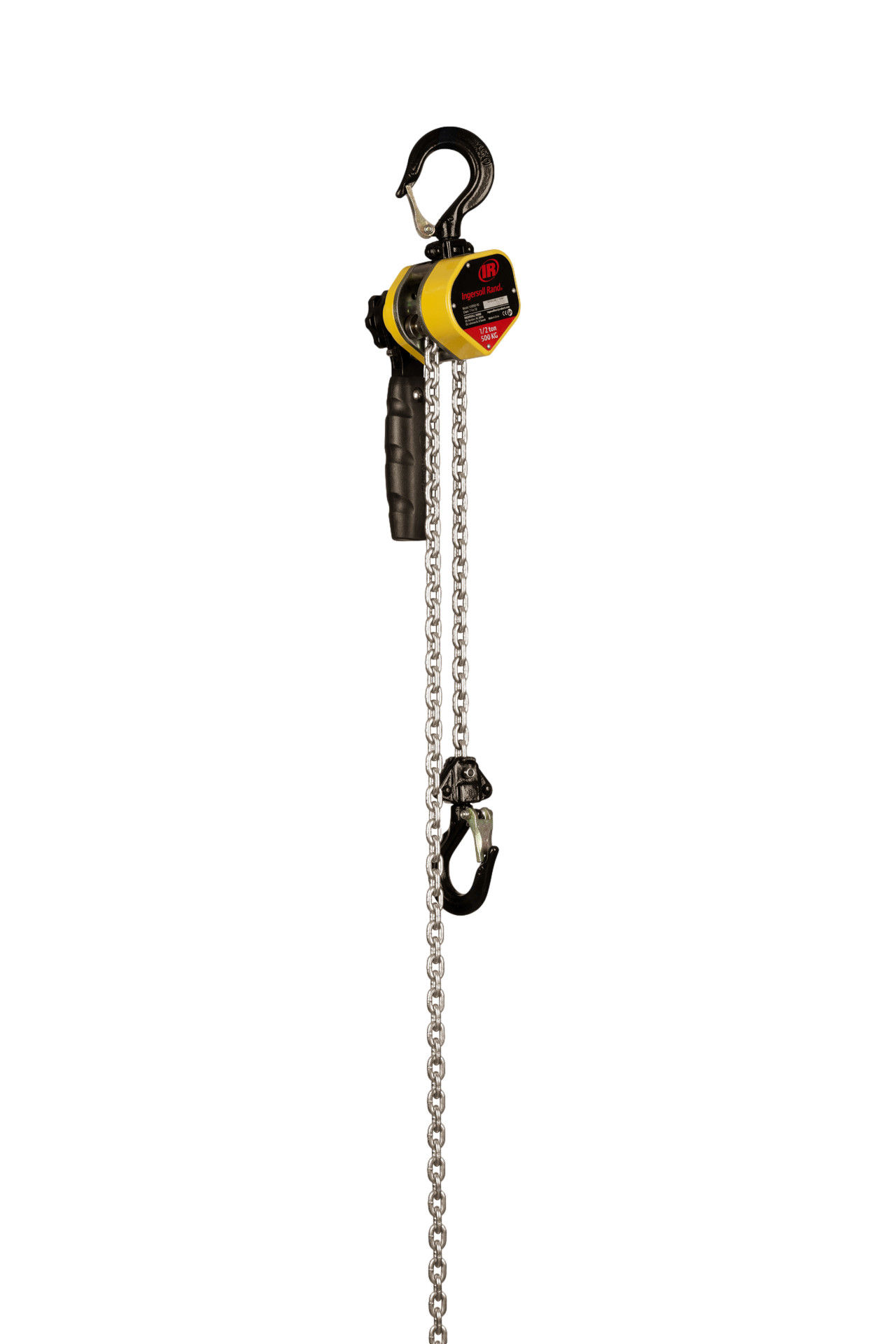

Lever Chain Hoist, 1100 lbs, 10 ft
Ingersoll Rand SideKick Series mini lever and manual hoists are engineered to fit into the smallest of spaces, to go where you go to get the job done.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
KX050-10 | Lever Chain Hoist, 1100 lbs, 10 ftKX050-10
Price on request
Details
Product information
Overview
Ingersoll Rand KX050-10
Sidekick Series Lever Chain Hoist, 1100 Lb Capacity, 1 Chain Fall, 10 Ft Chain Length
1/4 - 3/4 metric ton Lifting CapacityIngersoll Rand SideKick Series mini lever and manual hoists are engineered to fit into the smallest of spaces, to go where you go to get the job done. DonÂ’t let the size fool you; with grade 80 chain, long life disc brakes and all steel construction the SideKick hoist will be by your side year after year to make your job easier.
Features:
- Ultra-compact to fit into the smallest of spaces
- Grade 80 zinc plated or grade 100 Electro-plated load chain exceptional corrosion resistance for increased durability
- Heavy duty carrying bag with all KX lever hoists, standard
- Double pawl, disc brake system for a highly dependable brake system
- Heat treated steel side plates for increased durability
| Technical Specifications | |
|---|---|
| Capacity | 1100 |
| Lift Height | 10 |
| Headroom | 9.8 |
| Chain Fall | 1 |
| Brake Type | Double Pawl, Disc Brake System |
| Reeving | Single |
| Weight (lbs) | 5.6 |
| Weight (kg) | 2.54 |
| Length (in) | 4 |
| Length (mm) | 102 |
| Width (in) | 3.2 |
| Width (mm) | 81 |
| Height (in) | 9.8 |
| Height (mm) | 249 |
| Housing Material | Steel |
| MPN | KX050-10 |
| Features & Benefits | |
| Ultra-compact to fit into the smallest of spaces | |
| Use Grade 80 zinc plated or grade 100 Electro-plated load chains | |
| Double pawl, disc brake system | |
| Heavy duty carrying bag included | |
| Double pawl | |
| disc brake system | |
