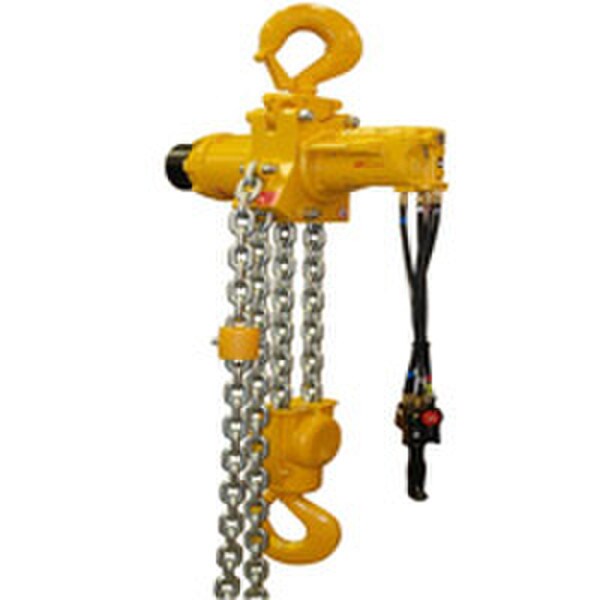

LIFTCHAIN Series Air Hoists

Featuring a compact, robust and modular design, the LIFTCHAIN® hoists offer a range of capacities from 1.5 to 100 metric tons with a variety of configurations including hook mount or with plain, geared, or motorized trolleys for mounting on jibs or beams.

Features:

• Rugged, Compact Design and Light Weight

  • All steel construction for better durability. Particularly adapted for difficult environments. Insensitive to dust and humidity. 100% duty cycle.

• Suitable for Hazardous Explosion Proof Environments

  • Air motors (unlike electric motors) are inherently explosion proof. ATEX classification (as per directive EC 94/9/EEC)

• Exclusive Gear Type Air Motor

  • Better ability than other motors to accept contaminated air. High starting torque ensuring good spotting capability. Virtually maintenance free. Minimal moving parts.

• Automatic Multi Disc Brake

  • Fully enclosed for better protection and corrosion resistance. No adjustment required. Maintenance free. Low pressure brake. “Venturi Effect” self-cleaning brake enclosure.

• Infinitely Variable Speed Control

  • Precision spotting control with infinitely variable speed through pilot pendent control or pull chain control.
• Overload Protection Device (Available for non-CE models)
• Main Air Emergency Stop (Available for non-CE models)

• Upper and Lower Limit Switches

  • Integrated in the hoist body for better protection. Allows the hoist to be also used in horizontal postion. No adjustment required.

• Corrosion Resistant Load Chain

  • Grade 80 calibrated load chain. Corrosion resistant treated for better protection and longer life. 5:1 design factor for safety and durability.

• Smart Design Bottom Blocks

  • Bottom hook mounted on ball bearing for easier, smoother turning under load. Water drain hole to vent water from block. External lubrication point for better durability and ease of maintenance.
