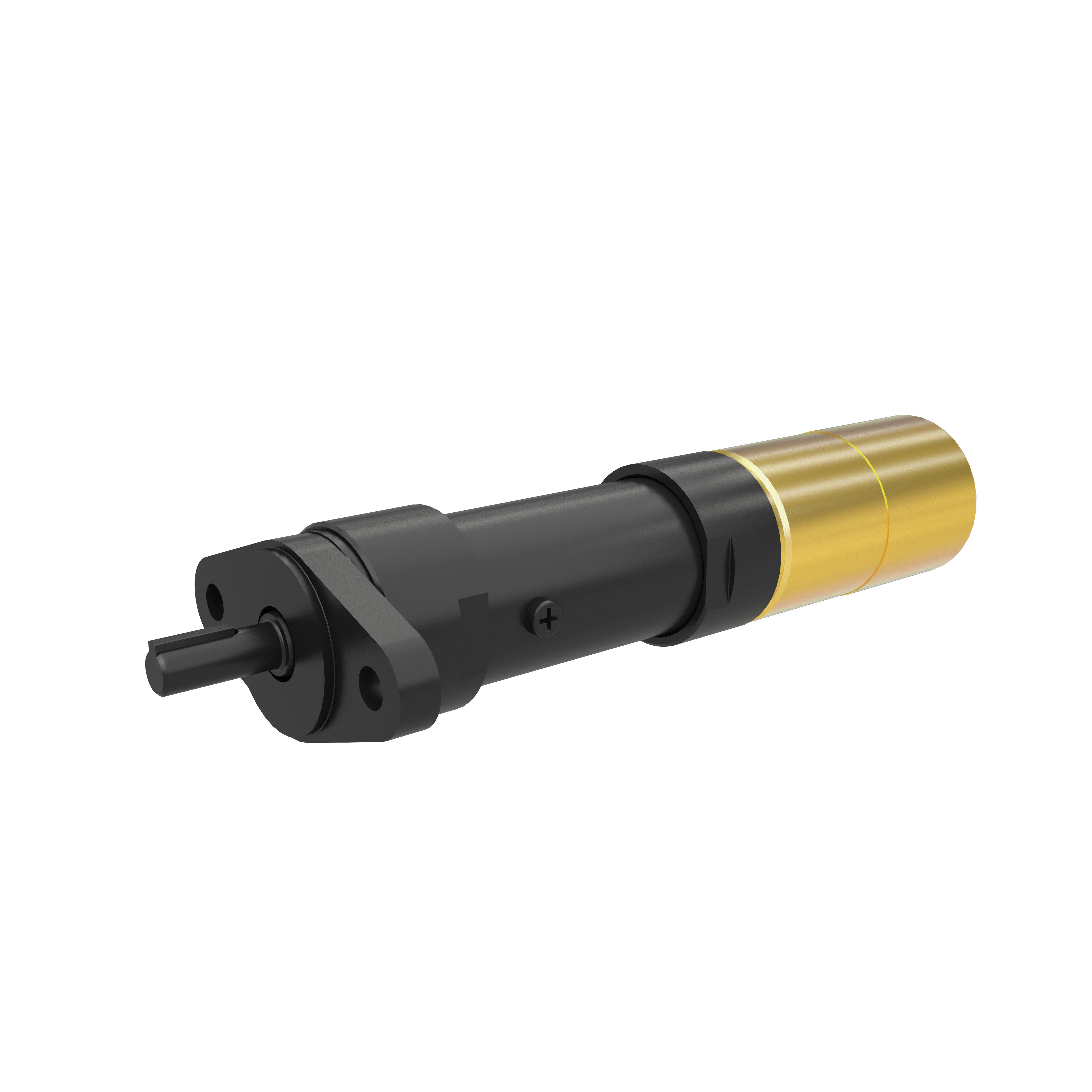

Ingersoll RandM004RHR050AR3
Multi-Vane Air Motor, inline planetary gear, 0.41 hp, 30 Nm stall
The M004 Series comes with both face and flange mounting options for a variety of applications. This series can also support variable speeds and torques, as well as instant starting and reversing without overheating.
$1,964.98List $2,330.00
Save $365.02Total$1,964.98Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
M004RHR050AR3 | Multi-Vane Air Motor, inline planetary gear, 0.41 hp, 30 Nm stallM004RHR050AR3
Total$1,964.98
1
Details
Product information
Overview
Ingersoll Rand M004RHR050AR3
0.41 Hp, 315 Rpm, Multi Vane Air Motor, Non-Reversible
M004 Series, In-Line planetary gear, Multi-vane Air Motors. Fractional horsepower, 0.31 hp to 0.50 hp (0.23 to 0.37 Kw). 42 rpm to 18,000 rpm with adjustability through air controls.
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Two hole "A" flange standard. Optional 4 hole "B" flange available
- 3/8"-24 Threaded shaft option
- Side inlet option on reversible models
- Square Drive thread on option available
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Air Inlet Size | 1/4" NPT |
| Air Pressure (PSI) | 90 |
| Drive Size | 3/8" |
| Max Torque (ft-lb) | 22 |
| Max Torque (in-lb) | 266 |
| Max Torque (Nm) | 30 |
| Free Speed (RPM) | 315 |
| Drive Type | Round Keyed |
| Exhaust Direction | Rear |
| Motor Type | Rotary Vane |
| Power (HP) | 0.41 |
| Weight (lbs) | 2.69 |
| Weight (kg) | 1.22 |
| Housing Material | Steel |
| MPN | M004RHR050AR3 |
| Features & Benefits | |
| Meets ATEX Standards | |
| Able to withstand harsh environments for a multitude of applications. | |
| Thanks to easy servicing, you never have to break for long to fix your equipment. | |
| Meets ATEX Standards,Able to withstand harsh environments for a multitude of applications. | |
