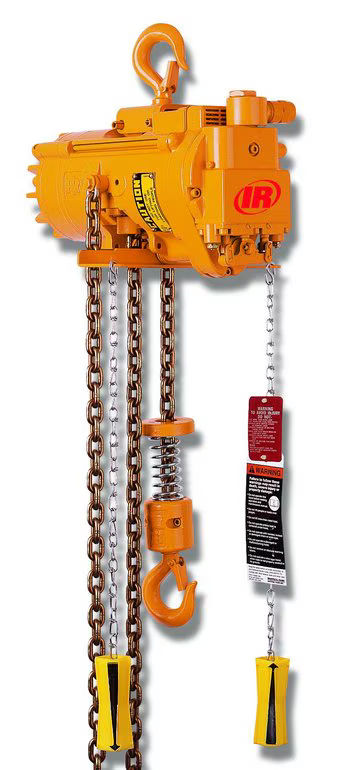

MLK Series Air Hoists
The MLK Series Air Chain Hoist has been serving the industry for over 25 years. The rugged and reliable MLK series share a common design with many interchangeable parts. With high speeds and precise spotting, these hoists are ideal for high production cycle operations.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Details
Product information
Overview
Features
- 100% duty cycle. MLK are rated as HMI duty classification A5, severe duty. This equates to FEM 9.511 duty classification 2m.
- These hoist are ideal for the harsh environments found in steel mills, foundries and electroplating operations. These are also ideal for high duty cycle applications.
- Pull chain or pilot pendent controls provide precise spotting capabilities. For even more precise control MLKS slow speed models are available.
- Self adjusting, air operated disc brake is spring applied and air released. Wear tested to over 1 million cycles before replacement.
- All rotating parts are supported by either ball or roller type bearings. Unique planetary gearing system assures long life.
- Thoughtful design includes parts interchangeability, inlet swivels, exhaust air chain lubrication, control adjustment screws and easy conversion from pull chain to pendent control.
- Spark resistant models and a wide range of options and accessories are available.
| Features & Benefits | |
|---|---|
| Weight Capacity: Up to 13,200 Lb (5,987 Kg) | |
| Lifting Speed: Up to 171 Ft/Min (52.1 M/Min) | |
| Starting at $3,700 | |
| Weight Capacity: Up to 13 | |
| 200 Lb (5 | |
| 987 Kg) |
