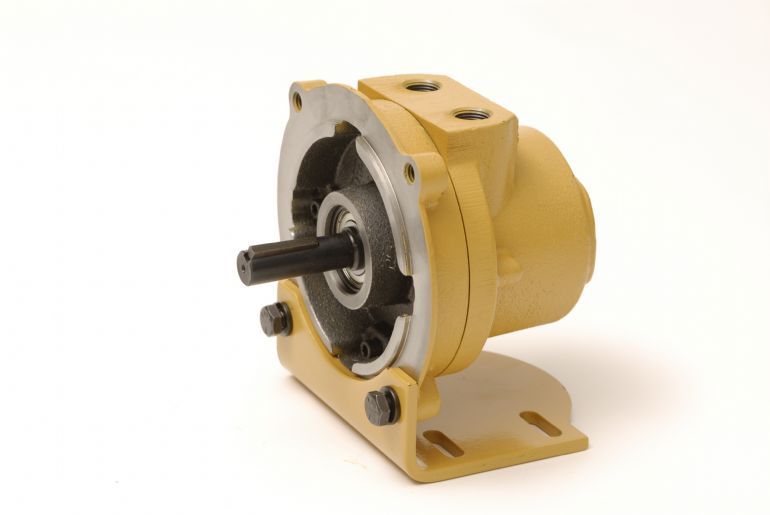

Ingersoll RandMVA017B
Multi-Vane Air Motor, direct drive, 1.93 hp, 9.5 Nm stall, reversible
Easy-to-service and a workhorse in any environment. These direct drive vane motors come in face, flange, foot and nema mounting options. Can be used at variable speeds and torques.
$976.31List $1,270.00
Save $293.69Total$976.31Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
MVA017B | Multi-Vane Air Motor, direct drive, 1.93 hp, 9.5 Nm stall, reversibleMVA017B
Total$976.31
1
Details
Product information
Overview
Ingersoll Rand MVA017B
1.93 Hp, 5450 Rpm, Direct Drive Multi Vane Air Motor
Direct drive multi-vane air motors from 0.75 hp to 10.5 hp with speed adjustability through air controls.
Features:- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive environments.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply and proper lubrication.
- No shock starts: Air cushioned start-up cuts stress on your equipment.
- Mounting options: Face and foot mount.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Air Inlet Size | 3/8" NPT |
| Air Pressure (PSI) | 90 |
| Drive Size | 5/8" |
| Max Torque (ft-lb) | 7 |
| Max Torque (in-lb) | 84 |
| Max Torque (Nm) | 9.5 |
| Free Speed (RPM) | 5450 |
| Drive Type | Round Keyed |
| Exhaust Direction | Side |
| Motor Type | Rotary Vane |
| Power (HP) | 1.93 |
| Weight (lbs) | 12.5 |
| Weight (kg) | 5.67 |
| Housing Material | Steel |
| MPN | MVA017B |
| Features & Benefits | |
| Meets ATEX Standards | |
| These motors stand up to difficult applications and are ideal replacements for electric motors. | |
| Meets ATEX Standards,These motors stand up to difficult applications and are ideal replacements for electric motors. | |
