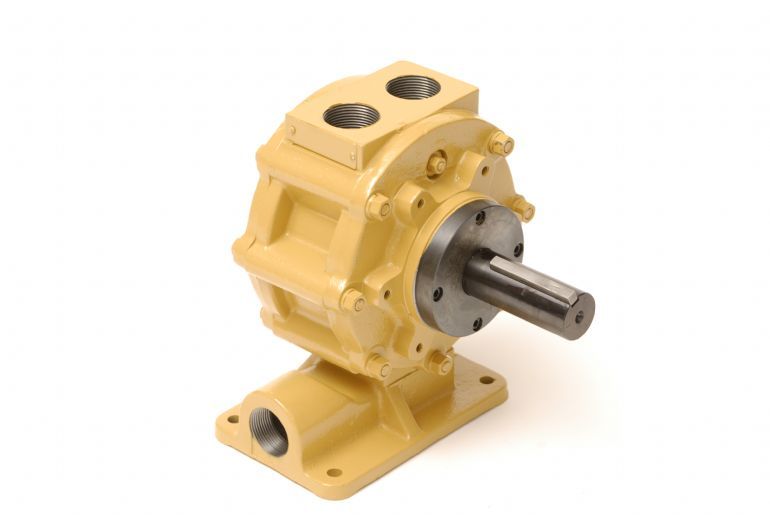

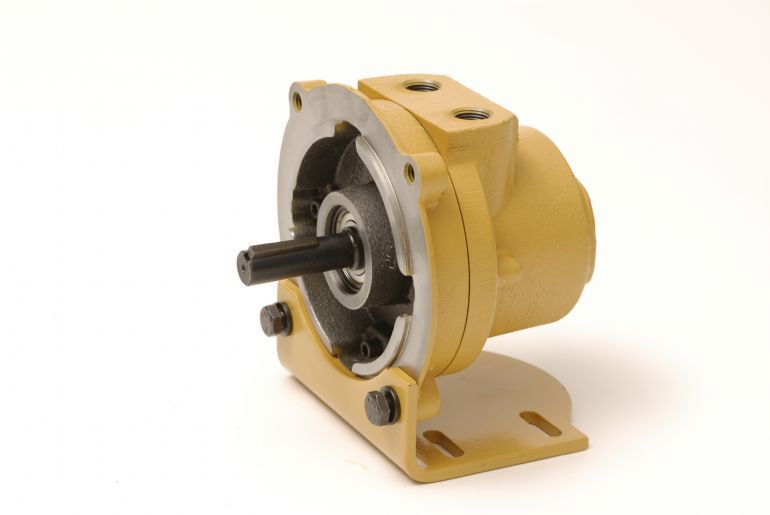

Ingersoll Rand MVA034B | Multi-Vane Air Motor, direct drive, 4.15 hp, 17.4 Nm stall, reversible

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Ingersoll Rand MVA034B | Multi-Vane Air Motor, direct drive, 4.15 hp, 17.4 Nm stall, reversible

$957.09
Ingersoll Rand

Details

Ingersoll Rand MVA034B

4.15 Hp, 6250 Rpm, Direct Drive Multi Vane Air Motor

Direct drive multi-vane air motors from 0.75 hp to 10.5 hp with speed adjustability through air controls.

Features:
  • Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
  • Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive environments.
  • Instantly reversible.
  • Compact and portable: Get maximum horsepower in minimum size.
  • Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
  • Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply and proper lubrication.
  • No shock starts: Air cushioned start-up cuts stress on your equipment.
  • Mounting options: Face and foot mount.

Easy-to-service and a workhorse in any environment. These direct drive vane motors come in face, flange, foot and nema mounting options. Can be used at variable speeds and torques.

Warning: California Proposition 65

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • Meets ATEX Standards
  • These motors stand up to difficult applications and are ideal replacements for electric motors.

Technical Information

Technical Specifications

Technical Specifications

SKU: MVA034B-IR
Manufacturer Ingersoll Rand
Model MVA034B
Stock CodeC
Free Speed (RPM) 6250
Max Free Speed (rpm) 6250
Rated Power (hp) 4.15
Reversible Yes
Series MVA
Stall Torque (ft lb) 12.8
Stall Torque (Nm) 17.35
Type Multi-Vane Air Motor, direct drive
Weight16.49 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

Ingersoll Rand MVA M0V0 Series Air Motors Specifications (PDF)

We are always wanting to provide more information! In need of a technical document? Let us know!
