Ingersoll RandFA2.5AMR24MK1G

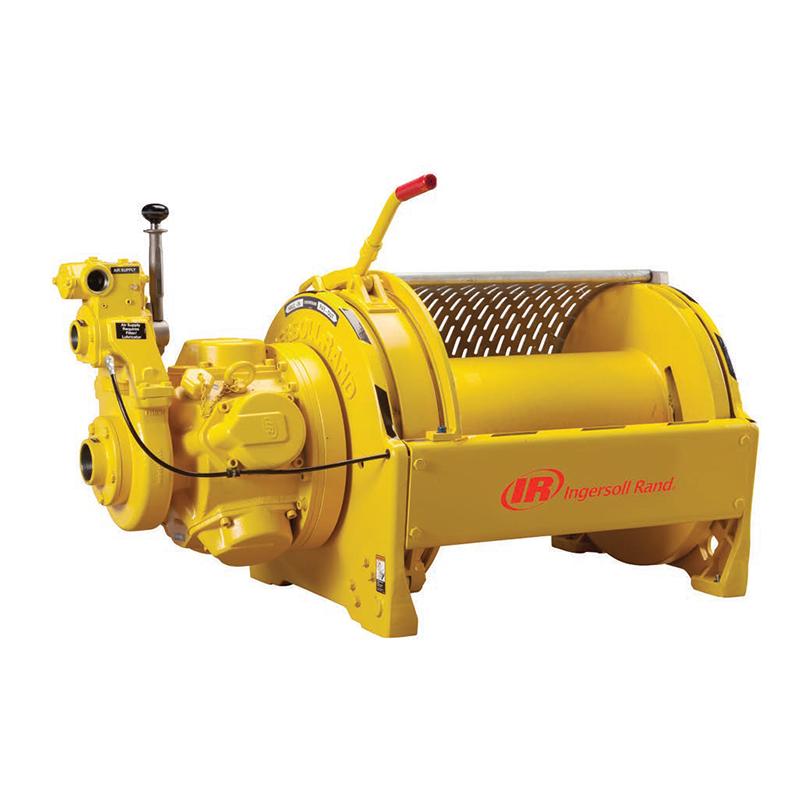

Personal Lifting Air Winch, 3125 lb capacity, 191 fpm, 1287 ft. Rope length

FA2.5AMR24MK1G | Personal Lifting Air Winch, 3125 lb capacity, 191 fpm, 1287 ft. Rope length

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Documents1 file

Details

Product information

Overview

Ingersoll Rand Personal Lifting Air Winch, 3125 lb capacity, 191 fpm, 1287 ft. Rope length

FA2.5AMR24MK1G

Ingersoll Rand Dual Purpose winches are designed to maximize the use of your equipment. They combine the time-tested, rugged durability of our standard Third Generation winches with enhanced safety features for lifting personnel. In environments where dedicated Man Rider® winches are not required, Ingersoll Rand Dual Purpose winches offer you the versatility to lift people and material with one winch. Often copied, but never equaled, count on Ingersoll Rand Dual Purpose winches to get the job done.

Features:

    Durability
  • Stainless Steel Enclosure protects moving parts from the elements
  • Marine grade paint provides superior corrosion resistance
  • 10:1 Design Factor for extra-long life
    Safety
  • Automatic Multi-Disc Brake and Automatic Drum Brake provide the safety of two independent braking systems
  • Slack line prevention system automatically stops the winch from paying out in case of slack wire
  • Built-in limit switches prevents raising or lowering past set limits
    Performance
  • Helical Grooved Drum assists with wire rope spooling
  • Press Roller assists with wire rope spooling
  • Designed to meet the latest regulations including CE, ATEX and DNV type approval
Technical Specifications
ApplicationOnshore, Offshore, Marine
SPEED (FT/MIN)191
TypePersonal Lifting Air Winch
ManufacturerIngersoll Rand
SKUFA2.5AMR24MK1G
Weight (lbs)905
Rope Length1287 ft.
Rope Diameter1/2 in.
SeriesThird Generation Dual Purpose Air Winches
Capacity (lbs)3125
MPNFA2.5AMR24MK1G
