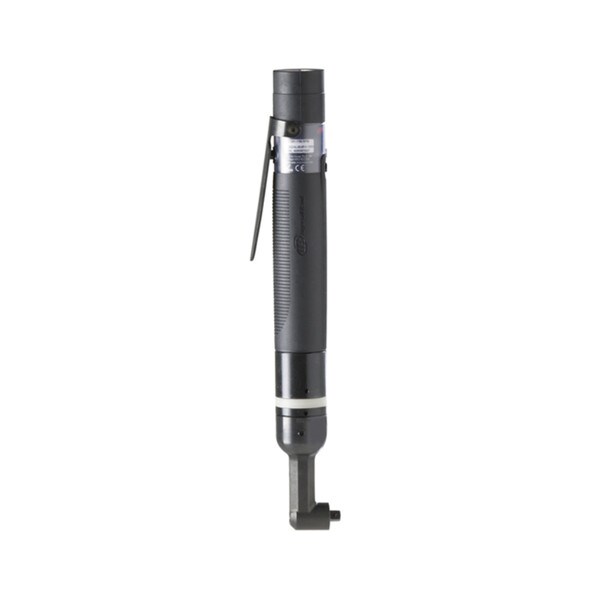

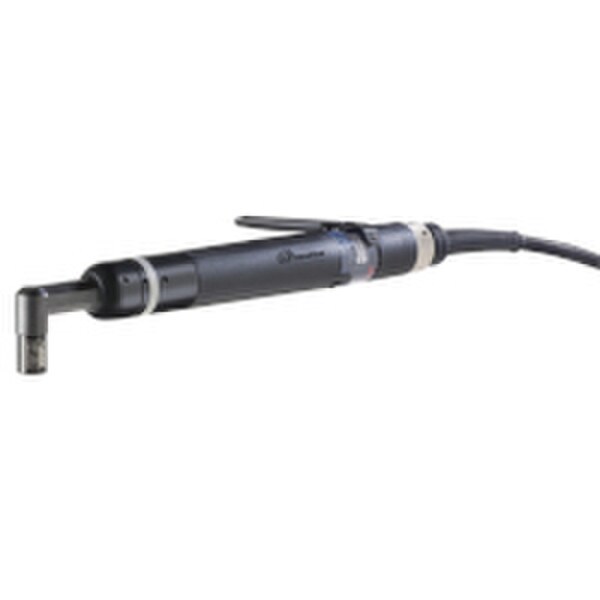

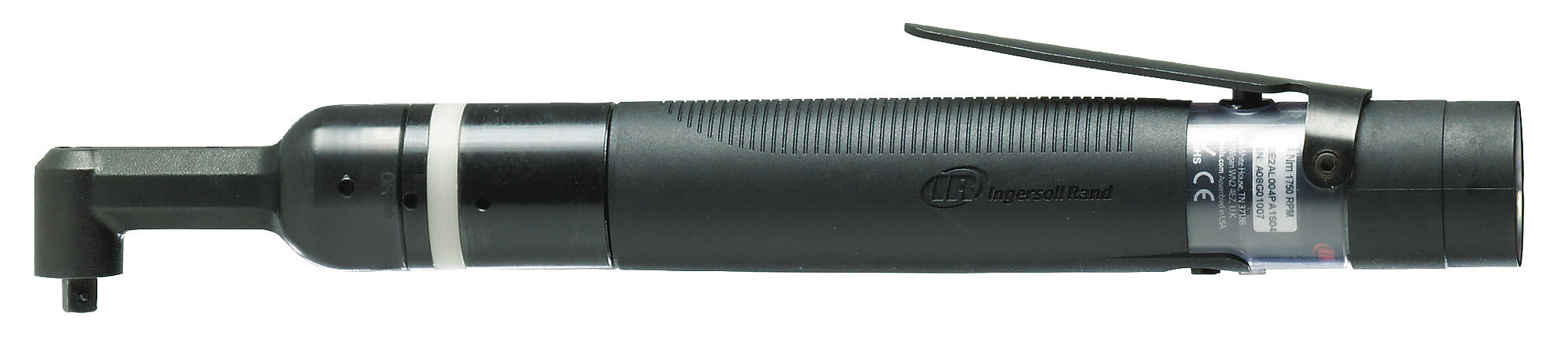

Angle Electric Nutrunner, 3 Nm, 1/4'' square
Compact, lightweight and high-speed, the QE2 Angle Series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity.
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 CPS2-C0RD-3MCPS2-C0RD-3M | ASSEMBLY CABLE, 3M | 1 | View details | |
 QCD11QCD11 | 120 VAC IQC Controller with standard hardware, standard software | 1 | View details |
Details
Product information
Overview
Ingersoll Rand Angle Head Air Nutrunner, 3 Nm, 1/4 in. square drive
Angle Head Air Nutrunner, 3 Nm, 1/4 in. square drive, model# QE2AL003PA1S04. Do you see this Ingersoll Rand Air Nutrunner elsewhere for a lower price? Contact customer service to price match!
QE2AL003PA1S04 by Ingersoll Rand
Compact, lightweight and high-speed, the QE2 Angle series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 0.3 Nm to 400 Nm.
Features
- ESD-Safe & RoHS compliant
- Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
- Versatile - Customizable to your needs, these tools allow you to change torque output, body style, actuation and spindle type.
- Reliability - With a heavy duty gear train, a brushless DC motor and non-contacting switches, this series is as reliable as it is efficient.
- Made to Use - With numerous features designed to enhance user experience, the QE2 Angle allows you to work well with minimal distractions.
Note: QCD11 Controller and CPS2-C0RD-3M cable required
| Technical Specifications | |
|---|---|
| Power Source | Electric |
| Sound Pressure | < 70 |
| Vibration Level | < 2.5 |
| Retainer | Pin Detent |
| Drive Size | 1/4" |
| Max Torque (ft-lb) | 3 |
| Max Torque (in-lb) | 35 |
| Max Torque (Nm) | 4 |
| Free Speed (RPM) | 2000 |
| Tracking | No Wireless Functionality |
| Drive Type | Square |
| Motor Type | Brushless Motor |
| Weight (lbs) | 1.82 |
| Weight (kg) | 0.83 |
| Length (in) | 12.28 |
| Length (mm) | 312 |
| Color | Black |
| Configuration | Right Angle |
| MPN | QE2AL003PA1S04 |
| Features & Benefits | |
| Closed loop transducerized control provides exceptionable accuracy and traceability | |
| Heavy duty gear train, brushless DC motor and non-contacting switches | |
| Work well with minimal distractions | |
| ESD-Safe & RoHS compliant option available | |
| Heavy duty gear train | |
| brushless DC motor and non-contacting switches | |
