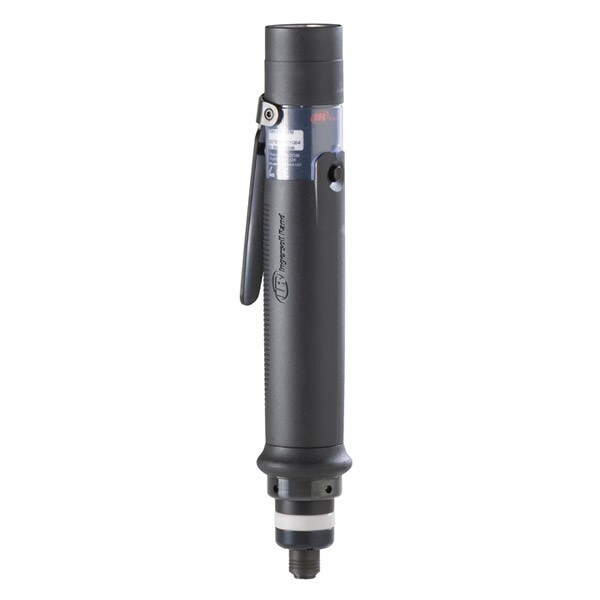

Ingersoll RandQE2SC003F32S06
Inline Electric Nutrunner, 3 Nm, 3/8'' square
With a torque range up to 3 Nm and variable speeds, the QE2 Inline Series is great for any tightening job when you need to get your work done quickly and efficiently.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
QE2SC003F32S06 | Inline Electric Nutrunner, 3 Nm, 3/8'' squareQE2SC003F32S06
Price on request
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|
 GEA40-C0RD-3M-90GEA40-C0RD-3M-90 | 3 Meter Tool Cable | 5 | 1 | View details | |
 GEA40-C0RD-3MGEA40-C0RD-3M | 3 Meter Tool Cable | 2 | 1 | View details |
Details
Product information
Overview
Ingersoll Rand QE2SC003F32S06
3/8" Square Inline Machine Start Nutrunner, 5.3 - 26.6 in lbs
A proven world-class combination — QE2 Series tools and IC Series controllers team up to provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity.
Features:
- True closed-loop transducerized torque and angle control provides excellent accuracy
- Advanced Tightening Strategies
- Data and Process Communications
- TactAlert provides positive feedback to the operator without distraction from the task
- Bright LED headlights
- ESD Safe
- RoHS Compliant
- Lightweight, compact, high-speed, easily accessible controls
- Bright LEDs provide visible status indication
- Comfortable, Ergonomic grip and hand rest
- Preventative maintenance alerts
Note: IC12D1A1AWS Controller required
| Technical Specifications | |
|---|---|
| Model | QE2SC003F32S06 |
| Type | Electric Nutrunner |
| Drive size | 3/8'' square |
| Manufacturer | Ingersoll Rand |
| Motor Type | Type 2 |
| Free Speed (RPM) | 2450 |
| SKU | QE2SC003F32S06 |
| Stock Code | 2 |
| Start Type | Remote Start |
| Style | Inline |
| Min Torque (In Lb) | 5.3 |
| Max Torque (In Lb) | 26.6 |
| Max Torque (Ft Lb) | 5.3 - 26.6 |
| Max Torque (Nm) | 3 |
| Mounting | Flanged Gearcase |
| Square Drive | 3/8 |
| Max Free Speed (rpm) | 24500 |
| Output | 50mm spindle, 19mm float |
| Series | QE2 |
| Drive Type | 3/8" square |
| MPN | QE2SC003F32S06 |
| Features & Benefits | |
| Provides exceptionable accuracy and traceability | |
| TactAlert, preventative maintenance alarms, LED headlights and more | |
| Equipped with non-contacting switches, heavy duty gear train and a brushless DC motor | |
| ESD-Safe & RoHS compliant | |
| TactAlert | |
| preventative maintenance alarms | |
| LED headlights and more | |
| Equipped with non-contacting switches | |
| heavy duty gear train and a brushless DC motor | |
