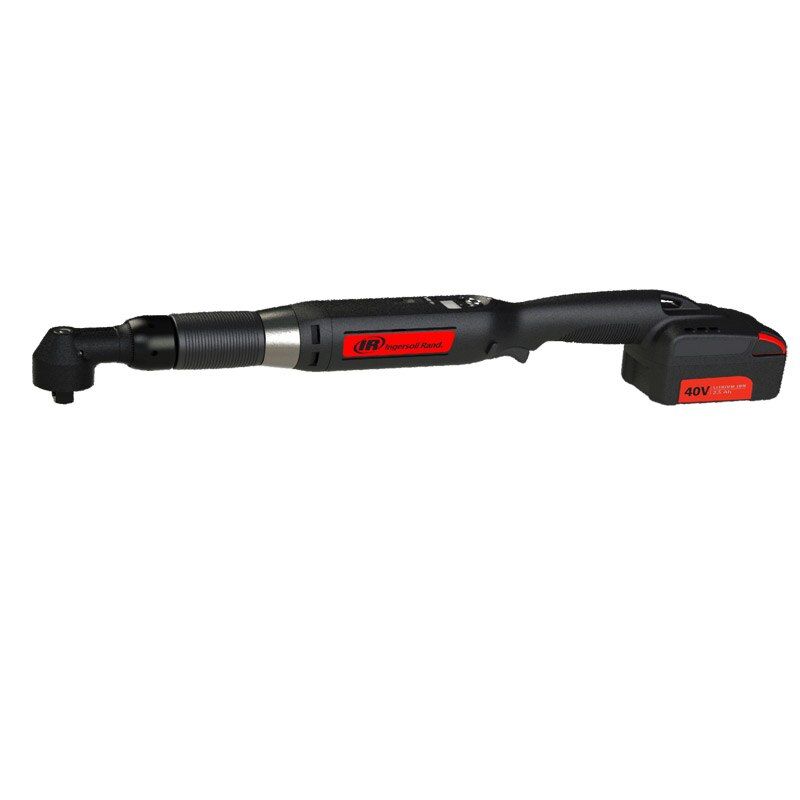

Ingersoll RandQXC5AT60PS08
60 Nm, High Torque Angle Wrench, 375 rpm
All the capability of the QX platform, without the torque reaction
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
QXC5AT60PS08 | 60 Nm, High Torque Angle Wrench, 375 rpmQXC5AT60PS08
Price on request
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Ingersoll Rand QXC5AT60PS08
60 Nm, High Torque Angle Wrench, 375 Rpm (Usb Only)
Up to 8 user programmed configurations allows one assembly tool to do the job of many! At a price you can afford today, the QX Series Cordless High Torque Angle Wrench will quickly become the most valuable tool on your assembly line.
Inge rsoll RandÂ’s breadth of line gives you the flexibility to choose the tool that fits your application.
Control
- Multi-function display module and password protected keypad offer quick setup and visual feedback
- Eight programmable torque/angle/speed configurations allow one tool to do the job of eight
- Closed-loop transducer control ensures precise torque and accurate, traceable results
Communication
- Wireless communication option delivers process control with I/O, automatic configuration switching and real-time data archiving for up to 10 tools per PCM
- Plant-wide networking manages both process control inputs and feedback data using Ethernet, Fieldbus or I/O
Comfort
- Compact, cordless assembly tool gives you the freedom to work without constraints
- Lightweight, ergonomically balanced design maximizes operator comfort
- Safe and clean operation – no cords, air hoses or brush dust
Note: BL4011 battery required to use the QXC5AT60PS08
| Technical Specifications | |
|---|---|
| Drive size | 1/2'' square |
| Manufacturer | Ingersoll Rand |
| SKU | QXC5AT60PS08 |
| Max Torque (Ft Lb) | 44.2 |
| Max Torque (Nm) | 60 |
| Max Free Speed (rpm) | 375 |
| Drive Type | 1/2 in. square |
| MPN | QXC5AT60PS08 |
| Features & Benefits | |
| Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process | |
| Red tool highlights provide clear indication of ETS* tool identity vs standard QX tool | |
| Continuously blue light above keypad provides operator assurance that ETS* is ACTIVE | |
