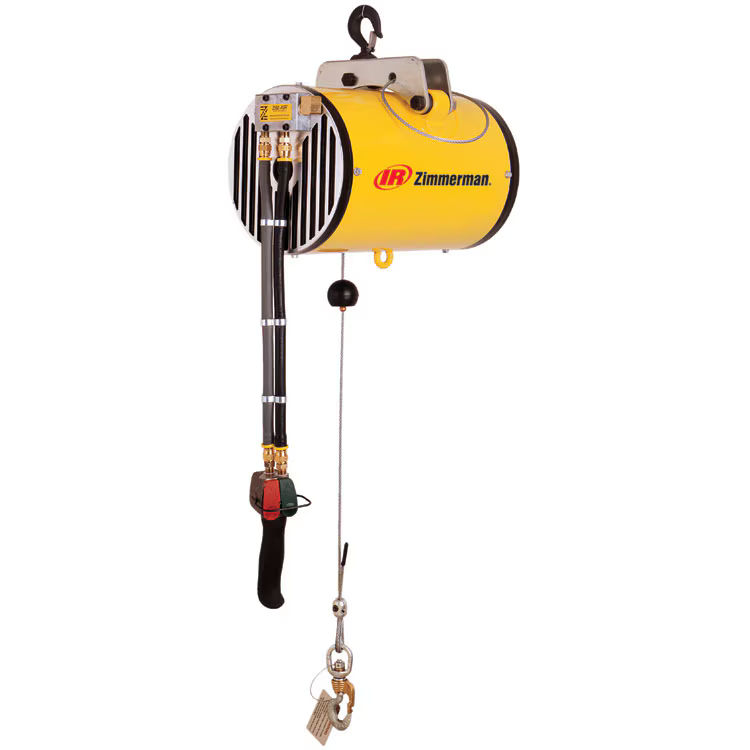

Air Balancer, Pendant, 2000 lbs, 40 in. travel
Ingersoll Rand Zim Air (ZA) Series Balancers (Zimmerman) are the most common air balancer/control combination, designed for high-speed, precision handling of variable weight loads. Up/down movement is accomplished through the use of an ergonomically designed pendant with low-effort, color coded thumb levers.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Ingersoll Rand Air Balancer with pendant control, Tandem Reeved Wire Rope, 2000 lb capacity
Ingersoll Rand Air Balancer with pendant control, Tandem Reeved Wire Rope, 2000 lb capacity, model# ZAW200040. Do you see this Ingersoll Rand Air Balancer with pendant control with a Tandem Reeved Wire Rope and 2000 lb capacity available for a lower price? Contact Customer Service on Price Matching!
Ingersoll Rand ZAW200040
The Ingersoll Rand “ZA"; series balancer is the most common, and is designed for high speed, precision handling of variable weight loads. Up/down movement is accomplished through the use of an ergonomically designed pendant with low-effort, color coded thumb levers. After positioning the load with the pendant control, the unit defaults into a “Float"; mode that allows the operator up to 18 in (457 mm) to manually adjust the load for final positioning.
| Technical Specifications | |
|---|---|
| Model | ZAW200040 |
| Type | Air Balancer |
| Manufacturer | Ingersoll Rand |
| SKU | ZAW200040 |
| Travel (Ft) | 3.3 |
| Travel (mm) | 1016 |
| Series | ZA |
| Travel (in) | 40 |
| Capacity @ 100 psi (lbs) | 2000 |
| Capacity (lbs) | 2000 |
| MPN | ZAW200040 |
| Features & Benefits | |
| All-steel housing, engineered plastic, aircraft grade wire rope and self-closing cast safety hook. | |
| Include precise positioning, a pre-lubricated piston chamber, intuitive speed control, and continuous duty operation. | |
| Standard emergency Chain retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake | |
| If the air supply is ever interrupted, the unit will maintain the load in the suspended position. | |
| Standard emergency Chain retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake,If the air supply is ever interrupted, the unit will maintain the load in the suspended position. | |
