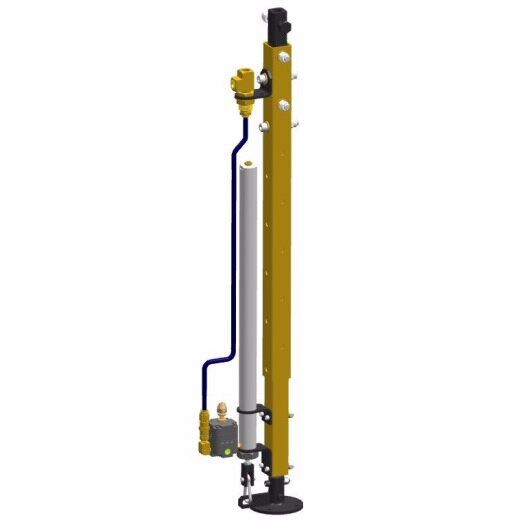

Ingersoll RandIRZ-TT-100
Torque Tube, 100 Nm
Torque and Lift Tubes allow parts to be lifted, lowered, moved and brought into optimum position with minimal force required by the operator. These lift tubes relieve the operator of both part weight and torque reaction of up to 100 Nm, increasing productivity.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
IRZ-TT-100 | Torque Tube, 100 NmIRZ-TT-100
Price on request
Details
Product information
Overview
Torque and Lift Tubes allow parts to be lifted, lowered, moved and brought into optimum working position with minimal force required by the operator. These lift tubes relieve the operator of both part weight and torque reaction up to 100 Nm, resulting in increased workplace productivity. Capable of handling loads up to 60 lbs. Featuring a pneumatic cylinder for lift assist with 20'' travel.
| Technical Specifications | |
|---|---|
| Type | Torque Tube |
| Manufacturer | Ingersoll Rand |
| SKU | IRZ-TT-100 |
| Travel (mm) | 508 |
| Max Torque (Ft Lb) | 74 |
| Max Torque (Nm) | 100 |
| Weight (lbs) | 40 |
| Travel (in) | 20 |
| Capacity (lbs) | 60 |
| MPN | IRZ-TT-100 |
| Features & Benefits | |
| Features 4 delrin wheels for torque reaction and side loading in all 4 directions | |
| Superior linear bearings for effortless vertical travel and maintenance free operation | |
| Optional single or dual trolley suspension kits for suspending from an overhead rail system | |
| Optional 360 degree 3-axis or fixed 2-axis tool holder clamps are available | |
