Datasensing95B061591

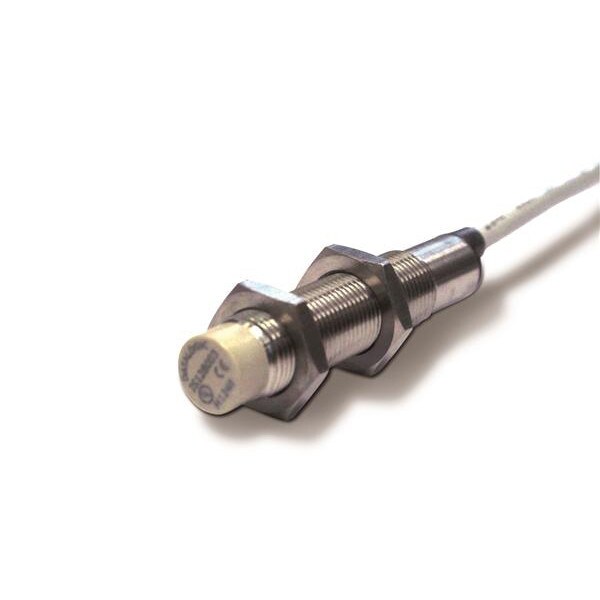

IS-12-C3-S2 | Inductive Sensor, Ø12 Standard - Non Flush 4Mm - Npn No - M12
The inductive proximity sensors belonging to the Basic line were made in the classic cylindrical nickel-plated brass, with diameters ranging from 6.5 to 30 mm. They can detect metal objects from 1.5 mm to 20 mm apart and are available with either a cable or with M8 or M12 standard industrial connectors.
$16.43List $28.01
Save $11.58Total$16.43Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B061591 | IS-12-C3-S2 | Inductive Sensor, Ø12 Standard - Non Flush 4Mm - Npn No - M12IS-12-C3-S2
Total$16.43
1
Details
Product information
Overview
Datalogic IS-12-C3-S2, 95B061591
Inductive Sensor,
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 4 mm |
| Operating Distance | 0 - 3.24 mm |
| Standard Target | 12x12mm FE360 |
| Correction Factor | Copper: 0.4-0.5, Aluminium: 0.4-0.6, Brass: 0.5-0.7, Stainless Steel: 0.7-1.05 |
| Repeat Accuracy | < 3% (UB 24V Ta=23°C 5°C) |
| Hysteresis | < 10% |
| Application Description | M12 standard no-flush mount |
| Functions | Proximity |
| Output Type | NPN |
| Output Function | Normally Open (NO) |
| Switching Frequency | 1 kHz |
| Response Time | 0.5 ms |
| Operating Voltage | 10-30 Vdc |
| No-Load Supply Current | 10 mA |
| Load Current | 200 mA |
| Output Voltage Drop | 1.8V @ 100mA |
| Maximum Ripple Content | 10% |
| LED Indicators | Yellow LED (Output State) |
| Time Delay Before Availability | 50 ms |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission Frequency | ‰¥ 100 kHz |
| Inductive Load Protection | Yes |
| Mounting | Unshielded (Non-flush) |
| Dimensions | Ø12 x 72 mm |
| Housing Material | Nickel-plated brass |
| Connection | M12 Plug |
| Active Head Material | LCP |
| Tightening Torque | 6 Nm |
| Diameter | M12 |
| Approvals | CE, cULus, ECOLAB, DIVERSEY |
| Supplied Accessories | 2 nuts M12x1 |
| Operating Temperature | -25°C to +70°C |
| IP Rating | IP67 |
| MPN | IS-12-C3-S2 |
