Datasensing95B063881

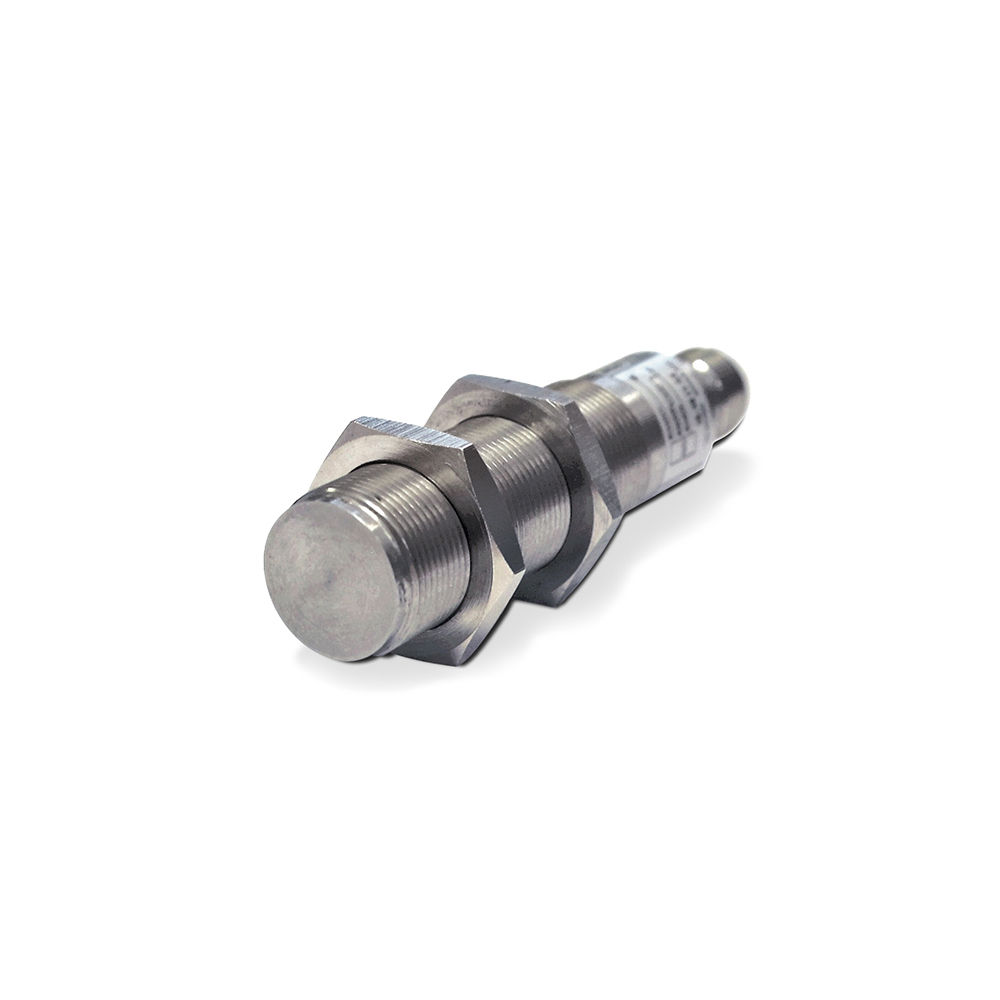

IS-18-L1-S2 | Inductive Sensor, Ø18 Standard - Metal Face Non Flush 8Mm - Pnp No - M12
The inductive proximity sensors belonging to the Metal Face line were made mainly for applications in extreme environments and cannot be solved with standard formats. Thanks to their stainless steel active face and the sturdy housing, they are able to withstand the shocks and the aggressive action of detergents and solvents used in environments subject to frequent high-pressure washing. Version are available with a diameter of 12 or 18 mm with M12 standard connector.
$47.33List $80.69
Save $33.36Total$47.33Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B063881 | IS-18-L1-S2 | Inductive Sensor, Ø18 Standard - Metal Face Non Flush 8Mm - Pnp No - M12IS-18-L1-S2
Total$47.33
1
Details
Product information
Overview
Datalogic IS-18-L1-S2, 95B063881
Inductive Sensor,
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 8 mm |
| Operating Distance | 0 - 6.48 mm |
| Standard Target | 24x24 mm FE360 |
| Correction Factor | Copper: 0.4, Aluminium: 0.45, Brass: 0.5, Stainless Steel: 0.85 |
| Repeat Accuracy | < 1% (Ub 24V, Ta=23°C 5°C) |
| Hysteresis | < 15% |
| Application Description | M18 metal face non-flush mount |
| Function | Proximity |
| Output Type | PNP |
| Output Function | NO |
| Switching Frequency | 500 Hz |
| Response Time | 1 ms |
| Operating Voltage | 10-30 Vdc |
| No-Load Supply Current | 10 mA |
| Load Current | 200 mA |
| Output Voltage Drop | 1.5 V @ 100 mA |
| Maximum Ripple Content | 10% |
| LED Indicators | Yellow LED (Output state) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission Frequency | ‰¥ 100 kHz |
| Inductive Load Protection | Yes |
| Mounting | Unshielded |
| Dimensions | Ø18 x 79 mm |
| Housing Material | Stainless steel |
| Connection | M12 Plug |
| Active Head Material | Stainless steel AISI303 |
| Tightening Torque | 20 Nm |
| Diameter | M18 |
| Approvals | CE |
| Supplied Accessories | 2 nuts M18x1 |
| Operating Temperature | -25°C to +70°C |
| IP Rating | IP67 |
| MPN | IS-18-L1-S2 |
