Datasensing95B064800
IS-65-M2-03 | Inductive Sensor, Ø6,5 Short Stainless Steel - Flush 1,5Mm - Pnp Nc - 2M Cable

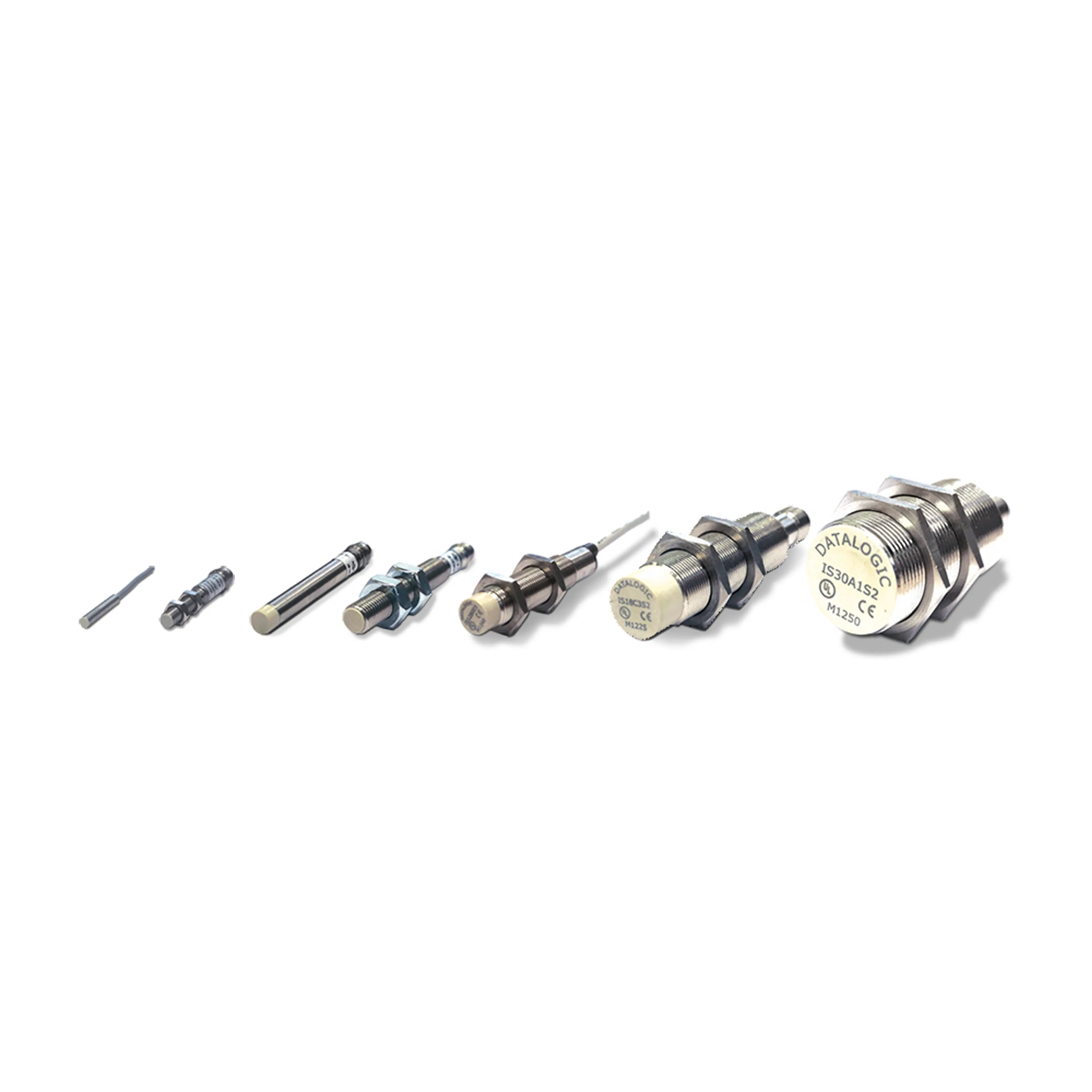

The inductive proximity sensors belonging to the line Stainless Steel were made in sturdy cylindrical housing made of stainless steel, with diameters ranging from 4 to 30 mm, for use in hygienic environments, as well as in harsh environments subjected to frequent wash down thanks to their IP67 protection degree. Versions are available with outputs cable or with M8 or M12 standard industrial connectors.
$32.62List $36.65
Save $4.03Total$32.62Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B064800 | IS-65-M2-03 | Inductive Sensor, Ø6,5 Short Stainless Steel - Flush 1,5Mm - Pnp Nc - 2M CableIS-65-M2-03
Total$32.62
1
Details
Product information
Overview
Datalogic IS-65-M2-03, 95B064800
Inductive Sensor,
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 1.5 mm |
| Operating Distance | 0 - 1.21 mm |
| Standard Target | 8x8 mm FE360 |
| Correction Factor | Copper: 0.2-0.5, Aluminium: 0.3-0.5, Brass: 0.4-0.6, Stainless Steel: 0.7-0.9 |
| Repeat Accuracy | < 3% (UB 24V Ta=23°C 5°C) |
| Hysteresis | < 10% |
| Application Description | D6.5 short case flush mount |
| Functions | Proximity |
| Output Type | PNP |
| Output Function | Normally Closed (NC) |
| Switching Frequency | 1 kHz |
| Response Time | 0.5 ms |
| Operating Voltage | 10-30 Vdc |
| No-Load Supply Current | 10mA |
| Load Current | 100mA |
| Output Voltage Drop | 1.2V @ 100mA |
| Maximum Ripple Content | 10% |
| LED Indicators | Yellow LED output state |
| Time Delay Before Availability | 50ms |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission Frequency | ‰¥ 100kHz |
| Inductive Load Protection | Yes |
| Mounting | Shielded |
| Dimensions | Ø6.5 x 40 mm |
| Housing Material | Stainless steel |
| Connection | 2m PVC Cable |
| Active Head Material | LCP |
| Diameter | 6.5 mm |
| Approvals | CE, cULus |
| Operating Temperature | -25°C to +70°C |
| Mechanical Protection | IP69K |
| MPN | IS-65-M2-03 |
