Datasensing95B065380

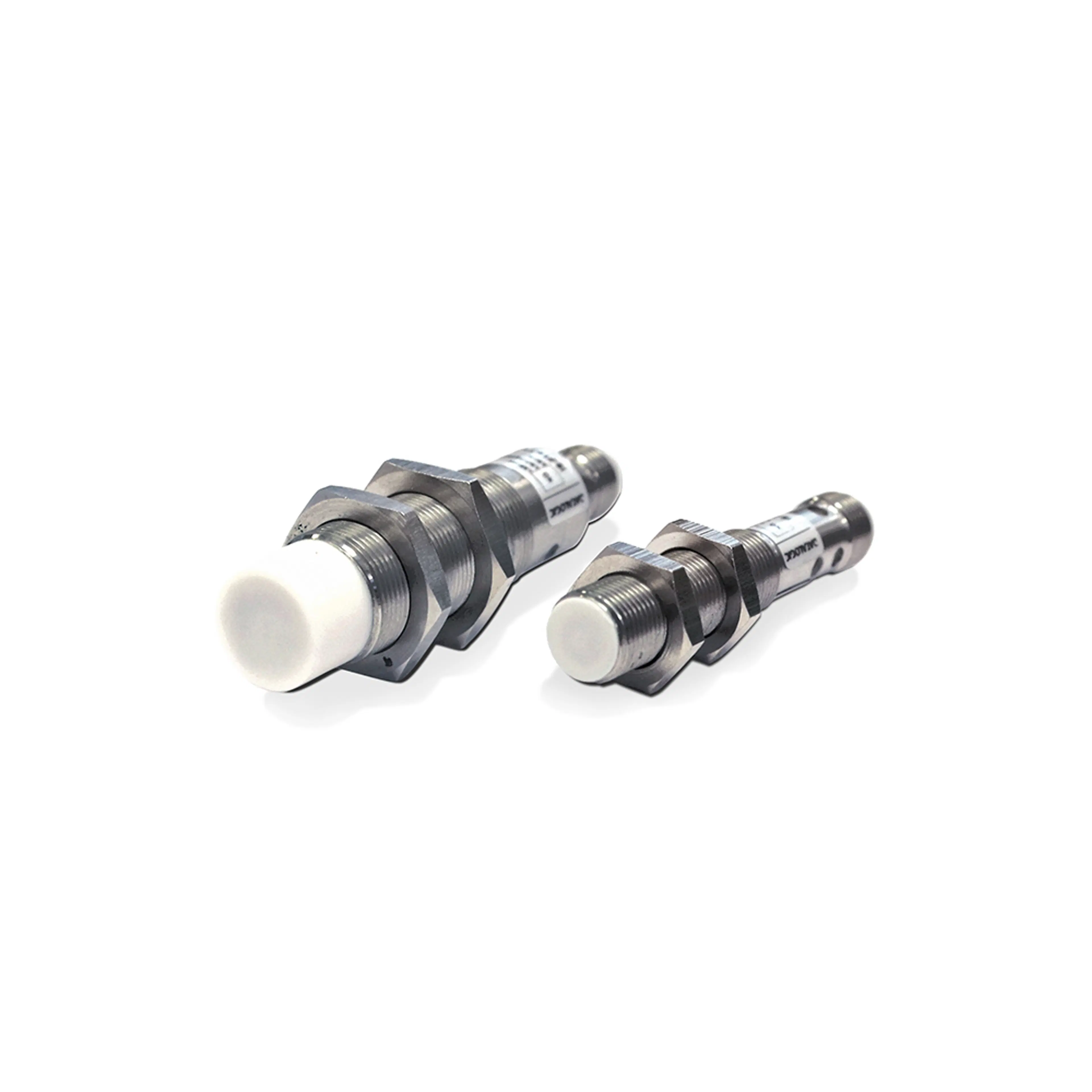

IS-F18-S1-S2 | Inductive Sensor, Ø18 Standard Stainless Steel - Field Immune Flush 5Mm - Pnp No - M12
The inductive sensors of the Weld Field Immune line are able to work properly in the presence of magnetic fields, and have been designed with a greater robustness to withstand the harsh environment associated with the cells of welding. These models feature a PTFE active face offering superior resistance to weld-slag buildup.
$45.57List $77.68
Save $32.11Total$45.57Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B065380 | IS-F18-S1-S2 | Inductive Sensor, Ø18 Standard Stainless Steel - Field Immune Flush 5Mm - Pnp No - M12IS-F18-S1-S2
Total$45.57
1
Details
Product information
Overview
Datalogic IS-F18-S1-S2, 95B065380
Inductive Sensor,
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 5 mm |
| Operating Distance | 0 - 4.05 mm |
| Standard Target | 18x18 mm FE360 |
| Correction Factor | Copper: 0.4, Aluminium: 0.45, Brass: 0.5, Stainless Steel: 0.85 |
| Repeat Accuracy | < 1% (UB 24V Ta=23°C 5°C) |
| Hysteresis | < 15% |
| Application Description | M18 weld field immune flush mount |
| Functions | Proximity |
| Output Type | PNP |
| Output Function | NO |
| Switching Frequency | 1 kHz |
| Response Time | 0.5 ms |
| Operating Voltage | 10-30 Vdc |
| No-Load Supply Current | 10mA |
| Load Current | 200 mA |
| Output Voltage Drop | 1.5V @ 100mA |
| Maximum Ripple Content | 10% |
| LED Indicators | Yellow LED output state |
| Time Delay Before Availability | < 0.1 ms |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission Frequency | ‰¥ 100 kHz |
| Inductive Load Protection | Yes |
| Mounting | Shielded |
| Dimensions | Ø18 x 73 mm |
| Housing Material | Stainless steel |
| Connection | M12 Plug |
| Active Head Material | PTFE |
| Diameter | M18 |
| Approvals | CE |
| Operating Temperature | -25°C to +70°C |
| IP Rating | IP67 |
| MPN | IS-F18-S1-S2 |
