SF Automatic Solder-Feeder Stations
This Solder Feeder allows you to feed solder wire automatically from any position.
Models Available
2 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Price | Qty | |
|---|---|---|---|
 SF-110VBSF-110VB | 100-120V Automatic Solder-Wire Feeder Station$1,830.00 | $1,830.00 | 1 | View details |
| SF-210VBSF-210VB | 230V Automatic Solder-Wire Feeder Station$1,830.00 | $1,830.00 | 1 | View details |
Details
Product information
Overview

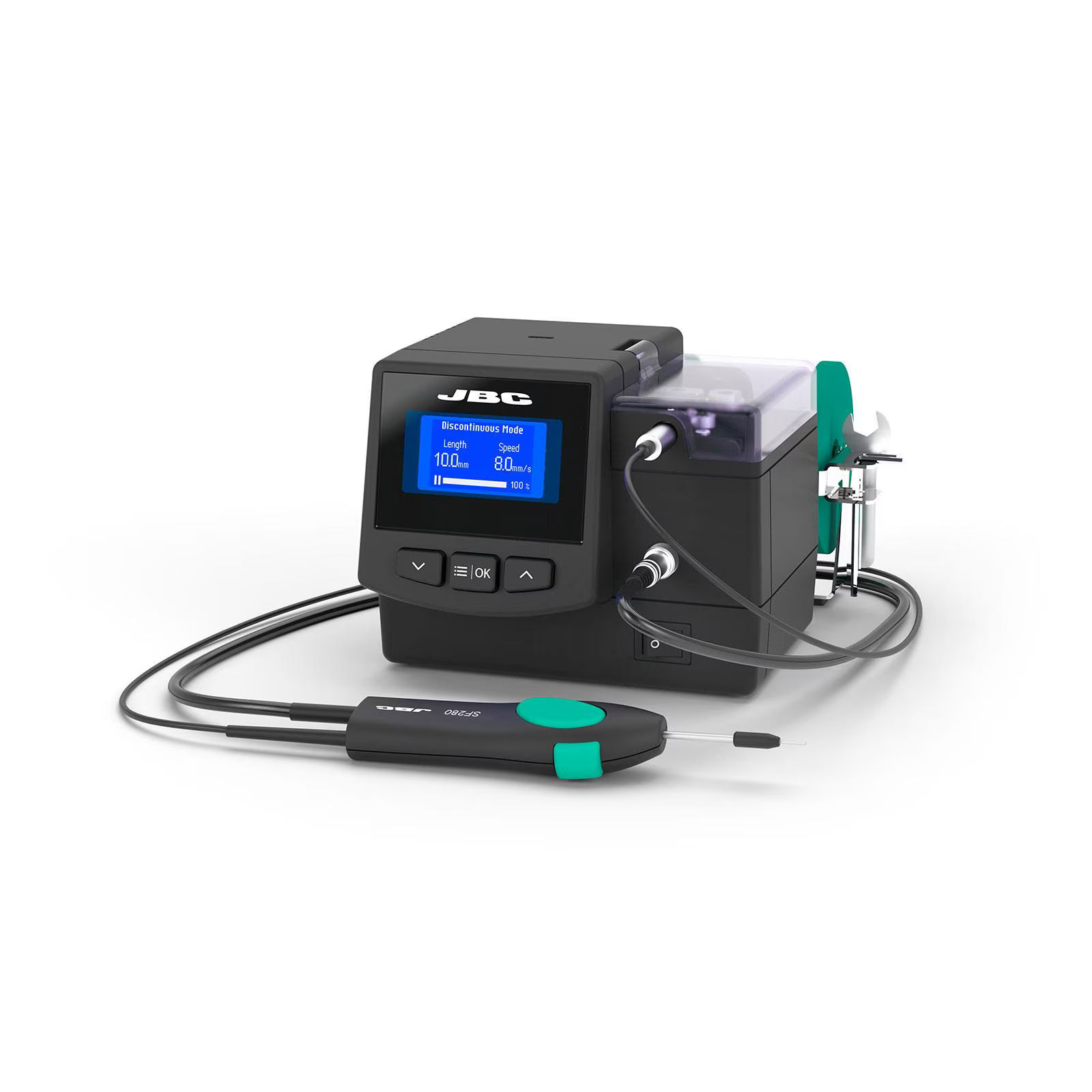

JBC SF Automatic Solder-Feeder Station
This Solder Feeder allows you to feed solder wire automatically from any position.
You can easily configure parameters such as dispensed wire speed and length. You can also monitor the solder consumption thanks to integrated counters.
3 working modes:Continuous, discontinuous and program mode. In each program you can configure up to 3 steps with different dispensed wire length and speed. Up to 35 programs can be executed, cyclically programmable.
Solder Wire PerforationThe solder feeder features a small blade that perforates the solder wire down to the flux core while feeding it. This perforation process allows better flux flow and outgassing and avoids solder and flux splashing when soldering
SF includes the ergonomic SF280 Automatic Solder Feed Handle and the Ø 1 mm GSF10V Guide Set. Compatible Guide Kits are also without Solder Wire Perforation available.
