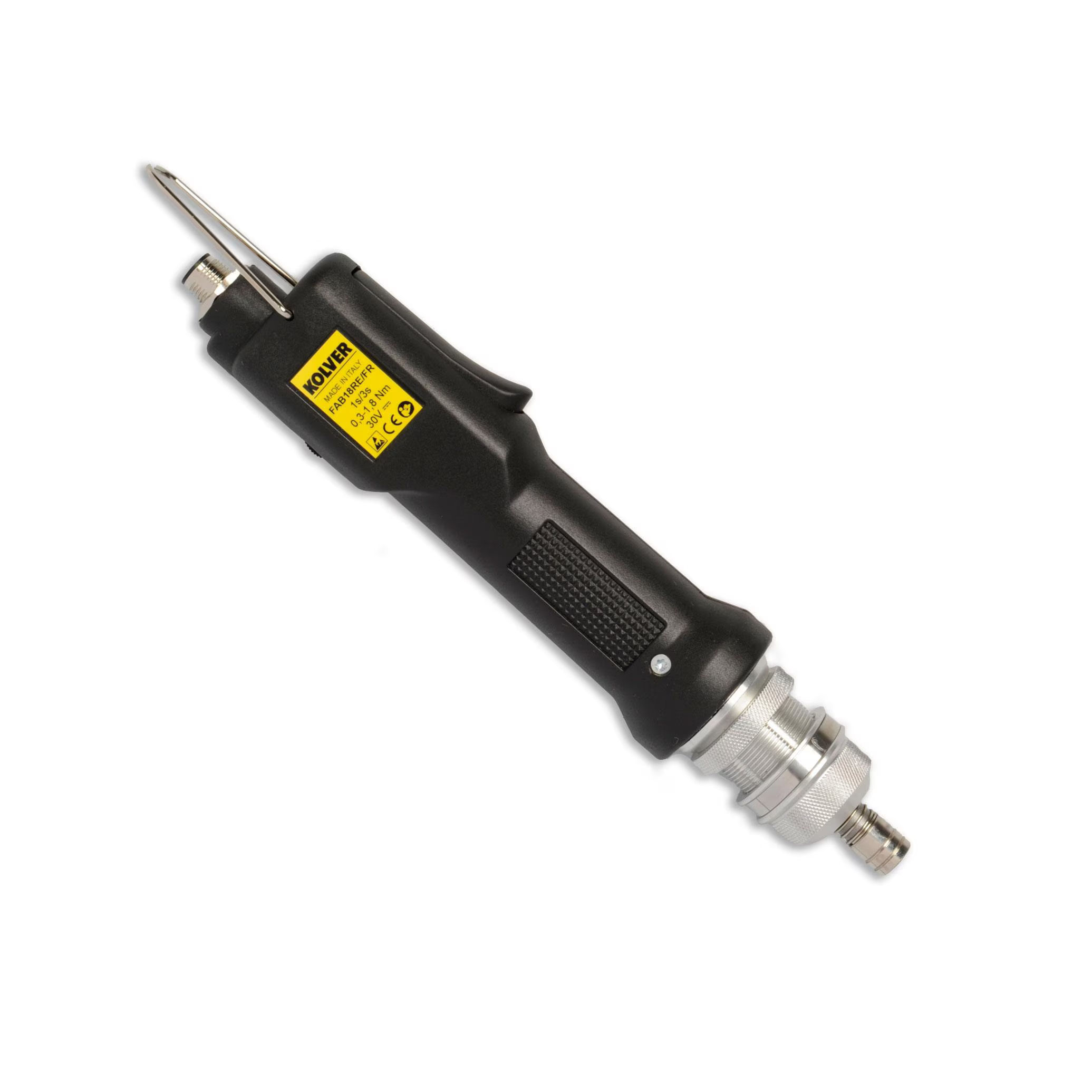

KBL30FR | Lever start, clutch controlled, brushless inline driver, 6.2-25.6 in.lb, 650-1000 RPM image 1
Click the image to zoom
Kolver
  • Free shipping on orders over $999
  • Over 23 years in business
  • Free expert advice
  • In-house service and calibration department
  • Low price guarantee
  • Safe and secure checkout
KolverKBL30FR

Lever start, clutch controlled, brushless inline driver, 6.2-25.6 in.lb, 650-1000 RPM

This KBL series screwdriver features the brushless motors and clutch torque control.

$835.05List $879.00
Save $43.95
Total$835.05Taxes & shipping at checkout
Quantity
1
  • Free UPS Ground over $999.99
  • Factory-authorised service
Documents4 files

Recommended Accessories

2 items

Add-on accessories that can be purchased alongside this product.

ProductModelSeriesPriceQty
EDU1BL003000 | EDU1BL | Adjustable speed Control Unit$391.88EDU1BLKBL/FR$391.881View details
EDU1FR010010FR | EDU1FR | Single output, adjustable speed Control Unit$319.77EDU1FRFAB, RAF$319.771View details

Details

Product information

Overview

Kolver Electric Screwdriver with Lever start, clutch controlled, brushless inline driver, 6.2-25.6 in.lb, 650-1000 RPM

Electric Screwdriver with Lever start, clutch controlled, brushless inline driver, 6.2-25.6 in.lb, 650-1000 RPM, model# KBL30FR, available to order online from Flexible Assembly Systems. Do you see this Kolver Electric Screwdriver available elsewhere for a lower price? Contact Customer Service to price match!

KBL30FR by Kolver

The new KBL mechanical clutch screwdrivers feature high-quality Swiss brushless motors, the perfect solution for clean room applications thanks to zero emissions of coal dust and other pollutants into the working environment; at the same time the precision of clutch screwdrivers guarantees an accuracy of ±7% or better. Magnetic start and clutch switches assure better results and longer life. Extremely small and lightweight for utmost operator comfort and with advanced ergonomic design, they ensure very low noise level, minimum vibrations, maximum safety (low supply voltage), lasting performance as well as maintenance free operation. Inline and automation models are already available, pistol and angle models will follow shortly. All KBL drivers come standard with ergonomically advanced ESD-safe body, 2.5 m connection cable and suspension bail. The heavy duty cables and connectors, developed for robotic applications, are made of antistatic dissipative material for a safe use in EPA environment. The absence of maintenance operations guarantees high productive continuity. All KBL screwdrivers work in combination with our new EDU1BL controllers but can be also used with our standard EDU1FR controllers. This option will allow existing customers to replace FAB & RAF drivers with no need to replace controllers.

Note: EDU1BL, EDU1FR Power supply required to use the KBL30FR

Technical Specifications
Min Torque - In Lbs6.2
Max Torque - In Lbs26.6
Min Torque - Nm0.7
Max Torque - Nm3
Start TypeLever Start
Clutch TypeAuto Shut Off
StyleInline;"Drive Size=1/4'' hex
Free Speed - rpm1000
Length - Inches10
TypeElectric Screwdriver
Output1/4 in. Hex
Stock CodeB
Power supplyEDU1BL, EDU1FR
MPNKBL30FR
Features & Benefits
Easy to install and operate
Maintenance free
No brush means zero carbon dust and other pollutants
Safe and ergonomic
