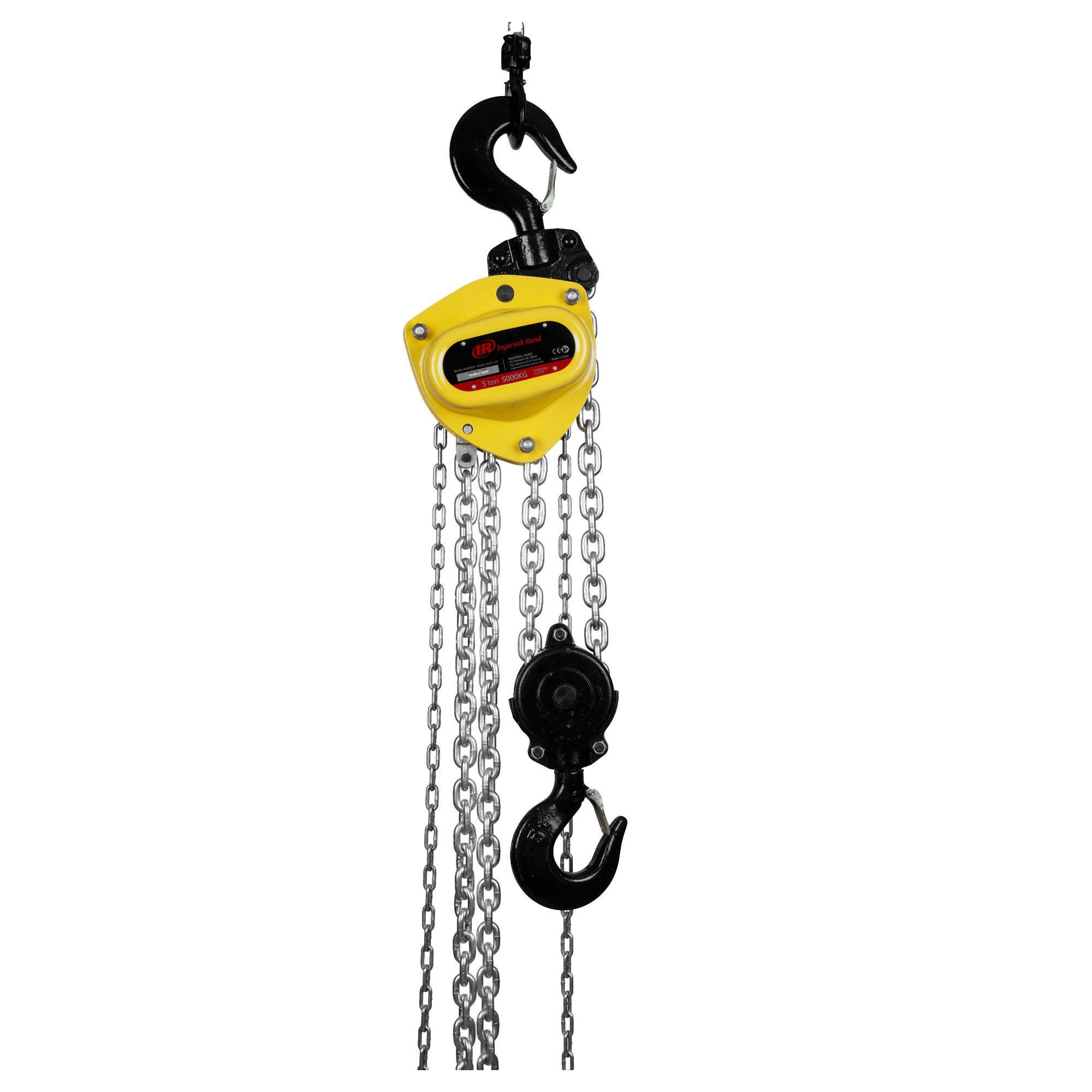

Ingersoll RandKM750-20-18
Chain Block, 7.5T ,20'Lift
KM750-20-18 | Chain Block, 7.5T ,20'Lift
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
KM750-20-18 | Chain Block, 7.5T ,20'LiftKM750-20-18
Price on request
Details
Product information
Overview
Ingersoll Rand KM750-20-18
Chain Block, 7.5T ,20'Lift
Ingersoll Rand KM750-20-18 Chain Block, 7.5T ,20'Lift| Technical Specifications | |
|---|---|
| Capacity | 16500 |
| Lift Height | 20 |
| Headroom | 29.1 |
| Chain Fall | 3 |
| Brake Type | Double Pawl, Disc Brake System |
| Reeving | Double |
| Weight (lbs) | 180.6 |
| Weight (kg) | 81.92 |
| Length (in) | 7.6 |
| Length (mm) | 193 |
| Width (in) | 14.7 |
| Width (mm) | 373 |
| Height (in) | 29.1 |
| Height (mm) | 739 |
| Housing Material | Steel |
| Color | Yellow |
| MPN | KM750-20-18 |
