PLUTO3D/TA/LED | 3 Nm 1/4'' hex torque angle screwdriver, 1300 rpm
130203/TA/LED | PLUTO3D/TA/LED | 3 Nm 1/4'' hex torque angle screwdriver, 1300 rpm
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 EDU2AE/TOP/TA034000/TOP/TA | EDU2AE/TOP/TA | Programmable Control Unit with Interface, 8 torque angle programs, select by barcode$2,826.73 | $2,826.73 | 1 | View details |
Details
Product information
Overview

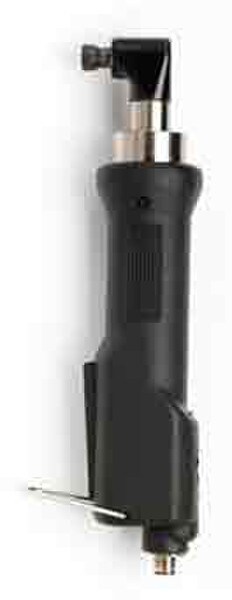

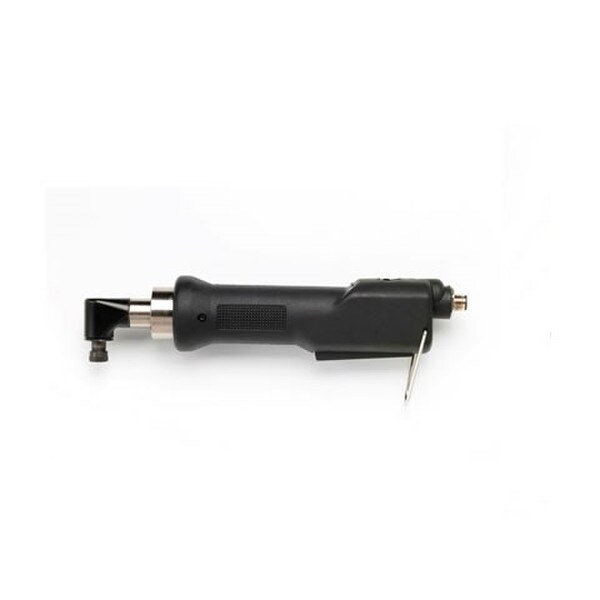

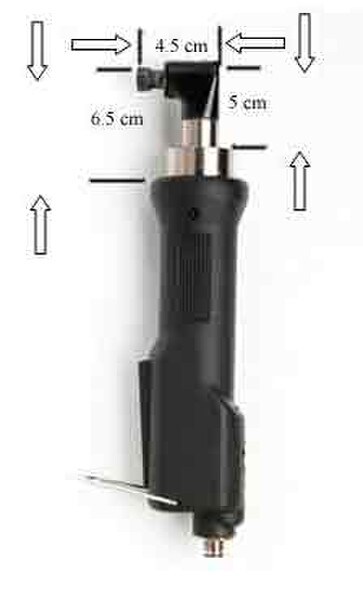

Kolver PLUTO3D/TA/LED
3 Nm 1/4" hex torque angle screwdriver, 1300 rpm
Industrial tightening may require different control strategies and solutions. The most common cases are: torque control with angle monitoring and angle control with torque monitoring. Kolver Multi- Torque Torque & Angle controllers can manage all such strategies, with up to 8 individual P-sets.
The main parameters to be controlled are the tightening torque and the rotation angle of the screw, either with torque or angle priority. The motor stops automatically when the pre-set angle and torque value have been reached and an indication of OK cycle (green led turned on) is given, otherwise a red led turns on if the tightened screw doesn’t match the pre-set parameters. The final torque and angle values are also displayed.
| Technical Specifications | |
|---|---|
| SKU | 130203/TA/LED |
| Manufacturer | Kolver |
| MPN | PLUTO3D/TA/LED |
