EDU Controller
EDU2AE control units are meant to be used in combination with Kolver current controlled MITO and PLUTO and/or clutch PLUTO screwdrivers.
Models Available
6 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Type | Price | Qty | |
|---|---|---|---|---|

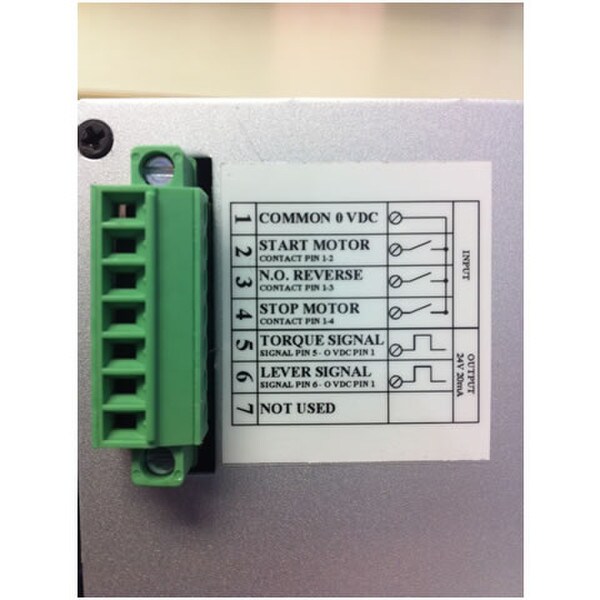

 EDU1BL/SG003000/SG | EDU1BL/SG | Control Unit, torque, error and lever output signals, start/stop/reverse input signals$636.41 | — | $636.41 | 1 | View details |

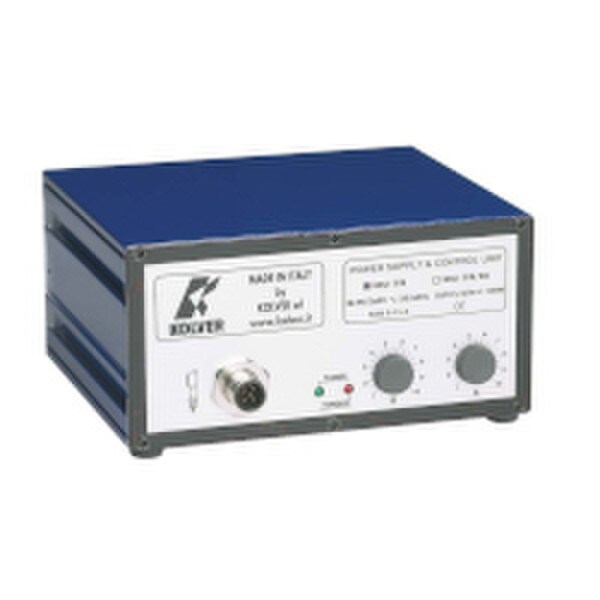

 EDU1FR010010FR | EDU1FR | Single output, adjustable speed Control Unit$319.77 | Controller | $319.77 | 1 | View details |
| EDU1FR/SG010010/FR/SG | EDU1FR/SG | Control Unit, Single output, remote start$596.70 | — | $596.70 | 1 | View details |
 EDU2AE/FR032000/FR | 032000/FR-Kolver | Single Output Programmable Controller with Screw Counting, I/O and RS232 Data Export$1,105.61 | Tool Controller | $1,105.61 | 1 | View details |
 EDU2AE/HPro032000/HPRO | EDU2AE/HPRO | Programmable Control Unit with Interface, torque value, screw counter$1,106.66 | Tool Controller | $1,106.66 | 1 | View details |
 EDU2AE/TOP/EEDU2AE/TOP/E | Control Unit, 8 different programs - selection by barcode, socket tray, switchbox, remote programming$2,524.72 | Tool Controller | $2,524.72 | 1 | View details |
Details
Product information
Overview
Kolver EDU Controller
For the PLUTO series the EDU2AE gives you all the advantages of precision torque controlled electric tools at a fraction of the price of transdurized tools. Additional features: torque, adjustable torque and speed forward and reverse, hard or soft joint, slow start time, min and max fastening time, torque control right & left and only on HP model: screw counter, max torque time, autoreverse, torque value display (Nm or in.lbs). Standard on all units: remote start, remote reverse, torque reached signal, error signal, emergency stop.
| Features & Benefits | |
|---|---|
| 8 independent programs: with one PLUTO screwdriver you can replace 8 conventional screwdrivers. | |
| Each program can accept the following settings: Torque, Speed, Type of Joint, Number of Screws to be tightened | |
| Password protected: no tampering from anybody. | |
| Statistics menu with summary of work done: at the end of the day you\'ll know how many cycles have been performed correctly, how many wrongly, total number of screws etc. | |
| Each program can accept the following settings: Torque | |
| Speed | |
| Type of Joint | |
| Number of Screws to be tightened |
