LINART | Torque Reaction Arm, 221 in lbs, 4.5 - 29.1 in. reach
Guaranteeing smoothness, handiness ad accuracy. New technical solutions allow solidity, stability and flexibility both in height and in 360° rotation.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Min Reach (in) | Max Reach (in) | Price | Qty | |
|---|---|---|---|---|---|---|
 LINAR1010681 | LINAR1 | Torque Reaction Arm, 221 in lbs, 7.2'' - 26.2'' reach$810.92 | LINAR1 | 7.2 | 26.2 | $810.92 | 1 | View details |
 TLS1/LINART010683/TLS1 | TLS1/LINART | Intelligent Torque Reaction Arm, 221 in lbs, 4.5 - 29.1 in. reach$4,936.58 | TLS1/LINART | 4.5 | 29.1 | $4,936.58 | 1 | View details |
Details
Product information
Overview

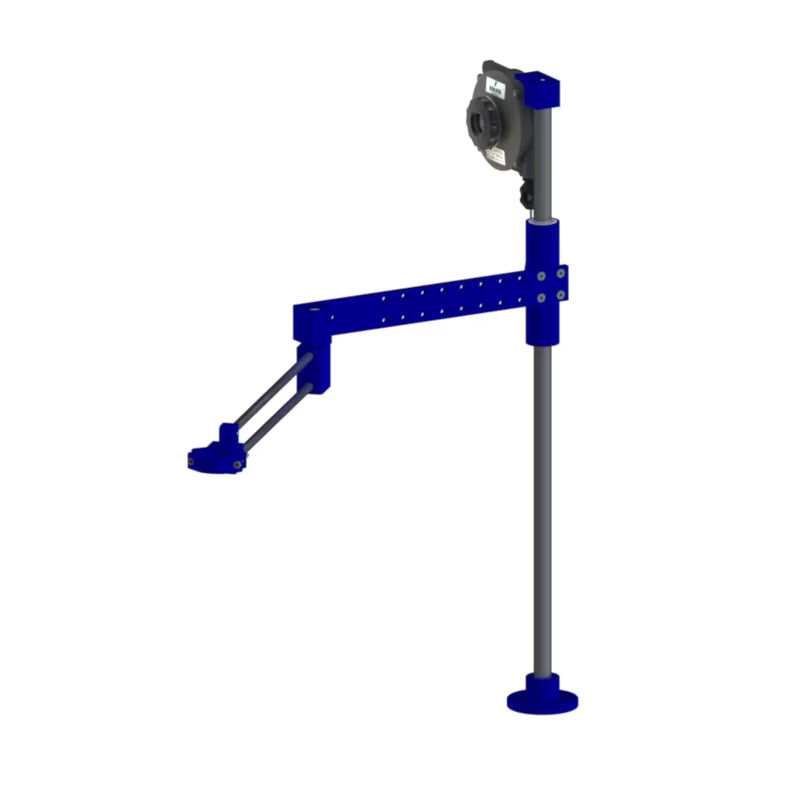

Kolver Torque Reaction Arm, 221 in lbs, 4.5 - 29.1 in. reach
Torque Reaction Arm, 221 in lbs, 4.5 - 29.1 in. reach, model# LINART, available to order online from Flexible Assembly Systems. Do you see this Kolver Torque Reaction Arm available elsewhere for a lower price? Contact Customer Service to price match!
LINART by Kolver
Torque reaction arms have been designed to eliminate the reaction that screwdrivers generate when they stop at the pre-set torque (Up to 442 in/lbs). Carbon (CAR) arms are lighter and more resistant thanks to their carbon structure. CAR, LINAR and SAR XYZ arms are also available with TLS1 positioning system, which allows to operate only when the screwdriver is positioned on the correct screw. The system consists of a torque reaction arm with encoder and linear metering sensor + TLS1 Keypad for easy programming and monitoring + cable to be selected between code 260004 (for EDU2AE models and EDU1BL/SG) and code 260003 (for EDU1FR/SG).
| Technical Specifications | |
|---|---|
| Model | LINART |
| Maximum Tool Weight (lbs) | 3.1 |
| Min Reach (in) | 4.5 |
| Max Reach (in) | 29.1 |
| Type | Torque Reaction Arm |
| Manufacturer | Kolver |
| SKU | 010683 |
| Max Torque (In Lb) | 221 |
| Maximum Reach (In) | 29.1 |
| Weight (lbs) | 9.6 |
| Series | LINAR |
| Capacity (lbs) | 3.1 |
| MPN | LINART |
