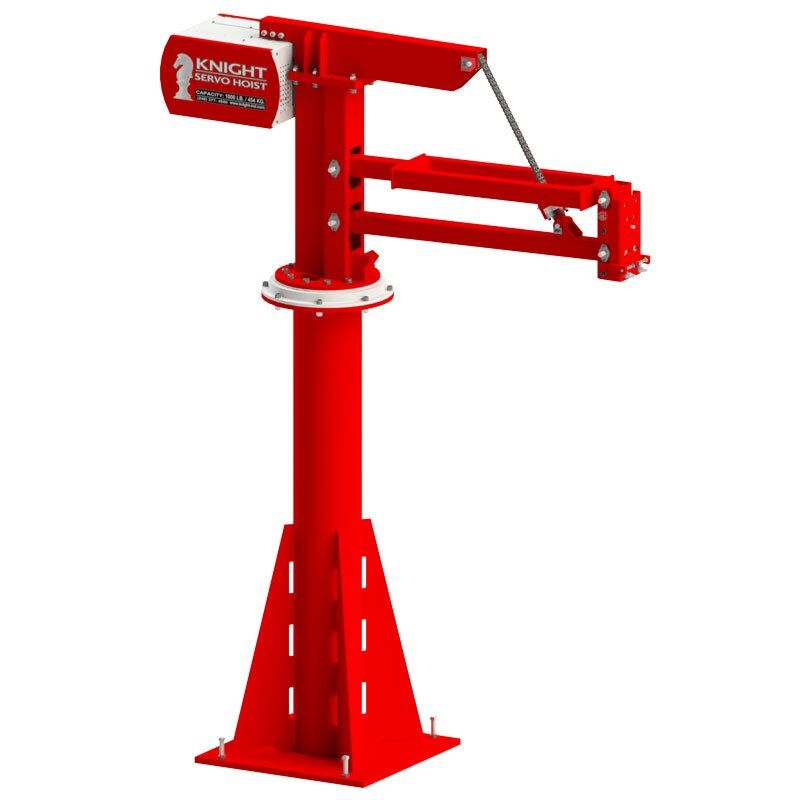

Single Phase, Floor Mounted Articulating Arm Servo Hoist, 2000 lb capacity

Knight Global's KSHFA Series Floor Mounted Servo Hoist Arm is an Intelligent Assist Device (IAD) that enables an operator to precisely locate or float a load in the "Z" direction (vertical axis) with speed, precision, quality and unmatched reliability. The KSHFA Series Servo Arm allows for an overhead varied reach within a work cell or station. Knight's Floor Mounted KSHFA Series is most commonly used when overhead clearances or support structures will not accommodate an overhead rail system.

Knight's Servo Hoist technology becomes an extension of an operator's natural movements and greatly improves accuracy, responsiveness and repeatability; which increases overall safety, productivity and quality. The inherent benefits include: eliminating wasted motions, reduced reaction times, and minimal effects of inertia with heavy loads.

Mechanical Features:
• Speeds: Up to 98 ft. per min. [30mpm].
• Up to 1,500 lbs. [680kg].
• Maximum Reach: Up to 48 in. [1219mm]. (Boom/ End Effector length not Included)
• Safety Rating of 125%.
• Floor Mounted Pedestal Heights: 8 ft. [2.4m] - 10 ft. [3.0m].
• Fail Safe Brake.
• Heavy Duty Roller Chain.
• Chain Lengths: 12 ft. [365cm] - 20ft. [609cm].
• Sealed Worm Style Gearbox.
• H5 Rated (Continuous Duty Cycle).

Software Features:
• Programming and Diagnostic
• Communication Ports.
• Virtual Travel Limits.
• Speed Reduction Zones.
• Impact Limiting.
• Active Dampening.
• Standard Float Mode.
• Programmable Overload Capability.
