Atlas Copco8423 0305 10
LMB27 S014 | LMB27 S014

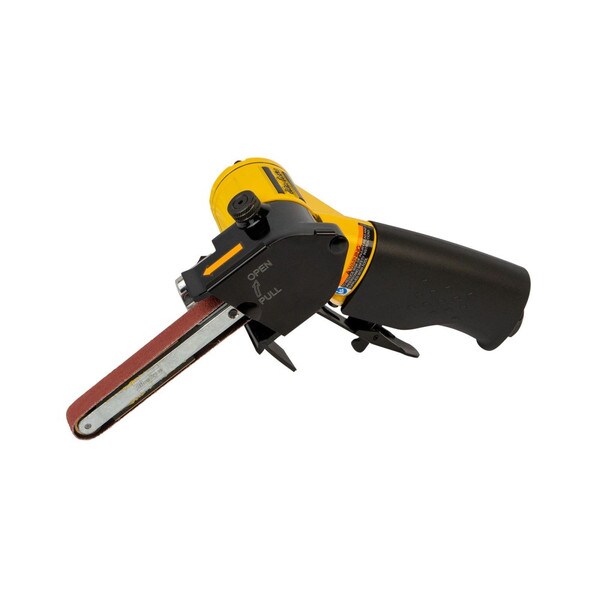

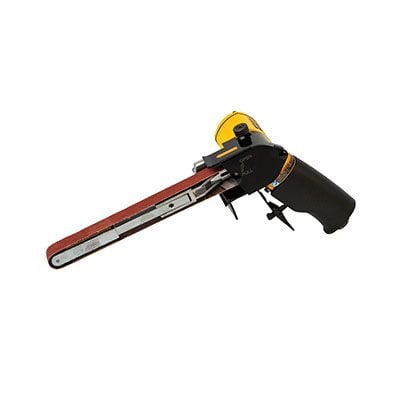

The Belt Sander LMB is suitable for precision sanding where access with conventional sanders is difficult, such as spherical surfaces and tubes. Its robust framework has an enhanced functionality as it caters sanding operation in minimal vibration and high power-to-weight ratio.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8423 0305 10 | LMB27 S014 | LMB27 S014LMB27 S014
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/4 in |
| airinletthreadnpt | 1/4 in |
| beltdimension | 13X305 mm |
| length | 282 mm |
| rechosesize | 10 mm |
| weight | 2 lb |
| pro | No |
| beltspeed | 1400 m/min |
| maxfreespeed | 25000 r/min |
| airconsumptionatfreespeed | 10 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 100 dB(A) |
| soundpressure | 89 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO11148-8:2011 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO11148-8:2011 |
| maxoutput | 0.275 kW |
| lubricationfree | Yes |
| MPN | LMB27 S014 |
| Features & Benefits | |
| High power-to-weight ratio | |
| Speed governor for optimal sanding speed | |
| Quick exchange of abrasives | |
| Better accessibility | |
