Atlas Copco8423 0305 20
LMB35 S015 | LMB35 S015

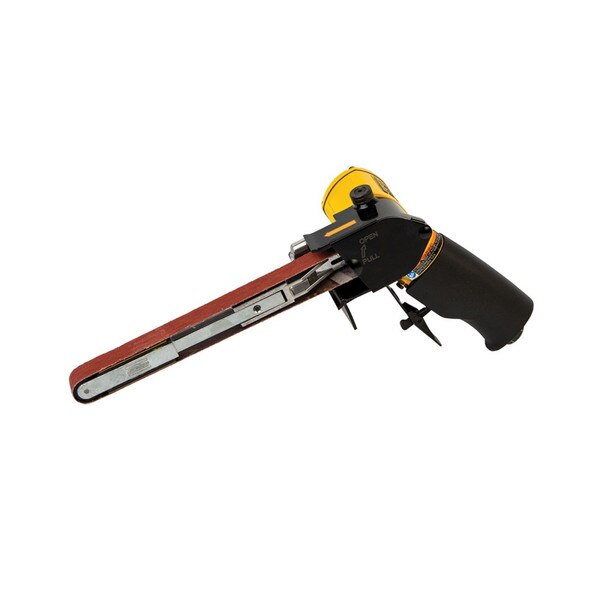

The Belt Sander LMB is suitable for precision sanding where access with conventional sanders is difficult, such as spherical surfaces and tubes. Its robust framework has an enhanced functionality as it caters sanding operation in minimal vibration and high power-to-weight ratio.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8423 0305 20 | LMB35 S015 | LMB35 S015LMB35 S015
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/4 in |
| airinletthreadnpt | 1/4 in |
| beltdimension | 19X520 mm |
| length | 302 mm |
| rechosesize | 10 mm |
| weight | 2.2 lb |
| pro | No |
| beltspeed | 1500 m/min |
| maxfreespeed | 22000 r/min |
| airconsumptionatfreespeed | 11 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 94 dB(A) |
| soundpressure | 83 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO11148-8:2011 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO11148-8:2011 |
| maxoutput | 0.35 kW |
| lubricationfree | Yes |
| MPN | LMB35 S015 |
| Features & Benefits | |
| High power-to-weight ratio | |
| Speed governor for optimal sanding speed | |
| Quick exchange of abrasives | |
| Better accessibility | |
