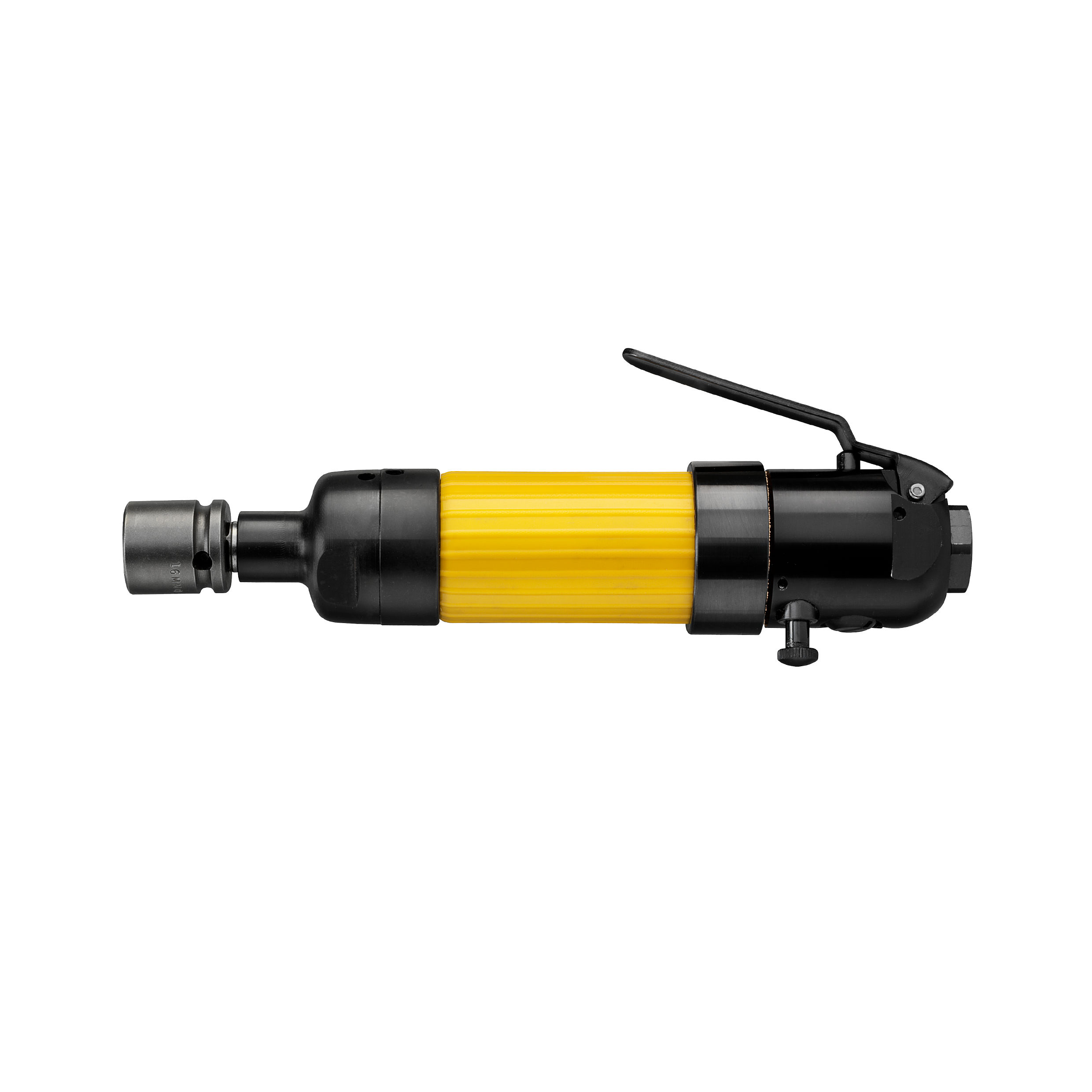

LMS08 SR10 | Inline Impact Wrench, 7 - 65 Nm, 12500 rpm, 3/8'' square
Designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed.
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Atlas Copco 8434 1081 11
Straight, Non-Shut Off, Impact Wrench, 5-33 Ft Lb
Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.
Features:
- Fast tightening and disassembly
- Negligible reaction force
- Low weight
- High power-to-weight ratio
- Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
- Soft-start throttle
- GRS, Grease Retaining System
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| boltsizemax | 8 mm |
| boltsizemin | 6 mm |
| csdistance | 20 mm |
| length | 184 mm |
| outputsize | 3/8' |
| rechosesize | 6.3 mm |
| squaredrivesize | 3/8 in |
| weight | 1.9 lb |
| impactspermin | 1650 per-min |
| modeltype | Straight |
| outputtype | Square, Male |
| shutoff | No |
| maxtorque | 65 Nm |
| torquerangemax | 45 Nm |
| torquerangemin | 7 Nm |
| freespeed | 12500 r/min |
| airconsumption | 5.5 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 96 dB(A) |
| soundpressure | 85 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertainty | - m/s² |
| vibrationvalue | 5.6 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO 11148-6:2012 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO 11148-6:2012 |
| MPN | LMS08 SR10 |
| Features & Benefits | |
| Extremely fast tightening and loosening | |
| Longer service life | |
| Reduced risk of vibration related injuries | |
| Greater operator comfort | |
