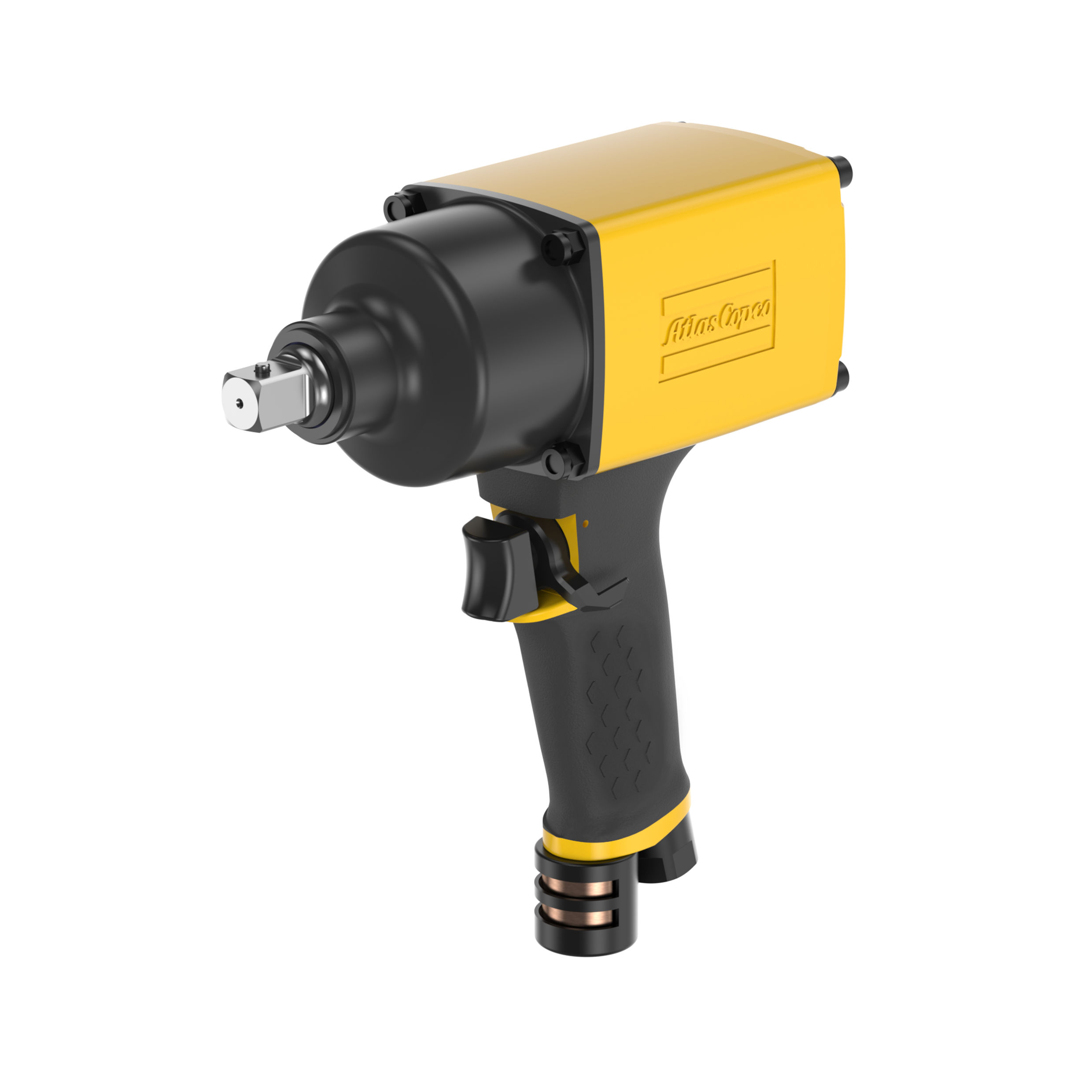

LMS38 HR13 | Impact Wrench, 40 - 375 Nm, 8000 rpm, 1/2'' square
Designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed.
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Atlas Copco 8434 1380 00
Pistol Grip, Non-Shut Off, Impact Wrench, 29-276 Ft Lb
Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.
Features:
- Fast tightening and disassembly
- Negligible reaction force
- Low weight
- High power-to-weight ratio
- Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
- Soft-start throttle
- GRS, Grease Retaining System
| Technical Specifications | |
|---|---|
| airinletthread | 3/8 in |
| boltsizemax | 16 mm |
| boltsizemin | 14 mm |
| csdistance | 29 mm |
| length | 167 mm |
| outputsize | 1/2' |
| rechosesize | 10 mm |
| squaredrivesize | 1/2 in |
| weight | 5.7 lb |
| impactspermin | 1350 per-min |
| modeltype | Pistol |
| outputtype | Square, Male |
| shutoff | No |
| maxtorque | 850 Nm |
| torquerangemax | 375 Nm |
| torquerangemin | 40 Nm |
| freespeed | 8000 r/min |
| airconsumption | 10 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 99 dB(A) |
| soundpressure | 88 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertainty | 1.5 m/s² |
| vibrationvalue | 3.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO 11148-6:2012 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO 11148-6:2012 |
| MPN | LMS38 HR13 |
| Features & Benefits | |
| Extremely fast tightening and loosening | |
| Longer service life | |
| Reduced risk of vibration related injuries | |
| Greater operator comfort | |
