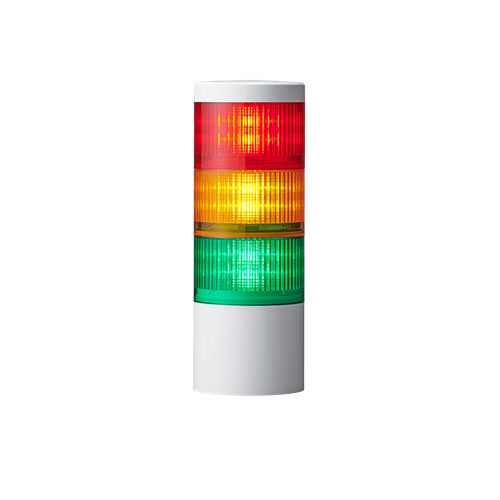

Outdoor rated, IP69K, 100mm diameter, 3-tier, 24V DC, direct mount Signal Tower. Flashing, simulated rotation lighting patterns with Red, Amber, Green LED
LR10-302WJNW-RYG | Outdoor rated, IP69K, 100mm diameter, 3-tier, 24V DC, direct mount Signal Tower. Flashing, simulated rotation lighting patterns with Red, Amber, Green LED
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
100mm IP69K Washdown Safe 3-Tier LED Stack Light – 24V DC
Designed for demanding industrial environments, this 100mm 3-tier LED stack light provides clear, highly visible machine status indication while offering exceptional protection against dust, high temperatures, and high-pressure washdown conditions. With a durable IP69K rating, this industrial signal tower light is ideal for applications where reliable performance and frequent cleaning are essential.
The direct-mount tower features red, amber, and green LED modules for easy visual status monitoring. Multiple light patterns are available, including flashing, triple flash, rotation, and dimming, allowing the signal light to be configured for a wide range of industrial automation and equipment monitoring requirements.
Modular Industrial Signal Tower Design
Built with a flexible modular design, the stack light can be easily customized with additional LED units and sound modules to suit specific machine signalling requirements. The tier securing screws provide added durability and help ensure a secure assembly in demanding operating environments.
A 24V DC rated voltage and convenient flying lead connection make this stack light suitable for integration with industrial control systems, machinery, production lines, and automated equipment. The off-white housing provides a clean, professional appearance while the high-visibility LED modules deliver clear status indication.
Key Features
- 100mm industrial stack light with 3 LED tiers
- Red, amber, and green LED signal modules
- IP69K washdown-safe protection
- Dustproof design resistant to high-temperature, high-pressure washdown
- Light patterns include flashing, triple flash, rotation, and dimming
- 24V DC rated voltage
- Direct-mount installation
- Flying lead connection
- Modular design for easy customization
- Compatible with additional LED and sound modules
- Durable tier securing screws
- Professional off-white housing
This IP69K LED stack light is a reliable choice for industrial machinery, automated production equipment, manufacturing systems, food processing environments, and other applications requiring durable and highly visible machine status signalling.
| Technical Specifications | |
|---|---|
| Manufacturer | Patlite |
| SKU | LR10-302WJNW-RYG |
| Model | LR10-302WJNW-RYG |
| Series | LR10 |
| Operating Ambient Temperature | -20°C to +50°C |
| Operating Humidity Range | 90% RH maximum (non-condensing) |
| Storage Temperature Range | -30°C to +60°C |
| Storage Humidity Range | 90% RH maximum (non-condensing) |
| Mounting Location | Indoor and outdoor use |
| Mounting Direction | Upright or inverted |
| Protection Rating | IP69K |
| Environmental Conditions | Upright position |
| Insulation Resistance | >1 MΩ at 500V DC between power input lead and chassis |
| Withstand Voltage | AC 500V for 1 minute between terminals and chassis without insulation breakdown (M2: AC 1500V for 1 minute) |
| Conformity Standards | UL 508, CSA C22.2 No. 14, FCC Part 15 Subpart B Class A, RoHS (EN 50581), EMC (EN 61000-6-4, EN 61000-6-2) |
| MPN | LR10-302WJNW-RYG |
