Atlas Copco8431 0269 34

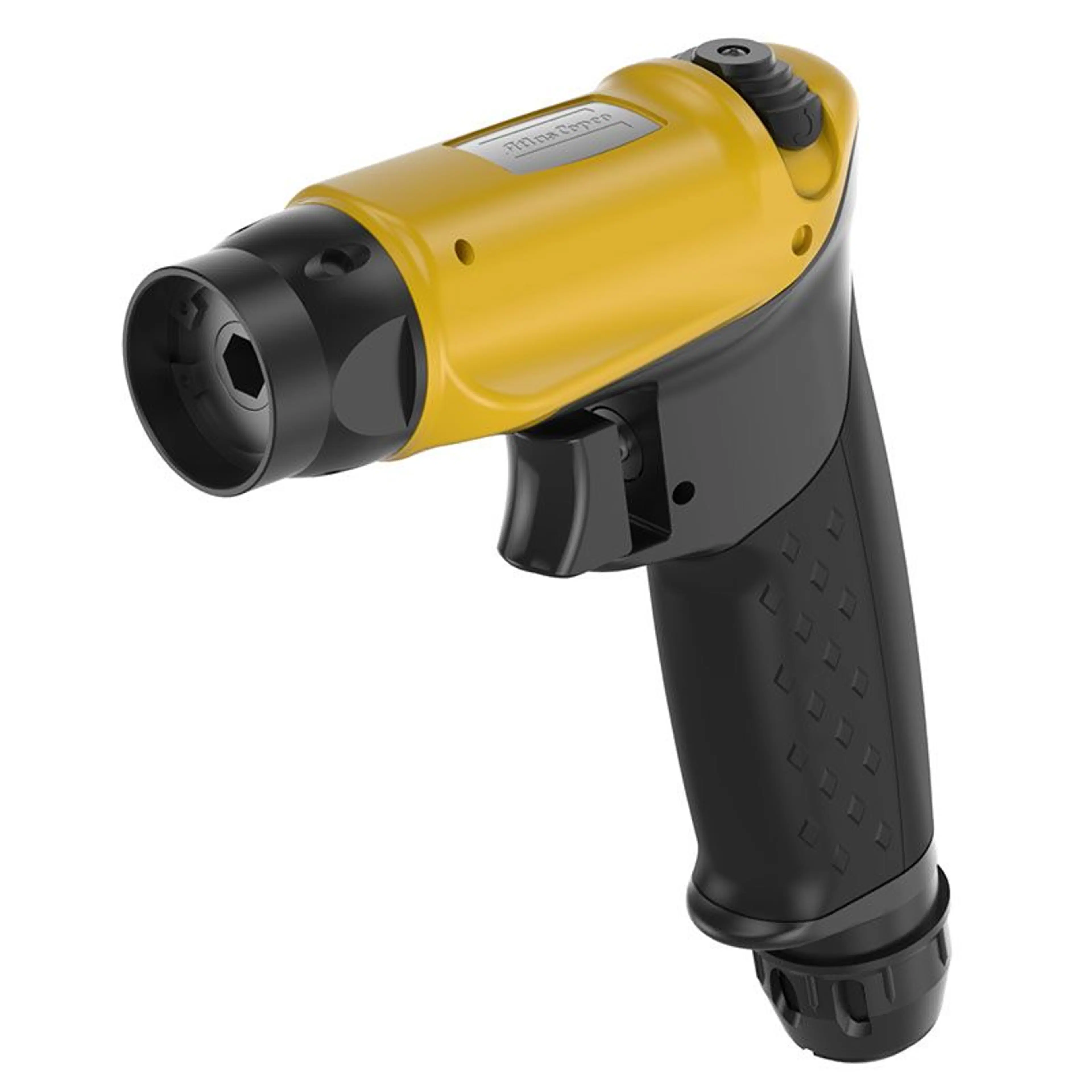

LUM12 HRF8 | Pneumatic Screwdriver, 1.5 - 8 Nm, 500 rpm
The workhorse of Atlas Copco's pneumatic screwdriver line-up. Designed to be comfortable to work with all day and to be durable in a tough production environment, they combine the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8431 0269 34 | LUM12 HRF8 | Pneumatic Screwdriver, 1.5 - 8 Nm, 500 rpmLUM12 HRF8
Price on request
Recommended Accessories
5 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
The LUM pistol grip range comes in several different configurations:
- HR: Model with non-balanced grip can be used with high grip when feed force is needed or with low grip for minimal reaction force.
- HRX: Model with balanced grip perfectly balanced for standard pistol grip applications.
- HRF: Balanced grip with multiple air inlets for fl exible connection.
- The LUM32 model has the highest force to weight ratio amongst the pneumatic screwdrivers. It is also a tool with low reaction force and fast shut-off because of the position of the clutch. RE reporting models are available, designated with suffi x –RE. Soft stop options are available, designated with the suffi xSS.
| Technical Specifications | |
|---|---|
| airinletthread | 1/8 in |
| csdistance | 16 mm |
| length | 200 mm |
| outputsize | 1/4' |
| recommendedhosesize | 6 mm |
| weight | 1.5 lb |
| modeltype | Pistol multiple air-inlet balanced |
| outputtype | Hexagon, Female |
| shutoff | Shut-off |
| starttrigger | Trigger lever |
| torquerangemax | 8 Nm |
| torquerangemin | 1.5 Nm |
| torquerangesoftjointmax | 8 Nm |
| torquerangesoftjointmin | 1.5 Nm |
| freespeed | 500 r/min |
| airconsumptionatfreespeed | 6 l/s |
| maxworkingpressure | 100 psi |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LUM12 HRF8 |
| Features & Benefits | |
| Balanced grip with multiple air inlets for flexible connection. | |
| Equipped with a spring-operated shut-off clutch | |
| Superior ergonomics | |
| Reversible | |
