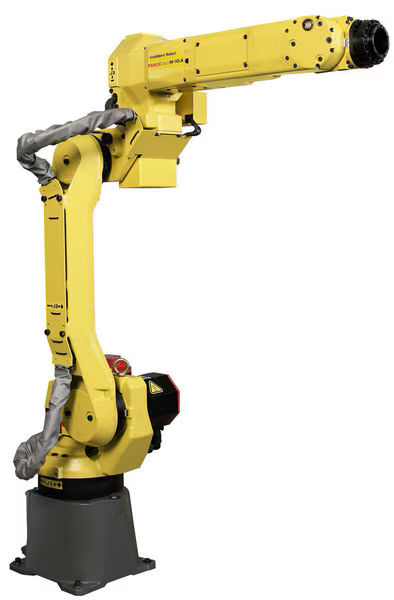

M-10iA
The M-10iA Fanuc Robotics Series offers a high flexibility for applications up to 10 kg payloads. These Fanuc automation robotic tools offer high speeds for handling, pick & place and machine tending operations.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
1 itemOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Price | Qty | |
|---|---|---|---|
 M-10iAM-10iA | 6 Axis, 10 kg Small Payload Robot, 1420 mm reach | 1 | View details |
Details
Product information
Overview
The M-10iA Series offers a high flexibility for applications up to 10 kg payloads. These Fanuc automation robotic tools offer high speeds for handling, pick & place and machine tending operations.
BEST PAYLOAD AND INERTIA IN ITS CLASS
- Best payload in its category, up to 10 kg
- Ideal for loading and unloading applications
- High allowable wrist moments and inertias for complex tools and mounting
- Ability to handle tools at high speed
INTEGRATED CABLE AND SLIM HOLLOW WRIST
- Hollow Wrist (50 mm diameter) and cantilevered J3 arm
- Slimmest wrist interference radius (110 mm) in its class, easier access into narrow spaces
- Cable and hoses routed through J3 arm and wrist axis J6
- The internal dress package also makes it extremely easy to operate and maintain, and ensures a longer cable life
- No risk of collisions and cable interference inside machines, maximized tool rotation range
SINGLE CABLE BETWEEN ROBOT AND CONTROLLER
- faster installation
- reduced spare parts
- easier maintenance
SLIM ARM AND WRIST ASSEMBLY
- Allows the robot to access and manoeuvre in confined work area
- Reduces the need of the robot to exit the work area to reorientate the tool; no decrease of performance
STANDARD AIR AND ELECTRICAL CONNECTIONS PROVIDED TO AXIS J3
Integrated air and electrical services from J1 to J3
- Short connections to tool
- Increased wiring reliability
- Proven reliability (factory built)
FLOOR CEILING ANGLE AND WALL MOUNTING METHOD
- Easier access to the machine being serviced
- Easier access to the parts load/unload area
- Allows maximised use of the robot work envelope
- Some restrictions exist for the angle and wall mounting
WRIST AND J4 ARM IP67
- Waterproof wrist can be immersed into water
- Improved reliability in dusty environments
- Suitable for water jet and die cast applications
ADDITIONAL MOUNTING FACILITY ON J3 ARM
Close mounting of gripper control valves providing a quicker gripper response.
MOTORS DIRECTLY COUPLED TO THE REDUCER
- Simplified mechanical unit
- Reduced breakdown risk
- Compact and reliable solution
- High accuracy and minimum backlash
| Features & Benefits | |
|---|---|
| Maximum Reach: 1632 mm | |
| Maximum Payload: 10 Kg | |
| Repeatability: ± 0.08 mm | |
| Call Or Email Us For A Quote | |
| Repeatability: ± 0.08 mm,Call Or Email Us For A Quote |
