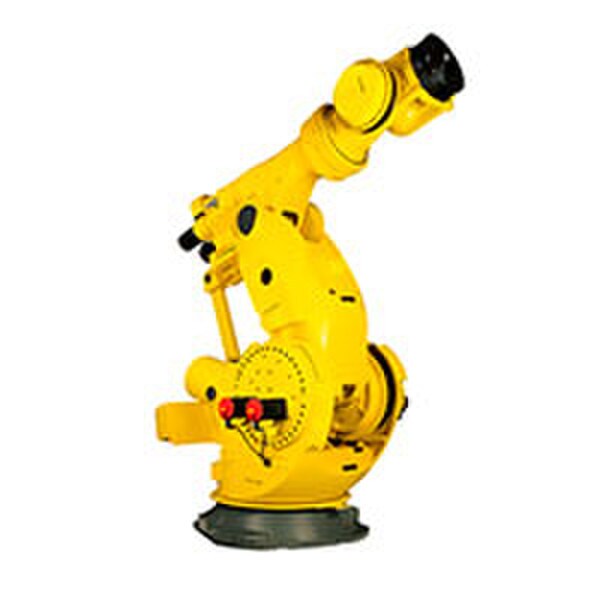

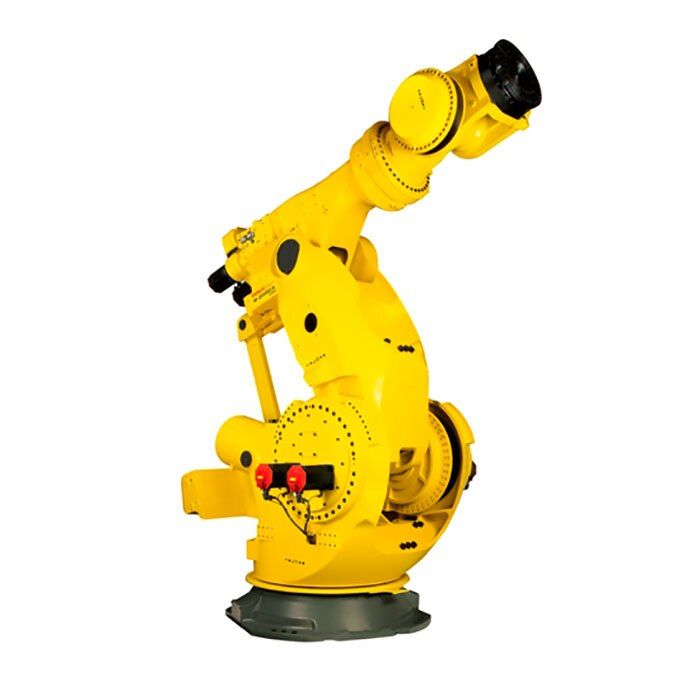

FANUCM-2000iA/2300
6 Axis, 2300 kg Heavy Payload Robot, 3734 mm reach
With its enormous 2.3 t payload, the M-2000iA/2300 is the biggest lifter in the range. Ideally suited to heavyweight material handling applications that require an even stronger wrist
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
M-2000iA/2300 | 6 Axis, 2300 kg Heavy Payload Robot, 3734 mm reachM-2000iA/2300
Price on request
Details
Product information
Overview
FANUC M-2000iA/2300
6 Axis, 2300 kg Heavy Payload Robot, 3734 mm reach
The M-2000iA is a super heavy payload robot, models can range in payload capacity between 900 - 2300 kg.
Features:
- Wrist can be used safely in adverse environments becasue it has IP67-equivelent resistance to environmental conditions (dust and liquids)
- Latest intelligent functions with iRVision (Integrated Vision) are available.
| Technical Specifications | |
|---|---|
| Application | Assembly, Pick/Pack/Palletizing, Material Removal, Spot Welding, Part Transfer, Dispensing |
| Model | M-2000iA/2300 |
| Manufacturer | FANUC |
| SKU | M-2000iA/2300 |
| Reach | 3734 mm |
| Installation | Floor |
| No. of Axis | 6 |
| Repeatability | 0.3mm |
| Payload | 2300 kg |
| Weight (kg) | 11000 |
| MPN | M-2000iA/2300 |
| Features & Benefits | |
| Able to easily lift and position an entire car or load bulky set castings onto machine fixtures. | |
| The M-2000iA/2300’s super-strong IP67 protected wrist, means it’s capable of lifting and holding an entire car from the side. | |
| Enhanced lifting capacity makes it great way of adding flexibility to your heavy material handling operations. | |
