FANUCM-20iA/12L
6 Axis, 12 kg Small Payload Robot, 2009 mm reach
M-20iA/12L | 6 Axis, 12 kg Small Payload Robot, 2009 mm reach
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
M-20iA/12L | 6 Axis, 12 kg Small Payload Robot, 2009 mm reachM-20iA/12L
Price on request
Details
Product information
Overview

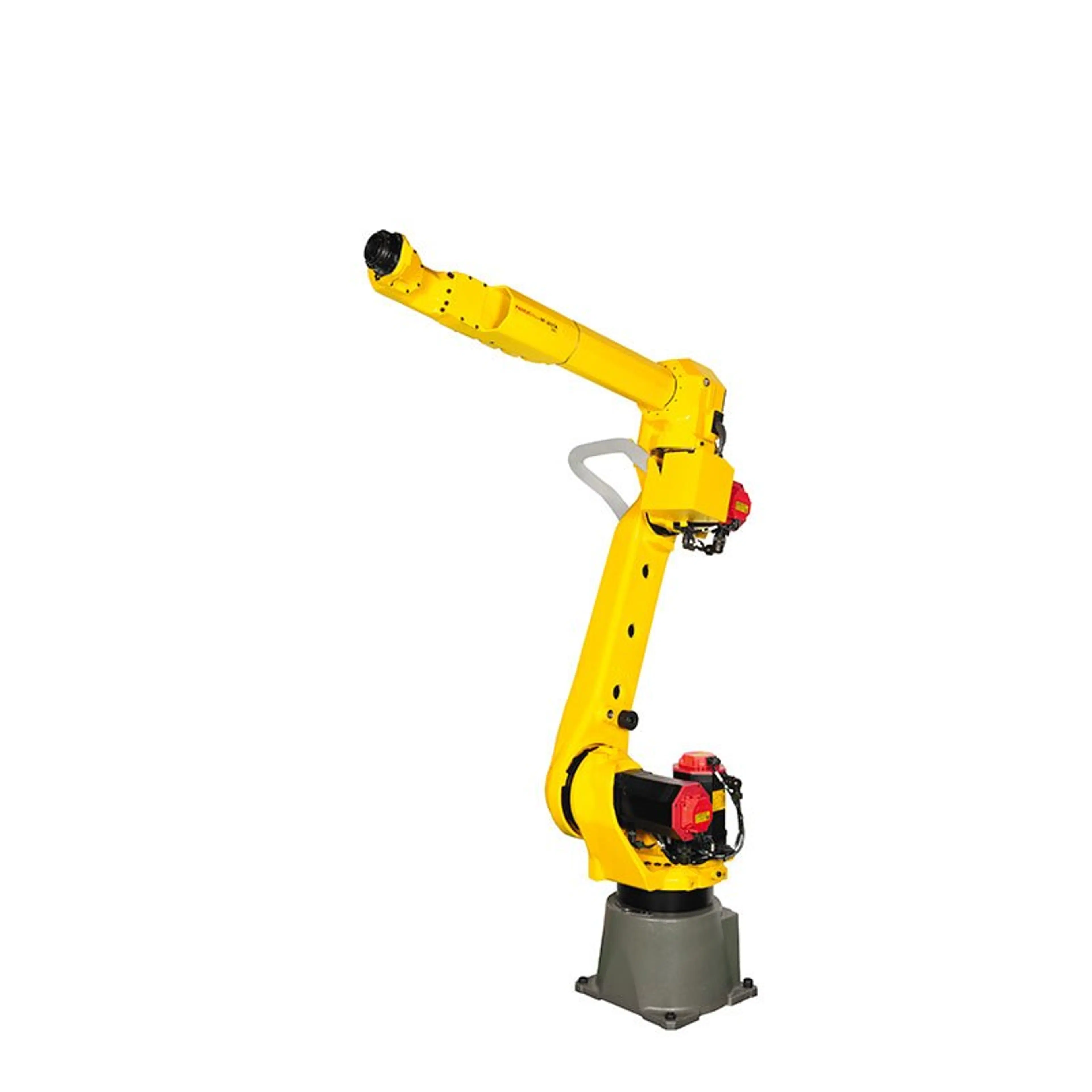

FANUC M-20iA/12L
6 Axis, 12 kg Small Payload Robot, 2009 mm reach
The M-20iA Series Robot is a light payload handling robot with a payload range of 7 - 35 kg.
Features:
- Two types of wrists are available - a hollow wrist allows for easy cable wiring; a high intertia wrist ideal for handling a large workpiece.
- Short, Standard, and Long arm variances are available.
- A highly rigid arm and advanced servo technology enable increased acceleration performance. This decreases cycle time; leading to higher productivity.
- Lastest intelligent functions with iRVision (Integrated Vision) are force sensor are available.
| Technical Specifications | |
|---|---|
| Application | Assembly, Picking/Packaging, Machining/Loading, Material Removal, Dispensing, Part Transfer |
| Model | M-20iA/12L |
| Manufacturer | FANUC |
| SKU | M-20iA/12L |
| Reach | 2009 mm |
| Installation | Floor, upside-down, angle |
| No. of Axis | 6 |
| Repeatability | 0.08 mm |
| Payload | 12 kg |
| Weight (kg) | 250 |
| MPN | M-20iA/12L |
