M-3iA

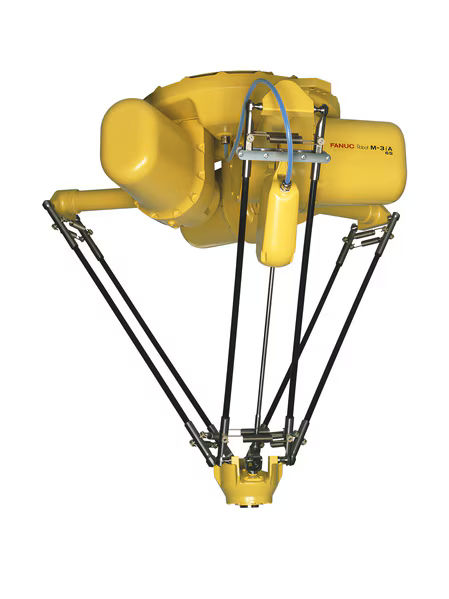

The M-3iA FANUC Robot is a 6kg payload high speed picking and assembly robot. The exclusive 6 axes type of parallel link robot expanded robotization of transferring and assembling application.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Details
Product information
Overview
FANUC Robot M-3iA is a 6kg payload high speed picking and assembly robot. The exclusive 6 axes type of parallel link robot expanded robotization of transferring and assembling application.
- Two models are available to meet a variety of applications.-
-FANUC Robot M-3iA/6S Total 4 axes robot including single axis rotation at wrist. This model is suitable for high speed picking of plenty of work pieces on the conveyor.
-FANUC Robot M-3iA/6A Total 6 axes robot including three rotation axes at wrist. This model can change wrist direction freely and suitable for assembling application.
- IP67 of enclosed mechanical unit realized reliable water and dust proof ability.
- Food adaptation option is available that adopts suitable material, high durability surface treatment and food grade lubricant. It will progress robotization of food market.
- The latest intelligent functions can be applied using vision sensor or force sensor.
| Features & Benefits | |
|---|---|
| Maximum Reach: 1350 mm | |
| Maximum Payload: 6 Kg | |
| Repeatability: ± 0.1 mm | |
| Call Or Email Us For A Quote | |
| Repeatability: ± 0.1 mm,Call Or Email Us For A Quote |
