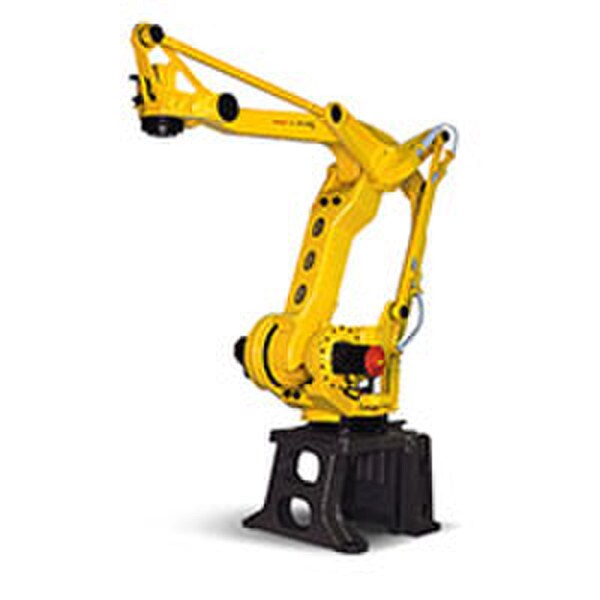

FANUCM-410iC/185
4 Axis, 185 kg Palletizing Robot, 3140 mm reach with Controller
This compact 4-axis model is your choice for high speed palletizing, assembly, machining and parts transfer applications
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
M-410iC/185 | 4 Axis, 185 kg Palletizing Robot, 3140 mm reach with ControllerM-410iC/185
Price on request
Details
Product information
Overview

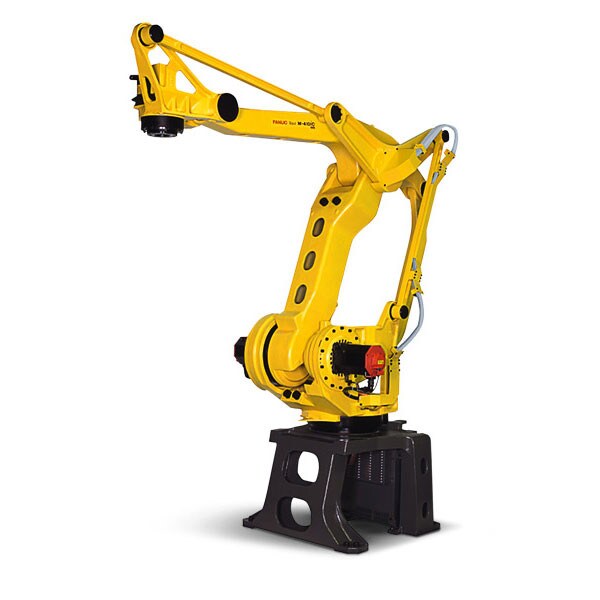

FANUC M-410iC/185
4 Axis, 185 kg Palletizing Robot, 3140 mm reach with Controller
The FANUC M-410iC Series Robot is the ideal intelligent solution for automation of palletizing systems.
Two models are available to meet the needs of speed and payload, M-410iC/185 and M-410iC/315
Two base variations available for enhanced flexibility.
- Pedestal base eliminates cabling operation, saves space with R-30iB controller underneath robot.
- Compact base minimuizes robot height for low ceiling placement or integration into existing systems.
Hollow wrist for reasy wiring to EOAT.
Easy integration of advanced features such as iRVision (Integrated Vision) and simulated programming with R-30iB Controller.
| Technical Specifications | |
|---|---|
| Application | Assembly, Palletizing, Dispensing, Pick/Packing, Load/Transfer |
| Model | M-410iC/185 |
| Type | Articulated |
| Manufacturer | FANUC |
| SKU | M-410iC/185 |
| Reach | 3143 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 4 |
| Repeatability | 0.5 mm |
| Payload | 185 kg |
| Weight (kg) | 1600 |
| MPN | M-410iC/185 |
| Features & Benefits | |
| Can handle a large gripper and heavy payload at maximum speed due to high allowable wrist movements and inertia. | |
| Slim arm and wrist assembly allows the robot to access and maneuver even in a confined work area. | |
