FANUCM-710iC/12L
6 Axis, 12 kg Medium Payload Robot, 3123 mm reach With Controller
Long arm small payload multipurpose robot. This new small to medium payload 6-axis model is ideal for all applications to handle medium payloads for up to 12 kg.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
M-710iC/12L | 6 Axis, 12 kg Medium Payload Robot, 3123 mm reach With ControllerM-710iC/12L
Price on request
Details
Product information
Overview

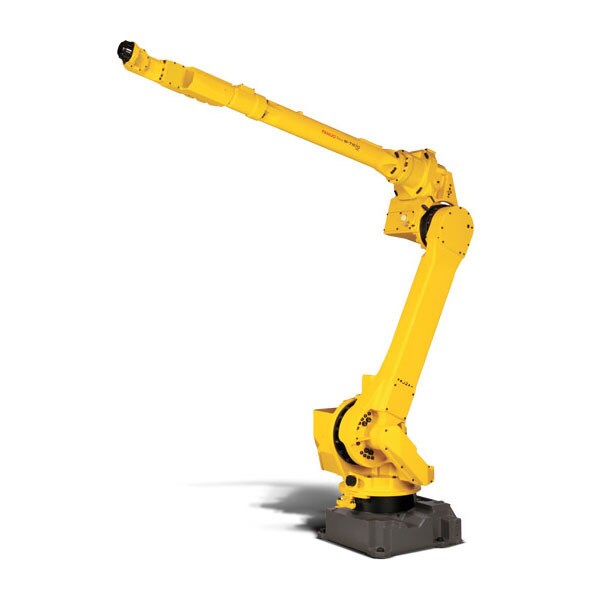

FANUC M-710iC/12L
6 Axis, 12 kg Medium Payload Robot, 3123 mm reach With Controller
The FANUC M-710iC is a medium payload robot with a wrist payload that can range between 12 - 70 kg.
The full cover of the M-710iC provides IP67-equivelent resistance to environmental conditions (dust and liquid).
The M-710iC is reliable for various applications, such as loading/unloading machined partsm de-burring and die cast loading.
| Technical Specifications | |
|---|---|
| Application | Assembly, Spot Welding, Load Transfer, Dispensing, Arc Welding, Pick/Pack/Palletizing, Material Removal |
| Model | M-710iC/12L |
| Manufacturer | FANUC |
| SKU | M-710iC/12L |
| Reach | 3123 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 6 |
| Repeatability | 0.15 mm |
| Payload | 12 kg |
| Weight (kg) | 540 |
| MPN | M-710iC/12L |
| Features & Benefits | |
| The perfect choice for sealing applications when working on car body interiors or other hard to reach areas. | |
| 6-axis versatility within a large envelope for loads not exceeding 12kg. | |
