CMM129H

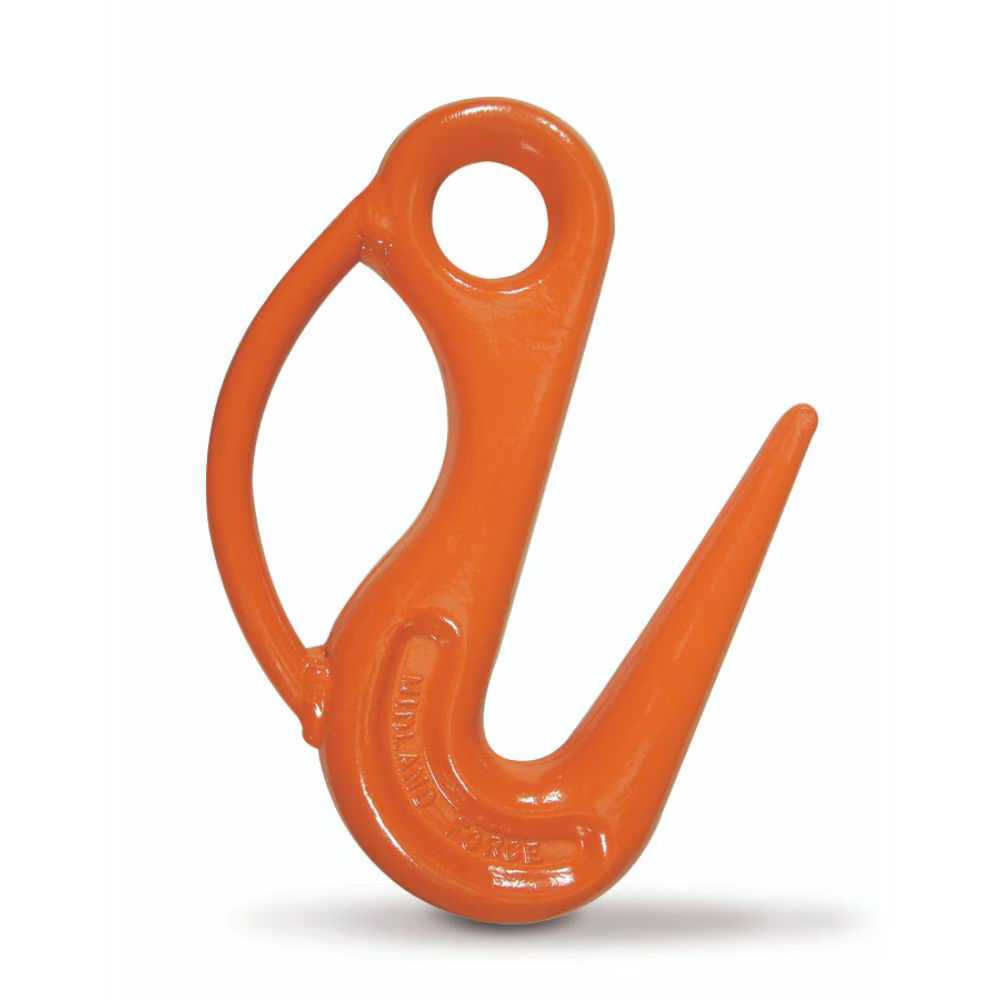

HOOK SORTING PTD-ORG W/HANDLE
-5:1 design factor -Quench and tempered alloy steel -Long tapered point designed for easy grab in rings, pear links, eye bolts or lifting holes -Durable orange powder coated finish -May be loaded within 1 in. of the tip. The working load limit with the load sitting in the bowl (or saddle of the the hook is 7-1/2 tons, whereas the working load limit is 2 tons if the hook is being loaded 1 in. from the tip. DO NOT LOAD THE LAST ONE INCH OF THE TIP.
$147.50List $184.37
Save $36.87Total$147.50Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
M129H | HOOK SORTING PTD-ORG W/HANDLEM129H
Total$147.50
1
Details
Product information
Overview
CM Sorting Hook (Grade 80) | HOOK SORTING PTD-ORG W/HANDLE
WLL: 7-1/2 Tons CM Sorting Hooks are designed to lift and move material with long narrow throat openings. Sorting hooks are 100% proof tested and are available with or without handles.
| Technical Specifications | |
|---|---|
| Model | M129H |
| Manufacturer | CM |
| Finish | Rust Veto |
| Length (In) | 1.28 |
| SKU | M129H |
| Grade | 800 |
| Weight (lbs) | 7 |
| Capacity (lbs) | 15000 |
| Capacity (tons) | 7 1/2 |
| MPN | M129H |
