Chicago PneumaticM180-230-K ATEX
M Motor, 1 .40 - 1 .83 kW, 230 RPM, Keyed Spindle, ATEX
Standard vane air motor
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
M180-230-K ATEX | M Motor, 1 .40 - 1 .83 kW, 230 RPM, Keyed Spindle, ATEXM180-230-K ATEX
Price on request
Details
Product information
Overview

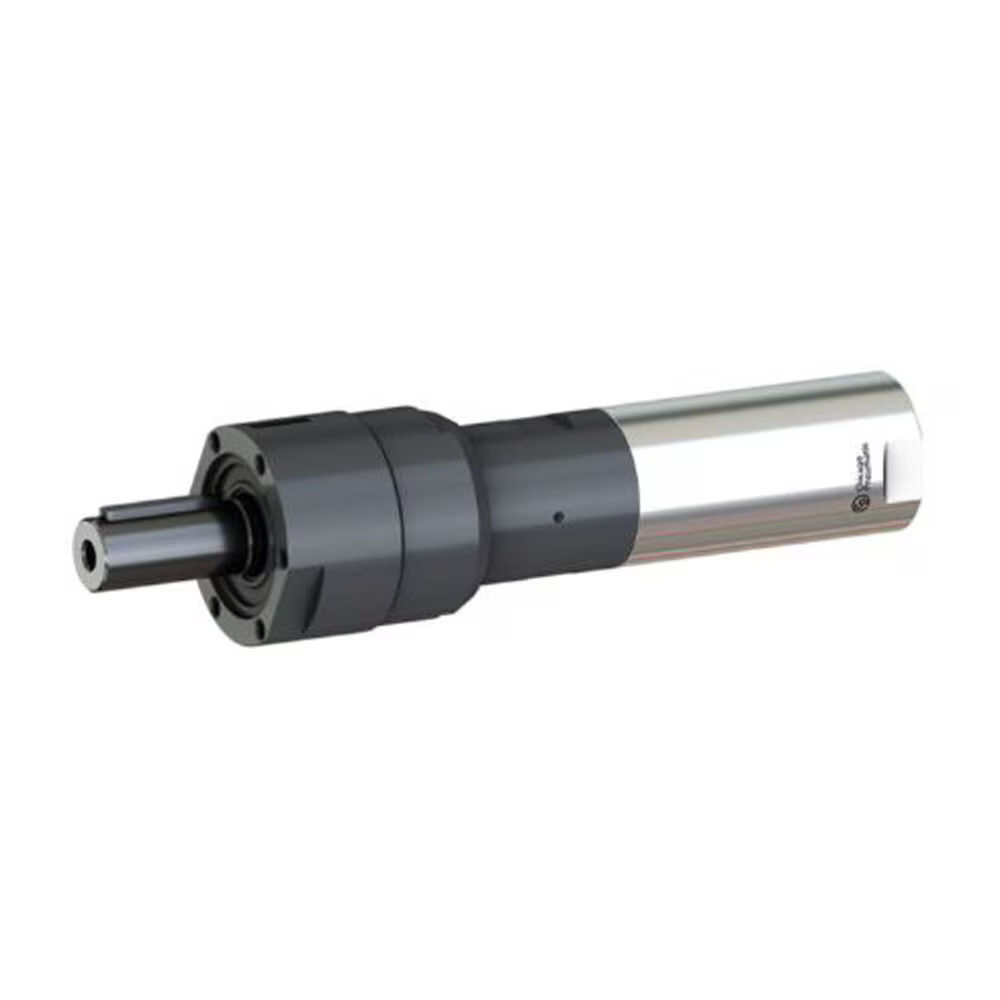

Chicago Pneumatic M180-230-K ATEX | M Motor, 1 .40 – 1 .83 kW, 230 rpm, Keyed Spindle, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | M180-230-K ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 230 |
| SKU | 2051479754 |
| Stock Code | 3 |
| Max Torque (Ft Lb) | 103 |
| Max Torque (Nm) | 139 |
| Rated Power (kw) | 1.8 |
| Weight (lbs) | 11.1 |
| Starting Torque (ft lb) | 151 |
| Stall Torque (ft lb) | 205 |
| Series | M183 |
| Air Cons. @ Load (cfm) | 72 |
| Rated Power (hp) | 2.41 |
| Stall Torque (Nm) | 278 |
| Weight (kg) | 5.1 |
| Air Consp. @ Free Speed (L/s) | 34 |
| MPN | M180-230-K ATEX |
