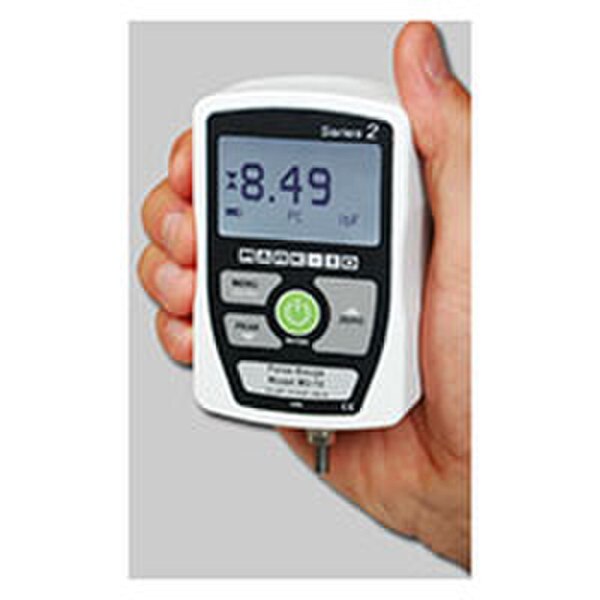

Mark-10M2-100
Digital Force Gauge, 100 lbF / 50 kgF / 500 N
An Economical Digital Force Gauge designed for basic tension and compression force testing. Peak tension and compression readings captured via ±0.5% accuracy and 500 Hz sampling rate.
$470.25List $495.00
Save $24.75Total$470.25Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
M2-100 | Digital Force Gauge, 100 lbF / 50 kgF / 500 NM2-100
Total$470.25
1
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 23-1031-223-1031-2 | M2-2/100 Attachments Kit$114.00 | $114.00 | 1 | View details |
 G1024G1024 | Extension rod, 5", #10-32F$19.00 | $19.00 | 1 | View details |
 G1025G1025 | Chisel point, #10-32F$19.00 | $19.00 | 1 | View details |
 G1026G1026 | Cone, #10-32F$19.00 | $19.00 | 1 | View details |
 G1027G1027 | V-groove, #10-32F$19.00 | $19.00 | 1 | View details |
 G1029G1029 | Flat head, #10-32F$19.00 | $19.00 | 1 | View details |
 G1038G1038 | Medium hook, #10-32M$14.25 | $14.25 | 1 | View details |
 G1039G1039 | Coupling, #10-32F/F$14.25 | $14.25 | 1 | View details |
Details
Product information
Overview
The M2-100 Digital Force Gauge by Mark-10 was designed for basic tension and compression force testing applications up to 100 lbF / 50 kgF / 500 N. Peak tension and compression readings captured via ±0.5% accuracy and 500 Hz sampling rate. Backlit graphic LCD displays the current, peak tension, or peak compression reading.
| Technical Specifications | |
|---|---|
| Model | M2-100 |
| Permissable Environmental Conditions | 40 - 100°F, max. 96% humidity, non-condensating |
| Overload Protection | 200% of full scale |
| Type | Digital Force Gauge |
| Manufacturer | Mark-10 |
| Warranty | 3 Year Warranty |
| Capacity | 100 lbF / 50 kgF / 500 N |
| Load Capacity | 100 lbF / 50 kgF / 500 N |
| SKU | M2-100 |
| Stock Code | 2 |
| Dimensions | 3.9 x 2.53 in |
| Weight (lbs) | 0.7 |
| Series | 2 |
| Capacity (lbs) | 100 |
| Accuracy | ±0.5% |
| MPN | M2-100 |
| Features & Benefits | |
| Calculates peak tension and compression values | |
| USB data output of continuous or individual data points | |
| 3 selectable units of measurement | |
| Ultra-compact, ergonomic housing | |
| Configurable default measurement unit and mode | |
| 500 Hz sampling rate | |
| Large, backlit graphic display with auto-dimming | |
| Powered by rechargeable battery or AC adapter | |
| Reversible housing for alternate load cell orientation | |
| Large | |
| backlit graphic display with auto-dimming | |
| Ultra-compact | |
| ergonomic housing | |
