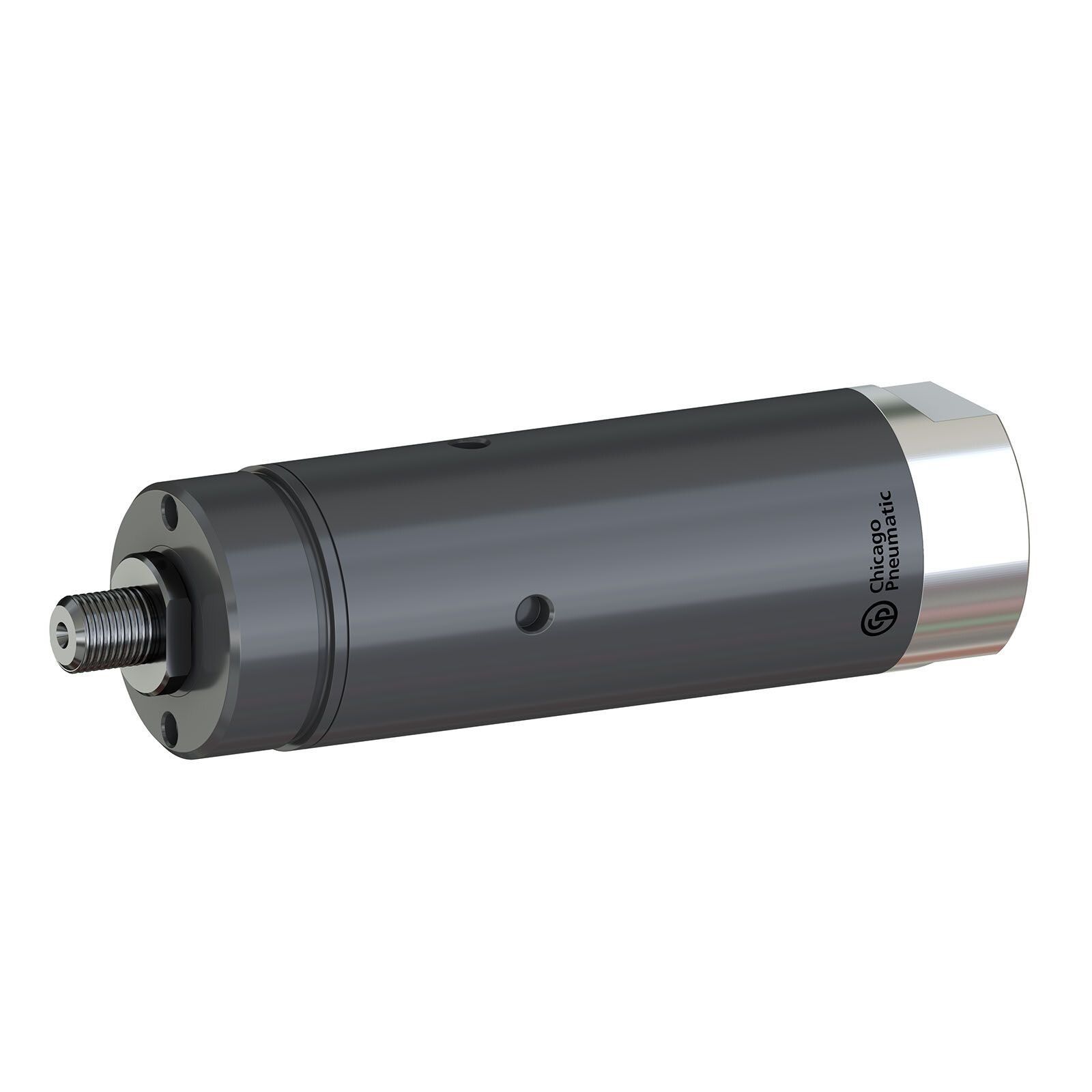

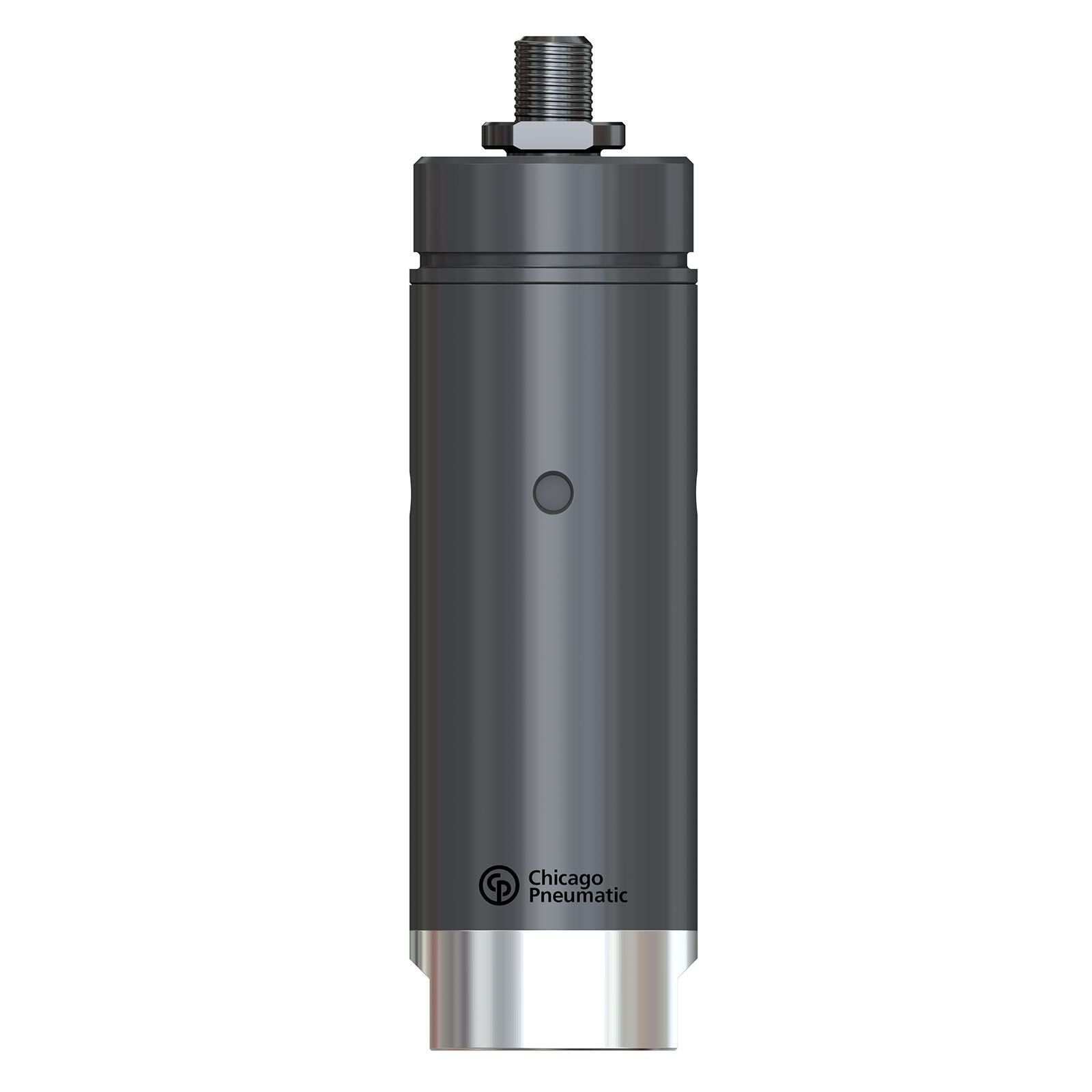

Chicago PneumaticM25-1040-TL ATEX
M Motor, 0.16 - 0.25 kW, 1040 RPM, Threaded Spindle, Oil-Free, ATEX
Standard vane air motor
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
M25-1040-TL ATEX | M Motor, 0.16 - 0.25 kW, 1040 RPM, Threaded Spindle, Oil-Free, ATEXM25-1040-TL ATEX
Price on request
Details
Product information
Overview
Chicago Pneumatic M25-1040-TL ATEX | M Motor, 0 .16 – 0 .25 kW, 1040 rpm, Threaded Spindle, Oil-Free, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | M25-1040-TL ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 1040 |
| SKU | 2051478334 |
| Stock Code | 2 |
| Max Torque (Ft Lb) | 3.9 |
| Max Torque (Nm) | 5.3 |
| Rated Power (kw) | 0.26 |
| Weight (lbs) | 1.65 |
| Starting Torque (ft lb) | 7.4 |
| Stall Torque (ft lb) | 7.8 |
| Series | M25-KL/TL |
| Air Cons. @ Load (cfm) | 11.2 |
| Rated Power (hp) | 0.35 |
| Stall Torque (Nm) | 10.6 |
| Weight (kg) | 0.75 |
| Air Consp. @ Free Speed (L/s) | 5.3 |
| MPN | M25-1040-TL ATEX |
