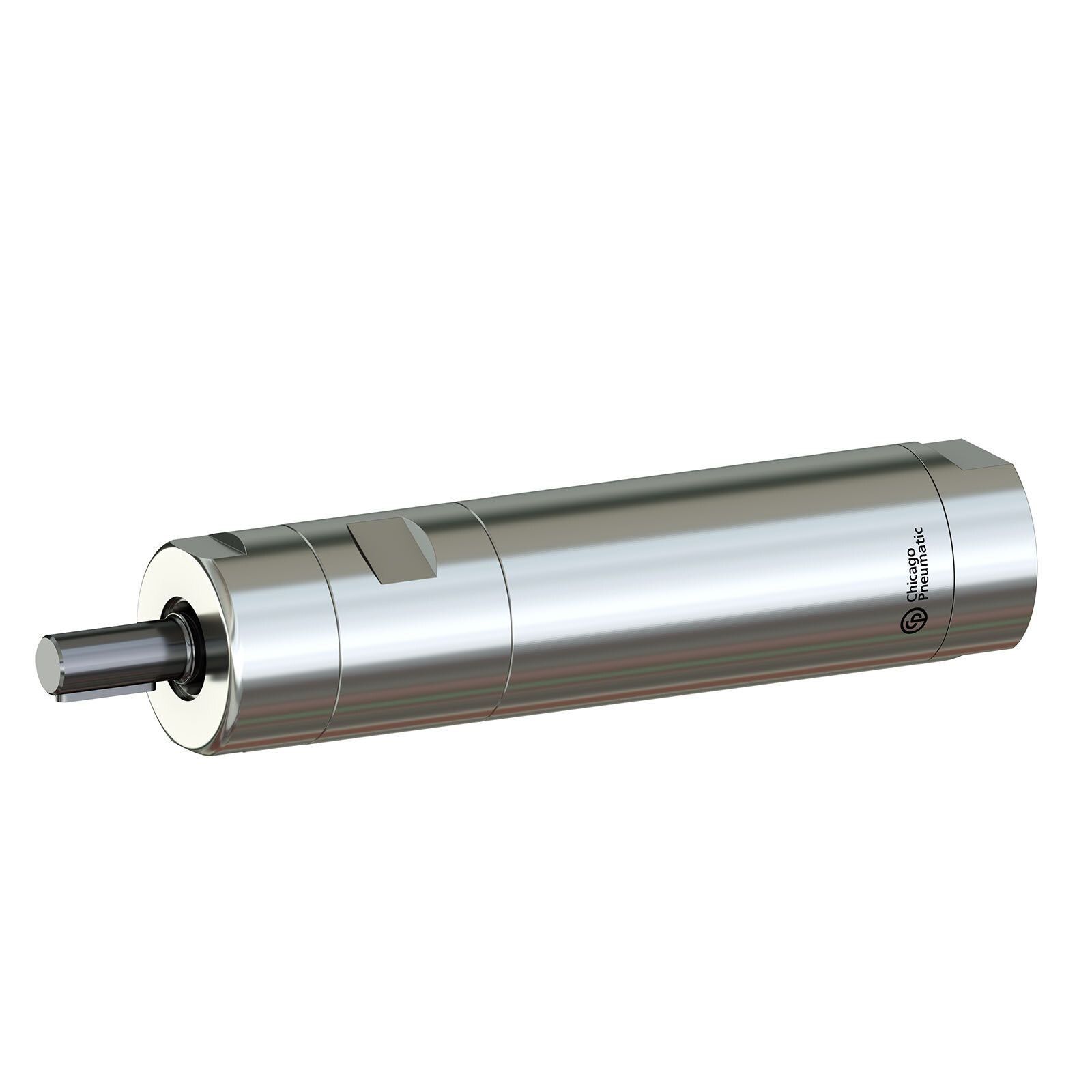

Chicago PneumaticM2501-5500-KSL ATEX
M Motor, 0.16 - 0.25 kW, 5500 RPM, Keyed Spindle, Stainless Steel, Oil-Free, ATEX
Stainless steel vane air motor
$2,819.87List $3,524.83
Save $704.96Total$2,819.87Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
M2501-5500-KSL ATEX | M Motor, 0.16 - 0.25 kW, 5500 RPM, Keyed Spindle, Stainless Steel, Oil-Free, ATEXM2501-5500-KSL ATEX
Total$2,819.87
1
Details
Product information
Overview
Chicago Pneumatic M2501-5500-KSL ATEX | M Motor, 0 .16 – 0 .25 kW, 5500 rpm, Keyed Spindle, Stainless Steel, Oil-Free, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | M2501-5500-KSL ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 5500 |
| SKU | 2051481334 |
| Stock Code | 2 |
| Max Torque (Ft Lb) | 7.1 |
| Max Torque (Nm) | 9.9 |
| Rated Power (kw) | 0.26 |
| Weight (lbs) | 1.56 |
| Starting Torque (ft lb) | 1.7 |
| Stall Torque (ft lb) | 14.2 |
| Series | M25-KSL |
| Air Cons. @ Load (cfm) | 11.2 |
| Rated Power (hp) | 0.71 |
| Stall Torque (Nm) | 19.8 |
| Weight (kg) | 0.71 |
| Air Consp. @ Free Speed (L/s) | 5.3 |
| MPN | M2501-5500-KSL ATEX |
